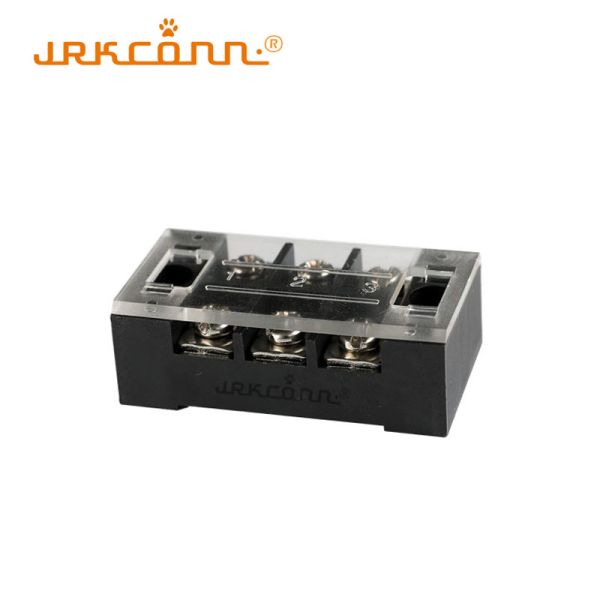

15A Rated Current 7.62mm Pitch PA66 Housing Barrier Terminal Block Screw Terminal Connector Block
15A Rated Current 7.62mm Pitch PA66 Housing Barrier Terminal Block Screw Terminal Connector Block
Specifications
Brand Name :
Jrkconn
Model Number :
JRK28SM
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Screws :
M3.Steel.Zinc plated
Operating Temperature :
-40°C to +105°C
Connectiontype :
Screw Clamp
Volt :
300V
Position :
2-24 Poles
Terminal :
Brass
Screws Material :
M3.Steel.Zinc plated
Rated Current :
15 Amps
Description
Terminal Screw Block 4Pin Screw Connector Block Barrier Terminal Blocks
A barrier terminal block (also called a barrier strip or screw terminal) is an electrical connector used to safely and securely join multiple wires together or to connect wires to a device, using metal screws as the clamping method. It is characterized by a solid insulating plastic body with metal clamps separated by raised plastic walls or barriers.
Key Advantages of 7.62mm Pitch Barrier Terminal Blocks
  • Safety: Barriers prevent shorts between adjacent connections
  • Reliability: Screw clamps provide strong, vibration-resistant connections suitable for high-current applications
  • Flexibility: Easy to add, remove, or change wires using only a standard screwdriver
  • Organization: Neatly organizes multiple connections in defined spaces
  • Tool Simplicity: Requires only a standard screwdriver for installation
  • High Power Capacity: Handles higher current and voltage than simpler connectors like wire nuts or IDC blocks
Common Applications
  • Industrial Control Panels (PLC Panels) for power, sensors, and actuators
  • Power Supply input and output connections
  • Motor Controllers and Drives for main power and control
  • Heating, Ventilation, and Air Conditioning (HVAC) equipment
  • Appliance Wiring in ovens and industrial machinery
  • Audio Equipment for robust connections in amplifiers and speakers
  • Electrical Distribution in sub-panels and junction boxes
Technical Specifications
Model Number JRK28SM Pin Header Brass, Tin plating
Type Barrier Blocks Housing Material Polyamide (PA66), Nylon 6/6
Pitch 7.62 mm Rated Voltage 300V
Number of Poles 2P-24P Withstanding Voltage AC 2000V / 1Min
Screws Material M3, Steel, Zinc Plating Rated Current 15A
Wire Range 22-14 AWG Max. Torque Value 8kg.cm
Temp Range -40℃ ~ +105℃ Mounting Type Through Hole
Color Black Application Industrial Control Systems, HVAC Systems, Power Supply, Transportation, Consumer Electronics, Telecommunications
Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.
Technical Drawing of Barrier Terminal Block JRK28SM
15A Rated Current 7.62mm Pitch PA66 Housing Barrier Terminal Block Screw Terminal Connector Block
Manufacturing Advantages
  • 15+ Years Experience: Specialized in electronic connectors, headers, sockets, and customized solutions
  • Complete Production Facility: Fully equipped for stamping, injection molding, assembly, and quality control
  • Customization Support: Standard and OEM/ODM products tailored to customer requirements
  • Quality Certified: ISO9001 & ISO14001 certified for reliable performance
  • Global Distribution: Products supplied worldwide with major electronics exhibition participation
  • Versatile Applications: Solutions for industrial control, communications, medical devices, robotics, displays, and consumer electronics
Manufacturing Process
15A Rated Current 7.62mm Pitch PA66 Housing Barrier Terminal Block Screw Terminal Connector Block
Frequently Asked Questions
  • Can I have a sample order before placing a purchase order?
    Samples are available for testing; customers pay only the express courier cost.
  • What is the sample lead time?
    Standard samples take 3-7 working days; customized samples take 7-15 working days.
  • Do you have any MOQ Limit?
    Low MOQ available; 1 piece for sample checking.
  • Can I make personalized/customized products?
    Yes, we accept custom orders based on your drawings or samples.
  • How do you ship the goods, and how long does it take?
    We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
