8.25mm Barrier Blocks JRK35C Screw Terminal Connector With 20A Current
8.25mm Barrier Blocks JRK35C Screw Terminal Connector With 20A Current
Specifications
Brand Name :
Jrkconn
Model Number :
JRK35C
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
Contact Us
Price :
Contact us
Payment Terms :
T/T,MoneyGram,D/P,D/A,L/C
Supply Ability :
1000000 per week
Delivery Time :
7-14 working days
Packaging Details :
PE Bag Packaging
Pitch :
8.25 mm
Poles :
2P-24P
Current Rating :
20 Amp
Insulator Material :
PA66, UL94V-0
Material of Pin Header :
Brass, Tin Plating
Wire Gauge :
22-14 AWG
Description
8.25mm Barrier Blocks JRK35C Screw Terminal Connector With 20A Current
High-quality 8-way screw barrier terminal block connector designed for reliable electrical connections in demanding industrial applications.
Key Characteristics
  • Insulating Barriers: Physical walls between terminals improve electrical isolation and increase safety.
  • Screw-Clamp Connection: Wires are secured using screws, ensuring strong mechanical retention and stable electrical contact.
  • High Current Capability: Suitable for power distribution and industrial electrical systems.
  • Durable Construction: Designed to withstand vibration, heat, and long-term operation.
  • Flexible Wiring Options: Accommodates a wide range of wire sizes and configurations.
Technical Specifications of 8.25mm Barrier Terminal Block
Model Number JRK35C Pin Header Brass, Tin plating
Type Barrier Blocks Housing Material Polyamide (PA66), Nylon 6/6
Pitch 8.25 mm Rated Voltage 300V
Poles 2P-24P Withstanding Voltage AC 2000V / 1Min
Screws Material M3, Steel, Zinc Plating Rated Current 20A
Wire Range 22-14 AWG Max. Torque Value 8kg.cm
Temp Range -40℃ ~ +105℃ Mounting Type Through Hole
Color Black Application Industrial Control Systems, HVAC Systems, Power Supply, Transportation, Consumer Electronics, Telecommunications
Note: The actual product color may vary slightly from images due to monitor settings. All measurements are taken manually and may have slight deviations.

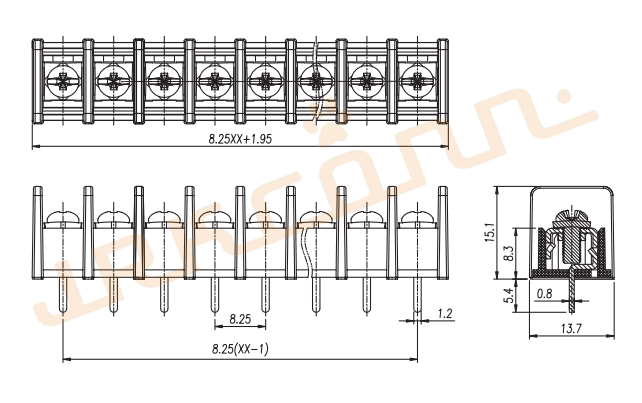

Technical Drawing of JRK35C
8.25mm Barrier Blocks JRK35C Screw Terminal Connector With 20A Current
Manufacturing Process
8.25mm Barrier Blocks JRK35C Screw Terminal Connector With 20A Current
Packaging & Delivery
Selling Units Package Port
Single item PE bag + carton box packing Shenzhen
Quantity (pcs) Samples Estimated delivery time (business day)
1 - 100K 3 ~ 7 15
Why Choose JRKCONN?
  • Over 13 years of specialized experience in terminal block production with deep industry knowledge and refined manufacturing processes.
  • Strict 100% inspection policy for all products before shipment, guaranteeing reliability and performance.
  • One-stop service simplifies your supply chain and saves valuable time and costs.
  • Expert technical support and custom technical drawing assistance for tailored solutions.
Frequently Asked Questions
Q: Can I have a sample order before placing a purchase order?
A: Samples are available for testing; customers pay only the express courier cost.
Q: What is the sample lead time?
A: Standard samples take 3-7 working days; customized samples take 7-15 working days.
Q: Do you have any MOQ Limit?
A: Low MOQ available; 1 piece for sample checking.
Q: Can I make personalized/customized products?
A: Yes, we accept custom orders based on your drawings or samples.
Q: How do you ship the goods, and how long does it take?
A: We ship via DHL, UPS, FedEx, TNT, or your freight forwarder, typically arriving in 3-7 days.
