Precision 10 Layer Half Hole PCB With Castellated Edge Connectors High Density Interconnect
Precision 10 Layer Half Hole PCB With Castellated Edge Connectors High Density Interconnect
Precision 10 Layer Half Hole PCB With Castellated Edge Connectors High Density Interconnect
Precision 10 Layer Half Hole PCB With Castellated Edge Connectors High Density Interconnect
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Price :
negotiate
Surface Finish Options :
HASL, ENIG, OSP, Immersion Tin, Immersion Silver
Certification :
ISO9001
Place of Origin :
China
Brand Name :
Jiaqing Circuit
Thermal Conductivity :
Enhanced via copper mass
Delivery Time :
15-30 Days
Layer Count :
1 – 10 layers
Operating Temperature :
-20°C to +130°C
Description

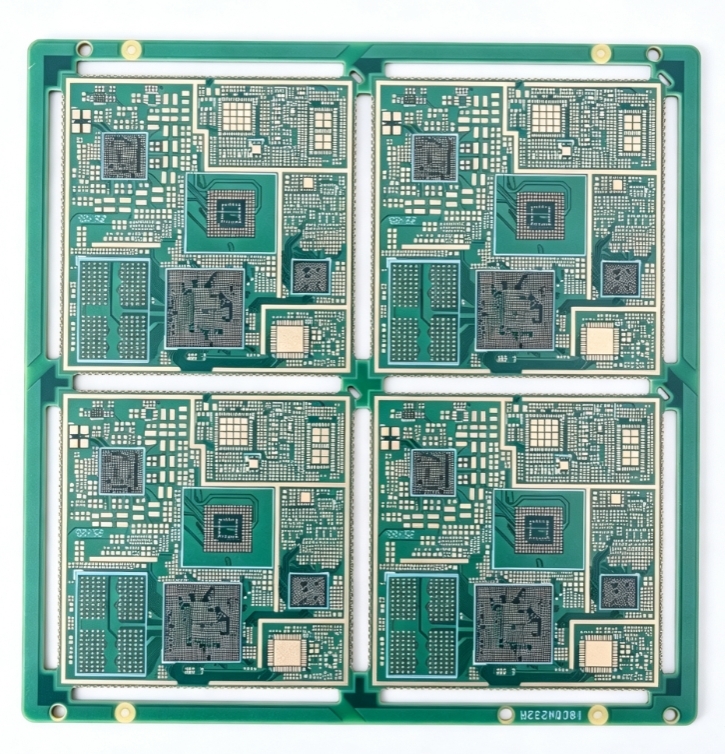

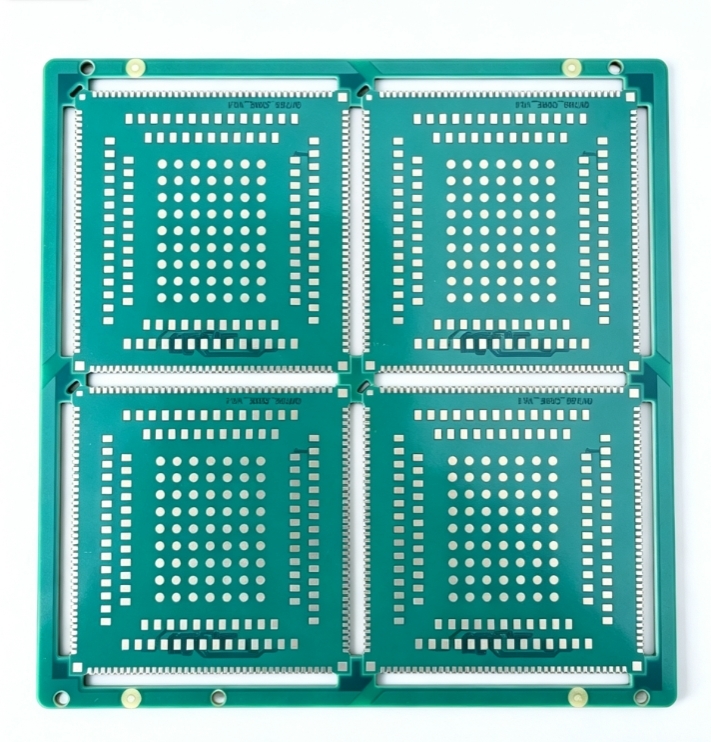

The 10-layer half-hole PCB (castellated PCB)

The 10-layer half-hole PCB (castellated PCB) is a high-density interconnect board designed for module-to-board soldering applications where space efficiency and signal integrity are critical. Plated half-holes positioned along the board edges serve as solderable connection pads, enabling direct surface mounting of the module onto a host PCB without bulky connectors. Manufactured with a 1.0mm to 2.0mm finished thickness and supporting fine-line geometries down to 50μm/50μm, this board is ideal for communication modules, sensor modules, and core-board/baseboard architectures. The 10-layer construction provides ample routing resources for complex digital, analog, and power distribution networks, while the half-hole edge connectors offer reliable mechanical and electrical interconnection.

Parameter Specification
Layer Count 10 layers (2+6+2 HDI structure available)
Board Thickness 1.0mm – 2.0mm (±0.1mm)
Material FR-4 / High Tg (TG150, TG170) / S1000-2
Minimum Line Width/Space 0.05mm (2mil/2mil)
Minimum Via Diameter Laser: 0.1mm / Mechanical: 0.2mm
Half-Hole Diameter ≥0.5mm (0.3mm precision available)
Half-Hole Position Accuracy ±5μm – ±0.03mm
Copper Thickness 1oz – 4oz (inner/outer)
Surface Finish Options ENIG, ENIG+OSP, HASL, Immersion Tin
Solder Mask Green, White, Black, Blue, Red, Yellow
Aspect Ratio 10:1 (through-hole)
