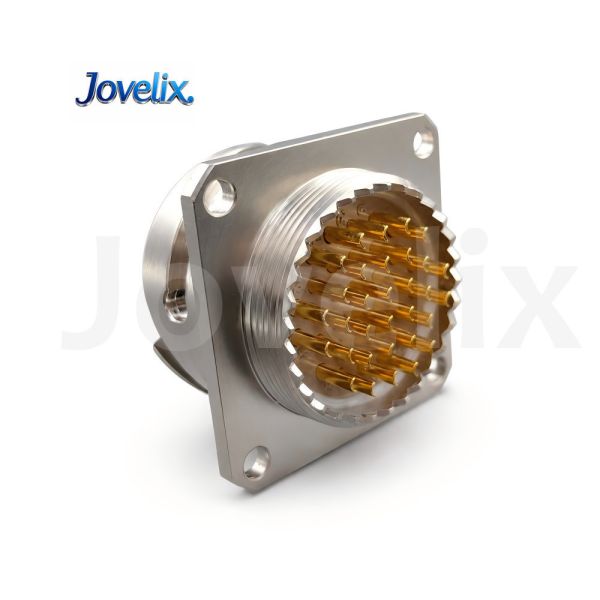

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector
PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector
PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector
PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector
PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector
PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector
PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector
PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector
Specifications
Contact resistance :
φ1.0 mm≤5mΩ;φ1.5 mm≤2.5 mΩ ;φ2.0 mm≤1.6mΩ
Supply Ability :
100,000pcs per month
Place of Origin :
China
Technical specification :
3EO 204063JT
MOQ :
10PCS
Mating cycles :
1000
Shock :
40g,multiple impacts
Brand Name :
Jovelix
Delivery Time :
2--9 weeks
Withstand voltage :
≥1850V
Insulation resistance :
≥1000 MΩ
Price :
10＄--150＄
Operating life :
1000 hours (minimum)
Ambient temperature :
-60℃ to+100℃
Vibration :
1-2000 Hz,30g
Model Number :
PM4-32-1K1B
Certification :
AS9001
Payment Terms :
L/C,T/T,Western Union
Packaging Details :
standard export package
Technical condition :
(TEO.364.196TY)
Description

PM4 Series Bayonet Quick-Connect Electrical Connector
PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

The PM4 series bayonet quick-connect electrical connector is designed for reliable electrical connection in both AC and DC circuits. This connector series provides stable performance, convenient operation, and secure mechanical locking for a wide range of electrical and electronic applications. It is manufactured to comply with the Russian specification TEO.364.196TY, ensuring that the product meets the required technical and structural standards for compatible equipment.

With its bayonet-type quick connection design, the PM4 connector allows fast mating and unmating while maintaining a firm and dependable connection after locking. This structure helps improve installation efficiency and reduces operation time during assembly, maintenance, and field use. The connector is suitable for applications where frequent connection, stable conductivity, and reliable circuit performance are required.

The PM4 series can be used in various AC and DC electrical systems, including industrial equipment, control devices, power distribution units, electronic instruments, and other electrical connection environments. Its practical structure, dependable connection performance, and standardized design make it a suitable choice for users requiring a durable and easy-to-operate electrical connector solution.

Localized Model: PM4

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

Insulator Contact Arrangement(Front View)

4-2

7-1

10-2

19-2

24-1

24-2

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

32-1

50-7

50-9

55-2

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

PM4-32-1K1B Flange Mount Circular Connector Plug 32 Core Industrial Connector

O

Ø1.0mm

G

Ø1.5mm

● 02.0mm
