Specifications
Mating cycles :
1000
Packaging Details :
standard export package
Vibration :
1_2000 Hz 30g
Supply Ability :
100,000pcs per month
Withstand Voltage :
≥1850v
Certification :
AS9001
Operating time :
minimum 100 hours
Technical Specification :
(ΓEO.364.196TY)
Payment Terms :
L/C,T/T,Western Union
Technical Regulation :
3E0 204 063JT
Price :
10＄--150＄
Shock :
Multiple times 40g
Place of Origin :
China
Brand Name :
Jovelix
Insulation Resistance :
≥1000MΩ
Model Number :
PM4-50-9J1B
MOQ :
10PCS
Delivery Time :
2--9 weeks
Ambient temperature :
_60℃ ~+100℃
Contact Resistance :
Φ1.0mm≤5mΩ Φ1.5mm≤2.5mΩ Φ2.0mm≤1.6mΩ
Warranty period :
7 years
Description
PM series bayonet quick-connect electrical connectors

Type P6M4 electrical connectors are used in AC and DC circuits and comply with Russian technical specifications ΓE0.364.196TY.

Localized model:PM4

  • Ambient temperature:_60℃ ~+100℃
  • Vibration:1_2000 Hz 30g
  • Shock:Multiple times 40g
  • Contact Resistance:Φ1.0mm≤5mΩ Φ1.5mm≤2.5mΩ Φ2.0mm≤1.6mΩ
  • Working Current, Working Voltage, Insertion and Extraction Force
  • Withstand Voltage: ≥1850v
  • Insulation Resistance:≥1000MΩ
  • Operating time: minimum 100 hours
  • Mating cycles: 1000
  • Warranty period: 7 years
  • Technical Specification :(ΓEO.364.196TY)
  • Technical Regulation :3E0 204 063JT

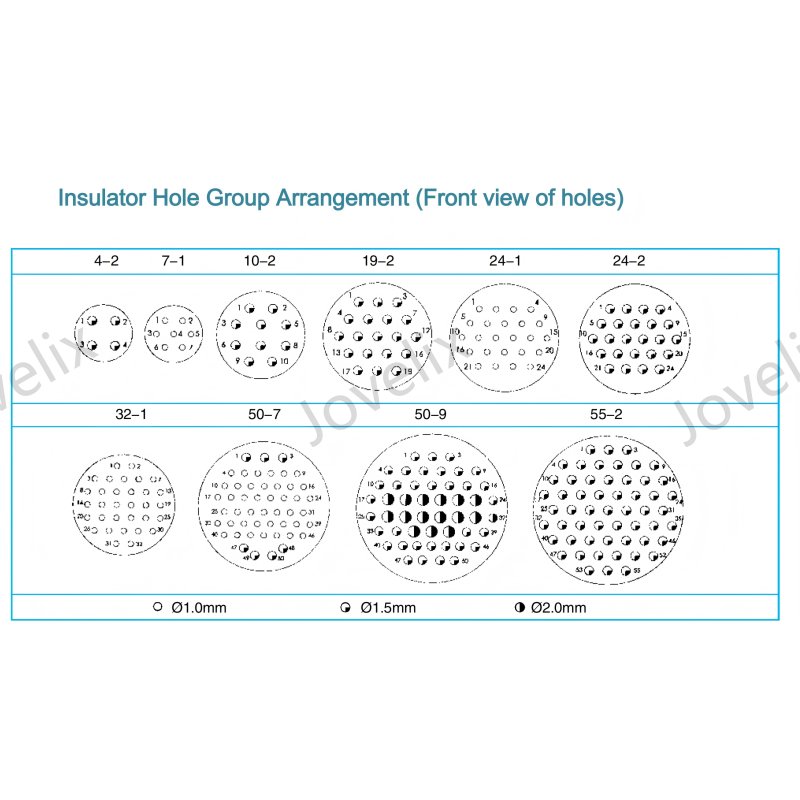

Contact Count / Combo No. Working Current A Working Voltage v Mating Force kg
7.1 5.8 560 0.25
4_2 12.5
10_2 8.3 0.30
24_1 4.2 0.35
19_2 5.8
32_1 3.32
24_2 6.0 0.4
50_7 3.6;5.1 560 0.6
50_9 4.5;7.0 700
55_2 5.1 560 0.9
