Specifications
Operating Temperature :
_60℃ ~+50℃(ShR)，_60℃ ~+150℃(2PT-A-T)
Impact acceleration： :
once 500g， multiple times 35g(ShR)
Delivery Time :
2--9 weeks
Model Number :
PR36J2A
Rated Operating Voltage :
≤850V(ShR);≤700V(2PT)
Vibration Resistance :
10g(ShR、5~2000Hz) ， 10g(2PTA,10~200Hz;2PTT, 10_1000Hz;)
Working life :
500 times plugging, 1000 hours
Certification :
AS9001
Packaging Details :
standard export package
Payment Terms :
L/C,T/T,Western Union
MOQ :
10PCS
Price :
10＄--150＄
Brand Name :
Jovelix
Place of Origin :
China
Supply Ability :
100,000pcs per month
Guarantee period :
7 years
Technical condition :
Q/3E 20007-2003
Description

PR36J2A is a high-performance circular electrical connector engineered for reliable signal and power transmission in demanding industrial environments. Available in both sealed and non-sealed configurations, the connector features a robust coupling mechanism that ensures secure mating, vibration resistance, and stable electrical performance. The receptacle is designed for equipment installation, while the plug assembly is optimized for cable integration, providing dependable connectivity for aerospace, industrial automation, communication, and harsh-environment applications.

Equivalent Localized Series:
P Series (Shan P)
PR-B Series (2PTT)

Technical Specifications

Operating Temperature:
-60°C to +50°C (P Series)
-60°C to +150°C (2PT-A-T Series)

Vibration Resistance:
10g, 5~2000Hz (P Series)
10g, 10~200Hz (2PTA)
10g, 10~1000Hz (2PTT)

Shock Resistance:
500g single shock
35g repeated shock resistance (P Series)

Rated Operating Voltage:
Up to 850V (P Series)
Up to 700V (2PT Series)

Key Features
  • High reliability circular interconnect design
  • Secure threaded coupling structure
  • Excellent resistance to vibration and mechanical shock
  • Suitable for harsh industrial and aerospace environments
  • Available in sealed and unsealed versions
  • Stable electrical performance with long service life
Rated current
∅1.5 ∅2.5 ∅3.5 ∅5.5 ∅9
10A 25A 50A 100A 200A

耐电压(withstanding voltage):1500VAC

Contact resistance
∅1.5 ∅2.5 ∅3.5 ∅5.5 ∅9
≤2.5mΩ ≤1mΩ ≤0.5mΩ ≤0.3mΩ ≤0.15mΩ

Working life: 500 times plugging, 1000 hours

Guarantee period: 7 years

Technical condition:山P C山P _ΓEO.364.107TY

山PΓ C山PΓ _ΓEO.364.108TY

2PTT_ΓEO.364.120TY

Technical condition:Q/3E 20007-2003

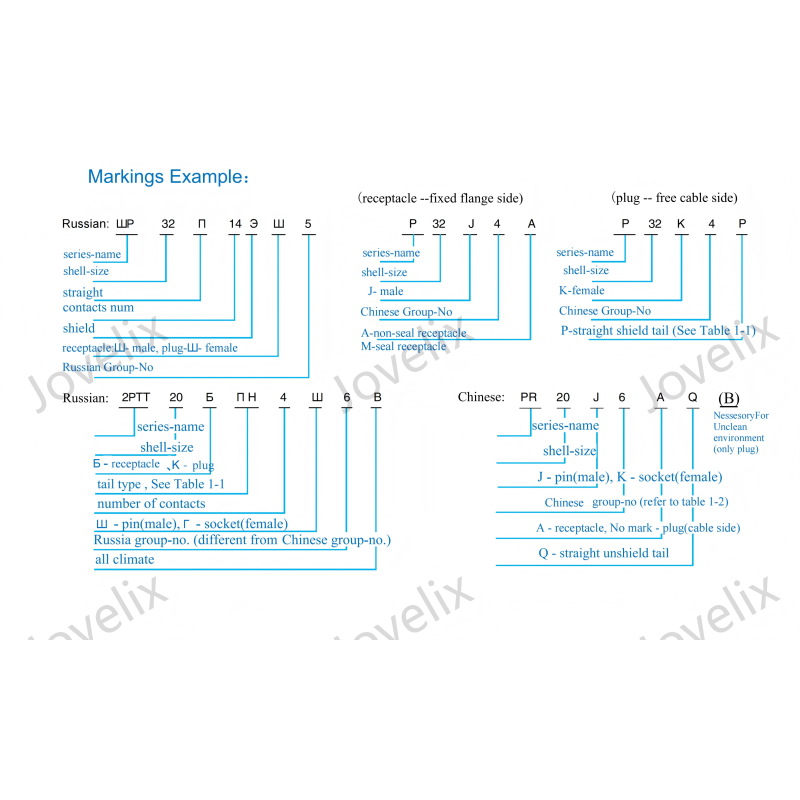

Markings Example
