OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
Specifications
Model Number :
OHS-BM-1-50-18-B1-2-B
Insulation resistance :
≥1000MΩ (under normal conditions)
Certification :
AS9001
Environmental temperature :
-60°C to 85°C
Brand Name :
Jovelix
Contact resistance: :
≤5mΩ
Packaging Details :
standard export package
Technical specifications :
БpO.364.030TY
MOQ :
10PCS
Delivery Time :
2--9 weeks
Impact :
1000g per impact, repeated multiple times with 100g each
Guarantee period :
15 years
Payment Terms :
L/C,T/T,Western Union
Mechanical lifespan :
250 insertion and removal cycles
Price :
10＄--150＄
Contact diameter :
Æ1.0mm
Supply Ability :
100,000pcs per month
Operating time :
5,000 hours
Place of Origin :
China
Vibration :
1_5000Hz 20g
Description
OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector

OHS Series Subminiature Electrical Connectors are small circular connectors used for stable circuit connection in DC and AC electrical systems. They are suitable for radio equipment, electronic instruments, control devices, and compact electrical equipment where limited space and reliable connection are required.

This series uses a bayonet locking structure, allowing quick mating and secure locking between the plug and receptacle. The design helps improve assembly efficiency and reduces the risk of loose connection during equipment operation or maintenance.

For the OHS-EC-1(2) configuration, the plug is designed without a rear accessory, while the receptacle is supplied with a straight plastic rear attachment for cable outlet support and protection. With compact size, practical structure, and reliable mating performance, the OHS series is suitable for compact electronic and electrical applications.

Operating current,Operating voltage:
Shell Number Number of contact points Single contact Operating current (A) Total current (A) Operating voltage(v)
10 4 3.7 15 250
12 7 3.1 22 250
14 10 3.0 30 250
18 19 2.1 40 250
22 32 1.8 60 250
27 50 1.5 75 250
Arrangement of insulator hole positions

Outline and Mounting Dimensions:

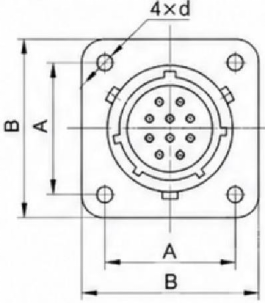

Receptacle without Rear Accessory (Pin Contacts)

OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 ContactOHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact

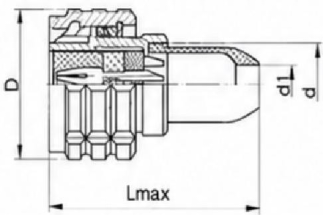

Plug with Rear Accessory (Socket Contacts)

OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact

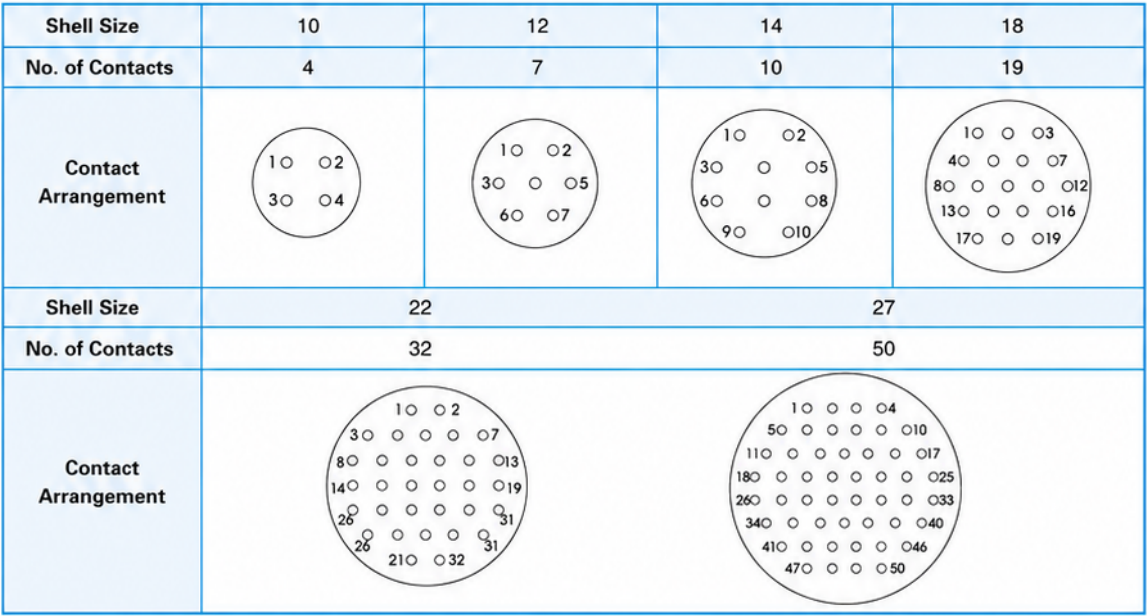

Insert Contact Arrangement

OHS-BM-1-50-18-B1-2-B OHS Series Subminiature Circular Electrical Connector 50 Contact
