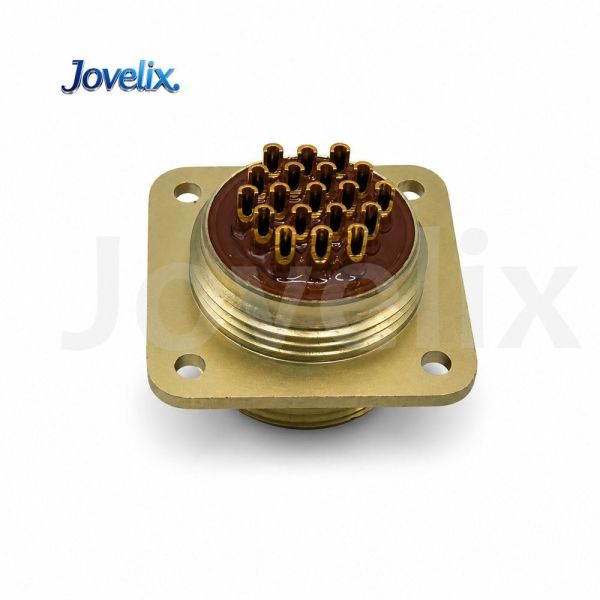

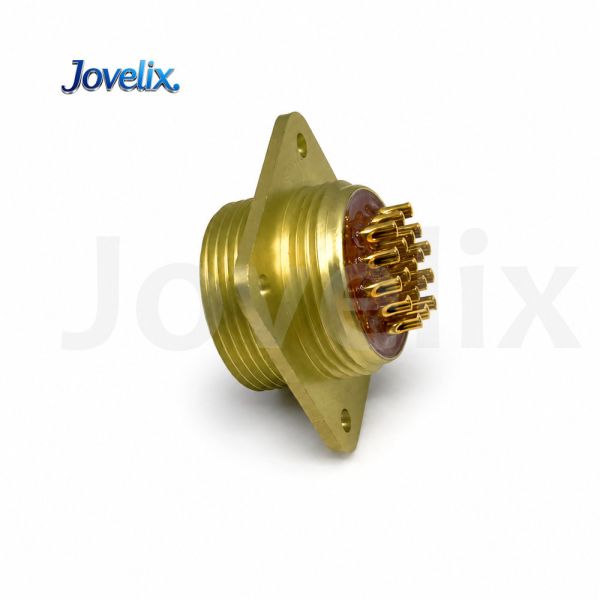

PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector
PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector
PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector
PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector
PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector
PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector
PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector
PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector
Specifications
Payment Terms :
L/C,T/T,Western Union
Service life :
15 years
Model Number :
PC19TB-SOCKET
Ambienttemperature :
-60℃ to +85℃
Technical specification :
3E0 204 062JT
MOQ :
10PCS
Certification :
AS9001
Price :
10＄--150＄
Place of Origin :
China
Vibration acceleration :
5-2500 Hz,PC 15g,PCΓ 18g
Dielectric strength :
1000V
Brand Name :
Jovelix
Delivery Time :
2--9 weeks
Insulation resistance :
≥ 1000 MΩ
Packaging Details :
standard export package
Operating voltage :
200V
PCMleakage rate :
Under a standard atmospheric pressure difference, the leakage rate isless than 0.1 Pa·cm²/s
lmpact acceleration :
PCrepeated 50g;PCΓ repeated 100g
Supply Ability :
100,000pcs per month
Contact resistance :
≤5 mΩ
Mating cycles :
250 cycles
Description

PC ultra-small connectors are used in radio and electrical equipment. They can connect equipment to cable by threaded coupling, and can also connect two pieces of equipment directly.

PC series ulra-small circular electrical connectors are used for circuit connections in radio and electrical equipment. A cable plug is connected to a receptacle mounted on the equipment by means of a threaded coupling nut. Two devices can also be interconnected directly through mating plug and receptacle mounted on the respective units.

The ultra-small circular connector is available in sealed and unsealed versions.

The plug and receptacle may be configured with optional backshells according to installation requirements. For this series, receptacles are fitted with pin contacts, while plugs are fitted with socket contacts.

PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector

Contacts Layout (viewed from the female side) Φ=1mm

PC19TB-SOCKET PC Series Russian Connector Threaded Circular Connector 19 Pin Socket Connector

Appearance and installation dimensions (mm)
Contact num D D1 d1 A B b
PC-4 M10*0.75 M10*0.75 2.2 11.8±0.1 16.5 1.4
PC-7 M12*0.75 M12*0.75 2.2 13.2±0.1 18 1.4
PC-10 M14*0.75 M14*0.75 2.2 15±0.1 20 1.4
PC-19 M18*0.75 M18*1 2.2 18±0.1 24 1.4
PC-32 M22*0.75 M22*1 2.7 21.5±0.1 28 1.8
PC-50 M27*0.75 M27*1 3.2 26±0.1 33 2.0
