Specifications
vibration: Acceleration :
40g(1-5000HZ)
Relative humidity :
30℃ ~60℃ 92%~98%
Technical conditions :
ΓEO.364.241TY
Salt spray resistance :
48-96h
Place of Origin :
China
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100,000pcs per month
Technical specification :
Q/3E20005-2003
AccelerationImpact :
Acceleration 500g(once);150g(multiple times)
insulation resistance :
≥5000MΩ
MOQ :
10PCS
Price :
10＄--150＄
Delivery Time :
2--9 weeks
Packaging Details :
standard export package
Certification :
AS9001
Brand Name :
Jovelix
Mechanical and working life :
500 times of insertion and extraction
Model Number :
ZH23-7-18-B-8-B
Ambient temperature :
-60°C ~ +200°C（toppest 200°C）
Description

ZH23-7-18-B-8-B Industrial Circular Electrical Connector Russian Series Connector

ZH23 Series Environment-Resistant Bayonet Connector

The ZH23 series connectors are engineered for harsh environments, providing reliable and secure connections with a quick bayonet locking mechanism and five-key anti-misalignment system. Contacts utilize a crimp design with rear-release and rear-removal capabilities, optimized for low-frequency AC and DC applications. These connectors are ideal for industrial, power, and automation systems where durability and precision are critical.

Domestic Alternative Model: ZH23

Key Technical Specifications:
  • Operating Temperature: -60°C to +200°C (peak 200°C)
  • Vibration Resistance: 40g, 1–5000 Hz
  • Shock Resistance: 500g single impact, 150g repeated impact
Highlights:
  • Quick bayonet locking for fast and secure mating
  • Five-key anti-misconnect design to prevent incorrect insertion
  • Rear-access contacts for easy maintenance and replacement
  • Engineered for industrial and harsh environmental applications
Working voltage:
Class working voltage(v) test volage(v)
A 700 2100
B 500 1850
C 400 1600
Contact current:
∅1.0 ∅1.5 ∅2.0
11A 20A 35A
contact resistance:
∅1.0 ∅1.5 ∅2.0
≤7.4mΩ ≤2.5mΩ ≤1.6mΩ
Technical Highlights:
  • Compliance: Technical Conditions ΓEO.364.241TY, Technical Specifications Q/3E 20005-2003
  • Salt Spray Durability: 48–96 hours, ensuring corrosion resistance
  • Humidity Resistance: Stable performance in 30°C–60°C and 92%–98% relative humidity
  • Insulation Resistance: ≥5000 MΩ for superior electrical isolation
  • Mechanical Life: Rated for 500 insertion/extraction cycles
  • Designed for harsh industrial and environmental conditions, providing long-term reliable connectivity
Marking Description
No. Meaning of Code Designation Russian designation Chinese designation
1 model CHU23 ZH23
2 contact number 3丶4丶7丶10丶19丶24丶28丶32丶41丶43丶45丶55丶61 3丶4丶7丶10丶19丶24丶28丶32丶41丶43丶45丶55丶61
3 shell size (mm) 14丶 18丶22丶24丶27丶30丶33丶36丶39 14丶 18丶22丶24丶27丶30丶33丶36丶39
4 contact type B pin --male P socket--female B
P		 B pin --male
P socket--female
5 Tail accessory and connector type code
details see following pages		 1 - Receptacle with simplified rear accessory
2 - Receptacle with straight cable-clamping rear accessory
4 - Receptacle with right-angle cable-clamping rear accessory
6 - Plug with straight cable-clamping rear accessory
8 - Plug with right-angle cable-clamping rear accessory
11 - Plug with simplified rear accessory
17 - Receptacle with Type 06 shielded right-angle rear accessory (memory ring)
18 - Plug with Type 06 shielded right-angle rear accessory (memory ring)
19 - Receptacle with Type 07 shielded simplified rear accessory
20 - Plug with Type 07 shielded simplified rear accessory		 21 - Receptacle with Type 08 shielded straight cable-clamping rear accessory
22 - Plug with Type 08 shielded straight cable-clamping rear accessory
12 - Receptacle with Type 09 thermoplastic sleeve-type rear accessory
25 - Receptacle with Type 10 shielded right-angle rear accessory
13 - Plug with Type 09 thermoplastic sleeve-type rear accessory
26 - Plug with Type 10 shielded right-angle rear accessory
15 - Receptacle with Type 05 shielded straight rear accessory (memory ring)
27 - Receptacle with Type 11 shielded right-angle cable-clamping rear accessory
16 - Plug with Type 05 shielded straight rear accessory (memory ring)
28 - Plug with Type 11 shielded right-angle cable-clamping rear accessory
6 Key position no-mark, standard position a丶σ 丶B丶r no-mark, standard position a丶b 丶c丶d
7 Climate conditions all weather B

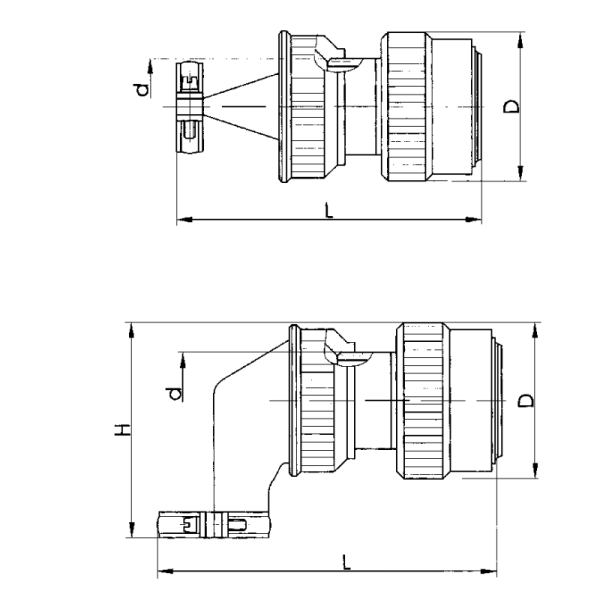

  • 6 - cable side with straight clamp
  • 8 - cable side with angled clamp tail attachment
