2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors
2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors
2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors
2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors
2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors
2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors
2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors
2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors
Specifications
MOQ :
10PCS
Shock :
10~40 cycles/min 250m/s²
Certification :
AS9001
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100,000pcs per month
Relative humidity :
98% At 40 ℃
Packaging Details :
standard export package
Atmosphere :
1KPa At 40℃
Brand Name :
Jovelix
Price :
10＄--150＄
Place of Origin :
China
Delivery Time :
2--9 weeks
Temperature :
-50 ℃~ +105℃
Model Number :
2PM18K7WB1
Vibration :
10~200Hz 150m/s²
Endurance :
500 cycles
Description
2PM Series Threaded Circular Connectors

2PM18K7WB1 Russian Connector Circular Electrical Connector 7 Socket Contacts

The 2PM series connectors are high-reliability circular electrical connectors designed with a secure threaded coupling structure. This connection method provides firm mating, strong vibration resistance, and stable electrical transmission during long-term use. The connectors are widely applied in electrical equipment, electronic instruments, industrial control systems, communication devices, and other applications requiring dependable signal or power connection.

The 2PM series features low contact resistance, reliable contact performance, easy installation, and economical cost, making it suitable for both standard industrial use and equipment maintenance applications. The plug and receptacle can be assembled with either pin contacts or socket contacts, allowing flexible configuration according to different circuit requirements.

The standard 2PM series is manufactured according to Russian standards, while the 2PMT series is specially designed for high-temperature working environments where improved thermal resistance is required.

Ordering Information
  1. Product Name:
    2PM Series Standard Connectors
    2PMT Series High-Temperature Connectors
  2. Shell Size:
    14, 18, 22, 24, 30
  3. Contact Type:
    J: Pin contacts
    K: Socket contacts
  4. Number of Contacts:
    3, 4, 5, 7, 10, 19, 26, 32, 42
  5. Connector Type:
    P: Straight shielded plug
    Q: Straight plug without shield
    A: Panel receptacle
    R: 90° angled shielded plug
    S: 90° angled plug without shield
    M: Sealed receptacle
  6. Shell Type:
    P: Cable shield shell
    Q: Standard shell
  7. Plate contacts: J:Au plated,without mark:Ag plated
Contacts Current Voltage Contact resistance
1mm 5 A 400V ≤5mΩ
1.5mm 10A ≤1.5mΩ
2 mm 16A ≤1.5mΩ
3mm 30A ≤1mΩ
Environment Voltage proof Insulation resistance
Normal 1200V ≥500MΩ
High temperature 1000V ≥200MΩ
Moisture 800V ≥50MΩ
Low pressure 300V ≥5MΩ

2PM18K7WB1 Russian Connector 2PM Series Threaded Circular Connectors

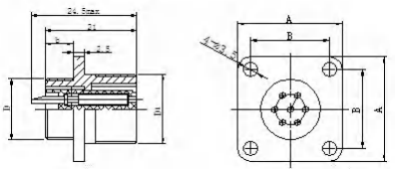

Type B A D(LEFT) b D1
14 17 24 M16X1 5 M16X1
18 20 27 M18X1 M20X1
22 23 30 M22X1 M24X1
24 26 33 M24X1 M27X1.5
27 29 36 M27X1 M30X1.5
30 31 38 M30X1 M33X1.5
33 32 40 M33X1 M36X1.5
36 35 43 M36X1 M39X1.5
39 37 46 M39X1 M42X1.5
42 40 49 M42X1 M45X1.5
45 43 52 M45X1 6 M48X1.5
