PM4-24-2J6B Russian Standard Electrical Circular Connectors
PM4-24-2J6B Russian Standard Electrical Circular Connectors
PM4-24-2J6B Russian Standard Electrical Circular Connectors
PM4-24-2J6B Russian Standard Electrical Circular Connectors
PM4-24-2J6B Russian Standard Electrical Circular Connectors
PM4-24-2J6B Russian Standard Electrical Circular Connectors
Specifications
Brand Name :
Jovelix
Model Number :
PM4-24-2J6B
Delivery Time :
2--9 weeks
Shock :
Multiple times 40g
Withstand Voltage :
≥1850v
Operating time :
minimum 100 hours
Vibration :
1_2000 Hz 30g
Contact Resistance :
Φ1.0mm≤5mΩ Φ1.5mm≤2.5mΩ Φ2.0mm≤1.6mΩ
Place of Origin :
China
Ambient temperature :
_60℃ ~+100℃
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100,000pcs per month
Insulation Resistance :
≥1000MΩ
Certification :
AS9001
Packaging Details :
standard export package
MOQ :
10PCS
Price :
10＄--150＄
Description

PM4-24-2J6B Russian Standard Circular Electrical Connector

PM Series Bayonet Quick-Connect Electrical Connectors | High Reliability Industrial Connector | Heavy Duty Circular Plug | Long-Life Interconnect Solution
Technical Highlights:
  • Compliance: Meets Russian Technical Conditions ΓE0.364.196TY, Technical Regulation 3E0 204 063JT
  • Circuit Compatibility: Designed for both AC and DC applications
  • Ambient Temperature Range: -60°C to +100°C for wide environmental adaptability
  • Vibration & Shock Resistance: 30g (1–2000 Hz) vibration, 40g repeated shock
  • Contact Resistance: Φ1.0mm ≤ 5mΩ, Φ1.5mm ≤ 2.5mΩ, Φ2.0mm ≤ 1.6mΩ
  • Electrical Ratings: Withstand Voltage ≥1850V, Insulation Resistance ≥1000MΩ
  • Mechanical Performance: Minimum 100 hours operating time, 1000 mating cycles
  • Warranty: 7-year reliability guarantee
  • Rear-release, bayonet quick-connect design for secure, fast mating
  • Optimized for harsh industrial environments, providing long-term dependable connectivity
Key Differentiators:
  • High endurance for repeated insertion/extraction cycles
  • Superior insulation and contact performance for industrial applications
  • Designed for heavy-duty electrical and automation systems

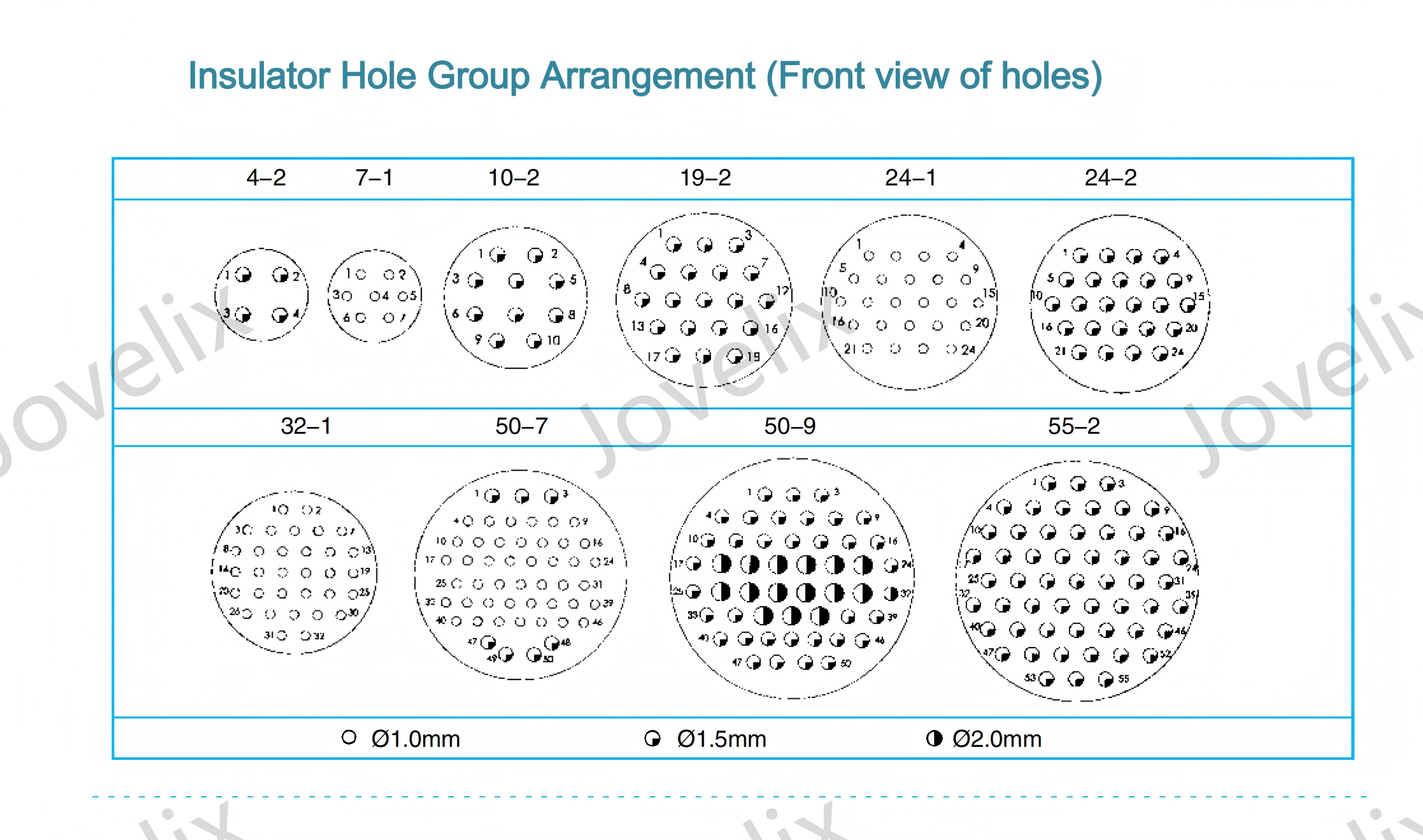

Contact Count / Combo No. Working Current A Working Voltage v Mating Force kg
7.1 5.8 560 0.25
4_2 12.5
10_2 8.3 0.30
24_1 4.2 0.35
19_2 5.8
32_1 3.32
24_2 6.0 0.4
50_7 3.6;5.1 560 0.6
50_9 4.5;7.0 700
55_2 5.1 560 0.9
