CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance
CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance
CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance
CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance
CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance
CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Model Number :
JT-4.96IPSHDINCELL
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
4.96 Inch HD Display Incell 720*1280
Resolution :
720*1280
Display Mode :
IPS Full Viewing Angle
Aspect Ratio :
16:9
Luminance :
350cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/SPI
Description
4.96 Inch HD TFT Display Screen Incell 1280
High-definition TFT display screen with incell technology, designed for POS/PDA applications.
Technical Specifications
Specification Details
Application POS/PDA
Number of pixels 720*1280 pixels
Active Area 61.78*109.82mm
Module Outline 64.3*116.90*1.94mm
Aspect Ratio 16:9
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
Contrast Ratio 1000MIN, 1500 (Typ)
NTSC 68% (Typ)
LCM Brightness 350cd/m² (Typ)
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

Capacitive TFT LCD Display, 4.96-Inch MIPI Interface LCD, 720×1280 High Resolution TFT Module

4.96-Inch Capacitive TFT LCD with Touch, 720×1280 Pixel Display

Product Introduction

The Jingtai Liquid Crystal Display Technology model JT-4.96IPSHDINCELL is a 4.96-inch TFT LCD module with a high resolution of 720 × 1280 pixels. It features the ST7121P driver IC, which integrates controller and driver functions, and supports MIPI interfaces. The module operates from a supply voltage (Vdd) of 2.6V to 3.3V, with a typical value of 2.8V.

This 4.96-inch display utilizes IPS technology, providing a wide viewing angle of 85/85/85/85 (max) for consistent image quality from all directions.

The JT-4.96IPSHDINCELL is a portrait-mode TFT LCD module with a standard brightness of 350 nits, which can be customized up to 1000 nits upon request. It includes a Capacitive (CTP) touch panel, supporting I²C interface and multi-touch for a smooth and responsive user experience.

The module operates within a temperature range of -20 ℃ to +70 ℃ and can be stored at temperatures from -30 ℃ to +80 ℃. Suitable for both indoor and outdoor use, this versatile 4.96-inch TFT LCD meets a wide range of application needs. It is an ideal high-performance display solution for industrial equipment, scanners, home automation, access control, monitoring devices, analyzers, security systems, garden irrigation, and more.

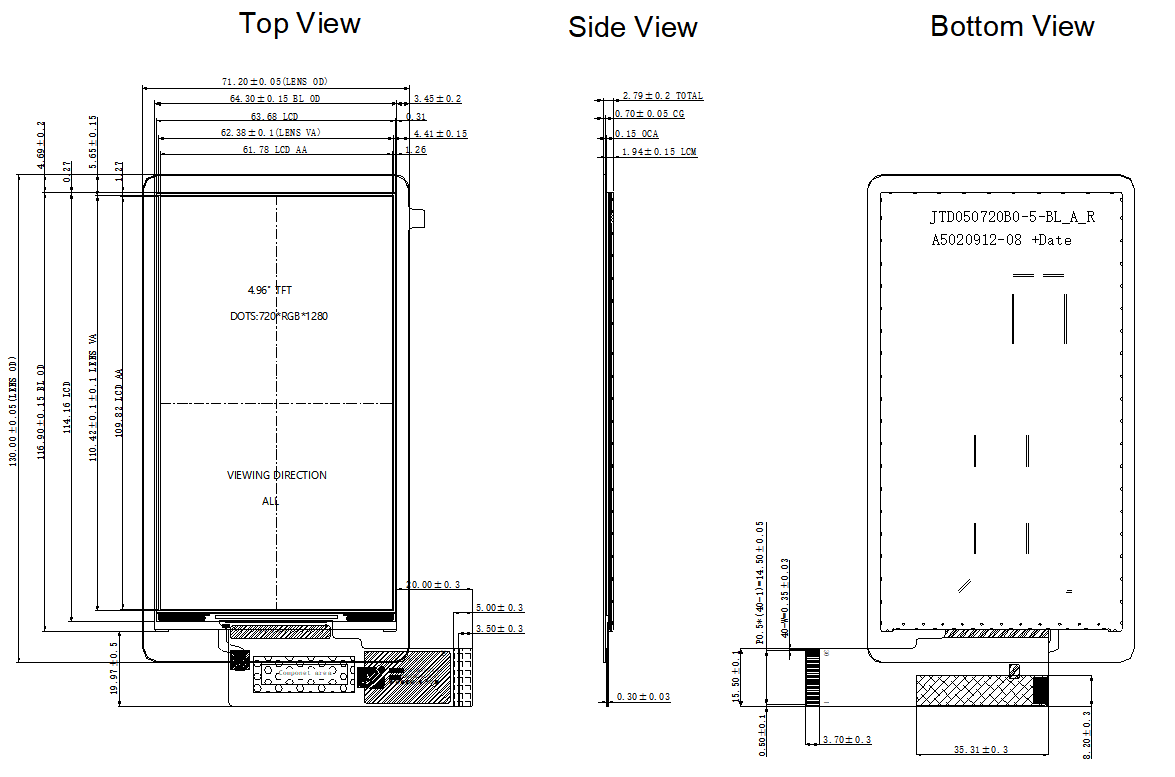

4.96 inch HD 720*1280 TFT Touch Display Module Drawing

CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance

CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance

CTP Touch Screen HD IPS PDA TFT Display Screen 4.96 Inch 350cd/M2 Luminance
