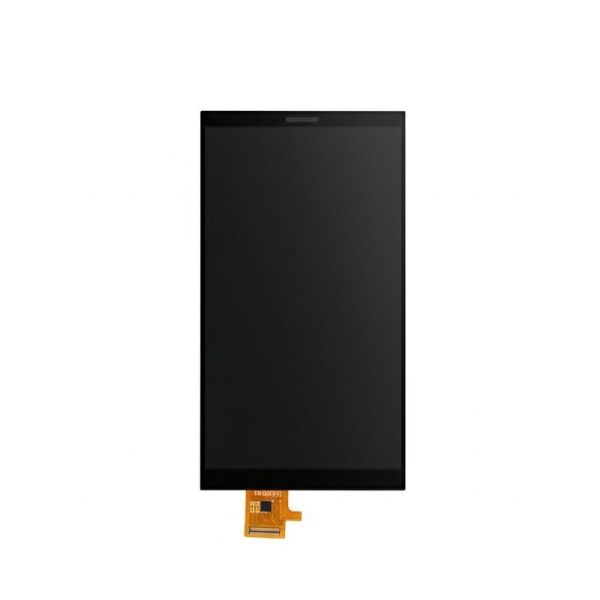

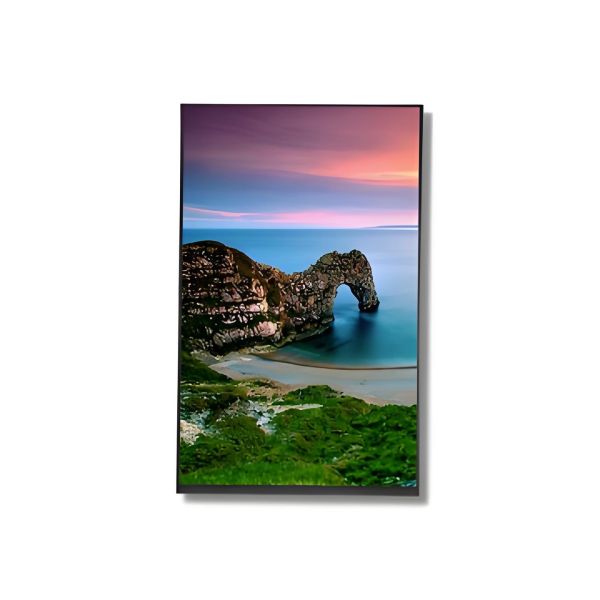

IPS Technology HD TFT POS LCD Display Screen 10.1 Inch 800x1280 500cd/M2
IPS Technology HD TFT POS LCD Display Screen 10.1 Inch 800x1280 500cd/M2
IPS Technology HD TFT POS LCD Display Screen 10.1 Inch 800x1280 500cd/M2
IPS Technology HD TFT POS LCD Display Screen 10.1 Inch 800x1280 500cd/M2
IPS Technology HD TFT POS LCD Display Screen 10.1 Inch 800x1280 500cd/M2
IPS Technology HD TFT POS LCD Display Screen 10.1 Inch 800x1280 500cd/M2
Specifications
Brand Name :
Jingtai
Model Number :
JT-10.1IPSHDINCELL
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/P,D/A
Supply Ability :
2000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Price :
The most competitive price and the price is negotiable based on order quantity
Key Words :
10.1 Inch IPS TFT LCD
Resolution :
800*1280
Display Mode :
IPS Full Viewing Angle
Aspect Ratio :
16:10
Luminance :
500cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/SPI
Description
10.1 Inch HD TFT LCD Display Screen Incell
Key Specifications
Attribute Value
Key Words 10.1 Inch IPS TFT LCD
Resolution 800*1280
Display Mode IPS Full Viewing Angle
Luminance 500cd/m²(Typ)
Interface Definition MIPI
Touch Screen CTP
CTP Interface 12C/SPI
Technical Details
Specification Value
Application POS/PDA
Number of pixels 800*1280 pixels
Active Area 216.58*135.36mm

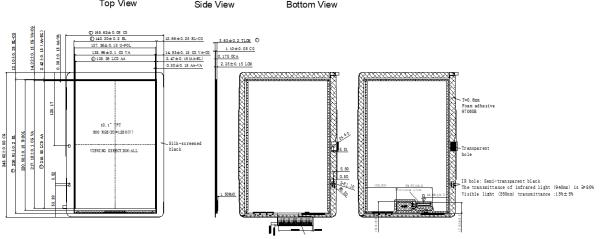

Module Outline 143.0*228.6*2.52mm
Aspect Ratio 16:10
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80(Typ)
Contrast Ratio 1000MIN, 1500(Typ)
NTSC 60%(Typ)
LCM Brightness 500cd/m²(Typ)
Interface MIPI
Operating Temperature -20~+60℃
Storage Temperature -20~+70℃
Key Features
  • High-resolution 10.1 inch HD display with 800*1280 resolution
  • IPS technology for full viewing angles
  • Bright 500cd/m² luminance for clear visibility
  • MIPI interface for efficient data transfer
  • Capacitive touch panel (CTP) with I2C or SPI interface
  • Wide operating temperature range (-20~+70℃)
