6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness
6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness
6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness
6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness
6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness
6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness
Specifications
Brand Name :
Jingtai
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Payment Terms :
T/T,L/C,Western Union,MoneyGram,D/P,D/A
Delivery Time :
1-5 weeks
Model Number :
Jt-6.95IPSINCELL
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key words :
6.95 inch TFT Display
Resolution :
600*1024
Display Mode :
IPS Full viewing angle
Aspect Ratio :
16:9
Luminance :
380cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/SPI
Description
6.95 Inch WSVGA TFT LCD Display Screen Incell
Product Overview

High-performance 6.95 inch WSVGA TFT LCD display with incell technology, offering excellent visual clarity and touch functionality for industrial applications.

Key Specifications
Attribute Value
Key words 6.95 inch TFT Display
Resolution 600*1024
Display Mode IPS Full viewing angle
Luminance 380cd/m²(Typ)
Interface Definition MIPI
Touch Screen CTP
CTP Interface 12C/USB
CTP Structure GFF/GG
Technical Details
Specification Value
Application POS/PDA
Number of pixels 600*1024pixels
Active Area 89.29*152.37mm
Module Outline 95*163.1*2.33mm
Aspect Ratio(AA) 16:9
Display Mode Normally Black
Viewing Angle(CR>10) 80/80/80/80(Typ)
Contrast Ratio 800MIN, 1000(Typ)
NTSC 49.5%(Typ)
LCM Brightness 380cd/m²(Typ)
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
Key Features
  • High-resolution WSVGA display (600×1024 pixels)
  • IPS technology for full viewing angles
  • High brightness of 380cd/m² (typical)
  • MIPI interface for reliable data transmission
  • Capacitive touch panel (CTP) support
  • Wide operating temperature range (-20°C to +70°C)
  • Suitable for POS and PDA applications

ILI9882Q TFT LCD Display Module, 6.95-Inch TFT LCD Display Module, IPS TFT LCD Display Module

Capacitive Touchscreen TFT LCD Display Module, 6.95-Inch MIPI Interface

Product Introduction

Product Quick Review

Model No.: Jt-6.95IPSINCELL

Resolution: 600 × 1024 dots

Technology: IPS, wide viewing angles

Surface Brightness: 380 cd/m²

Driver IC: ILI9882Q

Interface: MIPI

Touchscreen Type: Capacitive

Description

The Jt-6.95IPSINCELL is a 6.95-inch TFT-LCD display module with a resolution of 600 × 1024 pixels and a brightness of 380 cd/m². It incorporates the ILI9882Q controller IC and supports MIPI interfaces. The physical dimensions of the module are 95 mm (W) × 163.1 mm (H) × 2.33 mm (T), with an active display area measuring 89.29 mm (W) × 152.37 mm (H). The analog supply voltage range is 2.6V to 3.3V, with a typical operating voltage of 2.8V.

Featuring IPS technology, this display ensures clear and consistent visibility from wide viewing angles. The Jt-6.95IPSINCELL module supports an operating temperature range of -20°C to +60°C and can be stored within temperatures ranging from -25°C to +70°C.

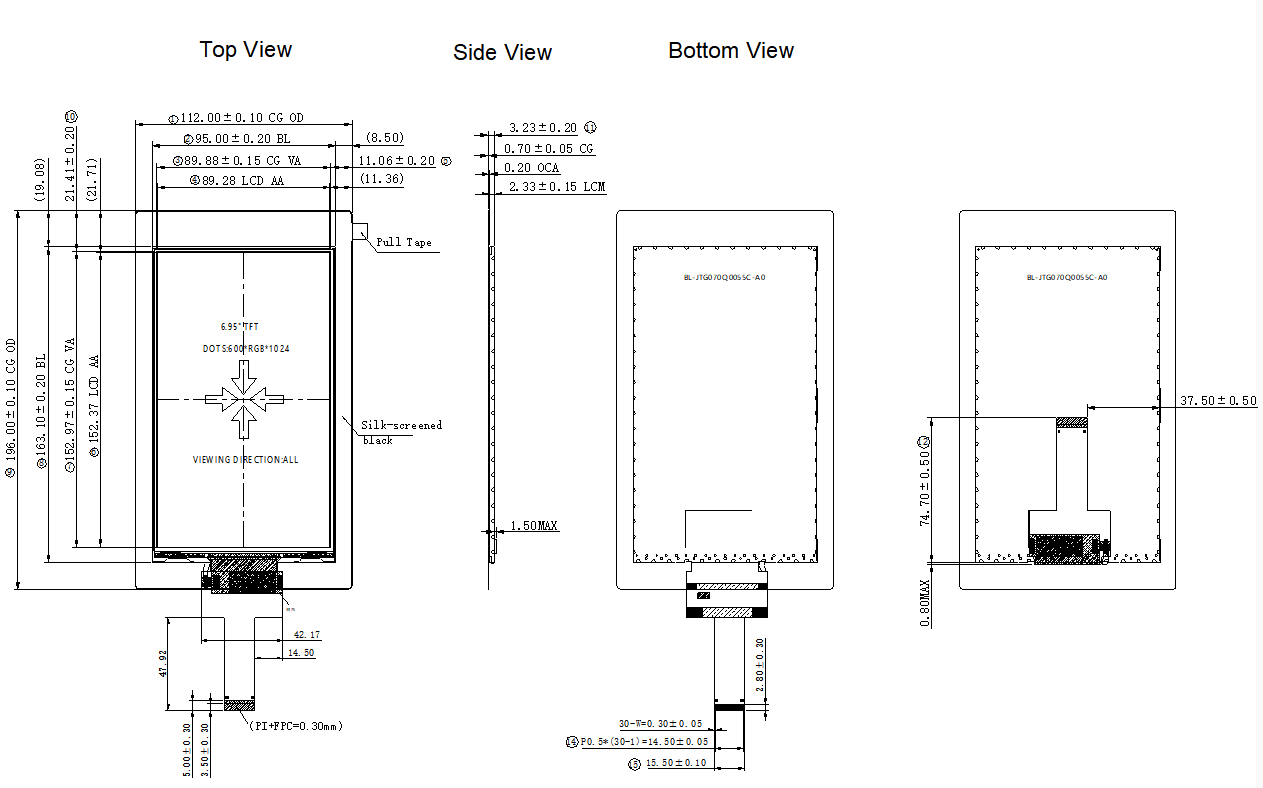

6.95 inch 600*1024 TFT Touch Display Module Drawing

6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness

6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness

6.95 Inch INCELL WSVGA TFT LCD Display Screen 600x1024 380cd/M2 Brightness
