High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology
High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology
High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology
High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology
High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology
High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,L/C,Western Union,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Model Number :
JT-5.5IPSHDINCELL
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
5.5 Inch HD TFT Display Incell 720*1280
Resolution :
720*1280
Display Mode :
IPS Full Viewing Angle
Aspect Ratio :
16:9
Luminance :
250cd/m²(Typ) 500cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/SPI
Description
5.5 Inch HD TFT Display Screen Incell 1280
High-definition 5.5-inch TFT display with incell technology, designed for POS/PDA applications requiring excellent visibility and performance.
Application POS/PDA
Number of pixels 720*1280 pixels
Active Area 68.04*120.96mm
Module Outline 71.04*129.56*2.16mm
Aspect Ratio 16:9
Display Mode Normally Black
Viewing Angle (CR>10) 80/80/80/80 (Typ)
Contrast Ratio 1500 (Typ)
NTSC 70% (Typ)
LCM Brightness 250cd/m² (Typ) 500cd/m² (Typ)
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

TFT 5.5-Inch Display, Multi-Touch TFT Display, MIPI Interface Display

5.5-Inch Multi-Touch TFT with MIPI Interface

Product Introduction

TFT (Thin Film Transistor) technology is a type of liquid crystal display known for its fast response time and high color reproduction. The product model JT-5.5IPSHDINCELL incorporates IPS technology, delivering an approximate 180-degree full viewing angle while maintaining color consistency and accuracy from all directions.

The capacitive touch screen is equipped with a high-performance touch controller chip that supports multi-touch functionality and delivers a smooth interactive experience. This 5.5-inch IPS TFT LCD achieves high-precision touch performance and rapid response. JINGTAI Technology specializes in IPS display solutions, offering more than 300 IPS-based products applied across various industries.

The JT-5.5IPSHDINCELL display features a high definition resolution of 720 × 1280, ensuring clear and detailed image quality. With a brightness of 250 cd/m², it remains clearly visible even in brightly lit environments. JINGTAI Technology also offers customized brightness options up to 500 cd/m² to meet specific customer requirements.

This JT-5.5IPSHDINCELL display is widely used in applications such as smartphones, tablets, car navigation systems, and industrial control panels. Its high resolution and multi-touch capabilities provide an engaging user experience and intuitive operation.

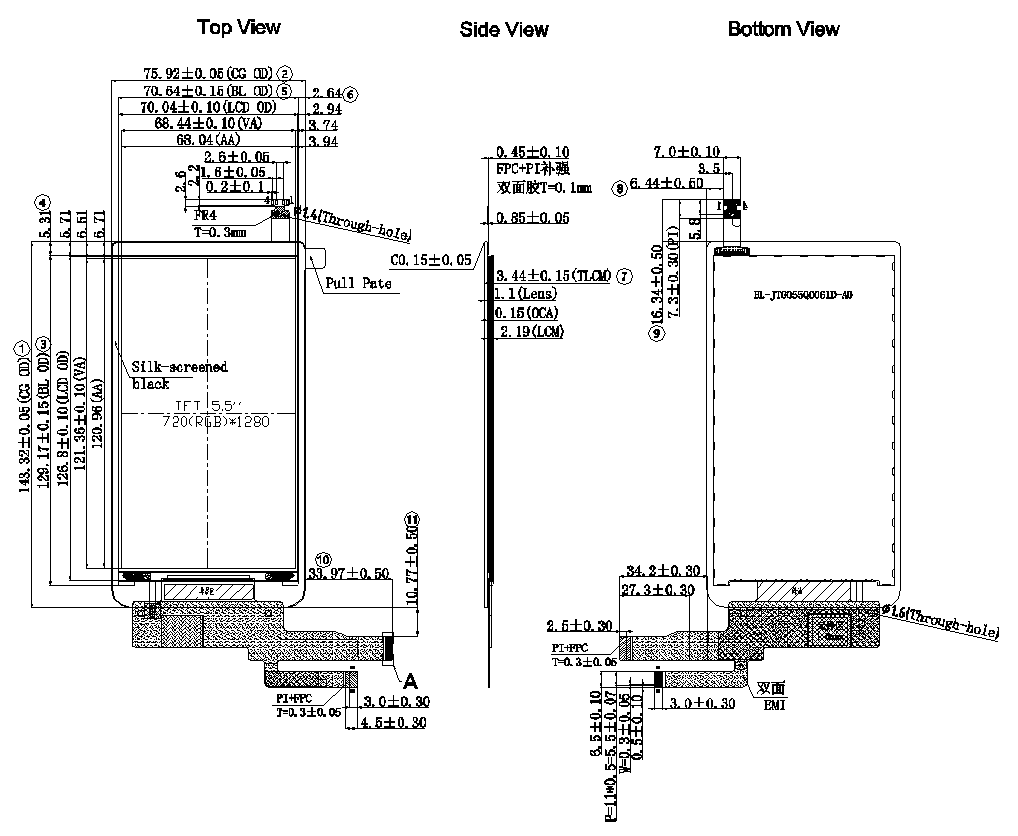

5.5 inch HD 720*1280 TFT Touch Display Module Drawing

High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology

High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology

High Definition TFT PDA POS LCD Display 5.5 Inch 720x1280 Pixels With Incell Technology

Environmental / Reliability Tests

No Test Item Condition Remarks
1 High Temperature Operation Ts= +70℃ , 240hrs

Note 1

IEC60068-2-2, GB2423. 2-89
2 Low Temperature Operation Ta= -20℃ , 240hrs Note 2 IEC60068-2-1 GB2423.1-89
3 High Temperature Storage Ta= +80℃ , 240hrs IEC60068-2-2 GB2423. 2-89
4 Low Temperature Storage Ta= -30℃ , 240hrs IEC60068-2-1 GB/T2423.1-89
5 High Temperature & Humidity Storage Ta= +60℃ , 90% RH max, 160 hours

IEC60068-2-3

GB/T2423.3-2006
6 Thermal Shock (Non-operation) -30℃ 30 min ~ +80℃ 30 min Change time: 5min, 30 Cycle

Start with cold

temperature, end with

high temperature

IEC60068-2-14,

GB2423.22-87

7

 Electro Static Discharge (Operation)

C=150pF, R=330 Ω , 5 points/panel

Air:±8KV, 5 times; Contact: ±4KV, 5 times; (Environment: 15℃ ~ 35℃ , 30% ~ 60%, 86Kpa ~ 106Kpa)

IEC61000-4-2

GB/T17626.2-1998

8

Vibration

(Non-operation)

Frequency range: 10~55Hz, Stroke:

1.mm Sweep: 10Hz~55Hz~10Hz

2 hours for each direction of X .Y. Z. (package condition)

IEC60068-2-6

GB/T2423.5-1995
9 Shock (Non-operation)

60G 6ms, ± X, ±Y , ± Z

3 times for each direction

 IEC60068-2-27 GB/T2423.5-1995
10 Package Drop Test

Height: 80 cm, 1 corner, 3 edges, 6 surfaces

 IEC60068-2-32 GB/T2423.8-1995
