Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS
Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS
Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS
Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS
Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS
Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/P,D/A
Delivery Time :
1-5 weeks
Model Number :
JT-4.95IPSINCELL
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
4.95 Inch IPS TFT LCD Display Incell
Resolution :
540*960
Display Mode :
IPS Full Viewing Angle
Aspect Ratio :
16:9
Luminance :
250cd/m²(Typ) 500cd/m²(Typ)
Interface Definition :
MIPI
Touch Screen :
CTP
CTP Interface :
12C/SPI
Description
4.95 Inch IPS TFT LCD Display Incell
High-performance 4.95-inch IPS TFT LCD display with incell technology, designed for POS/PDA applications requiring excellent visibility and durability.
Application POS/PDA
Number of pixels 540*960 pixels
Active Area 61.64*109.58mm
Module Outline 64.04*114.98*2.0mm
Aspect Ratio 16:9
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
Contrast Ratio 1000MIN, 1500 (Typ)
NTSC 70% (Typ)
LCM Brightness 250cd/m² (Typ) 500cd/m² (Typ)
Interface MIPI
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃

TD4160 TFT LCD Display Module, 4.95-Inch IPS TFT LCD with MIPI Interface
4.95-Inch Capacitive Touchscreen TFT LCD Display Module Featuring MIPI Interface

The JT-4.95IPSINCELL is a 4.95-inch TFT-LCD display with a resolution of 540 × 960 pixels and a brightness of 250 cd/m². This module incorporates the TD4160-BOS-HHV30Z-0 controller IC and supports MIPI interfaces. Its overall dimensions are 64.04 mm (W) × 114.98 mm (H) × 2.0 mm (T), with an active area measuring 61.64 mm (W) × 109.58 mm (H). The analog supply voltage (Vdd) for the module ranges from 2.6V to 3.3V, with a typical value of 2.8V.

Featuring an IPS screen, this display module delivers clear visibility from a wide range of viewing angles. The JT-4.95IPSINCELL has an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C.

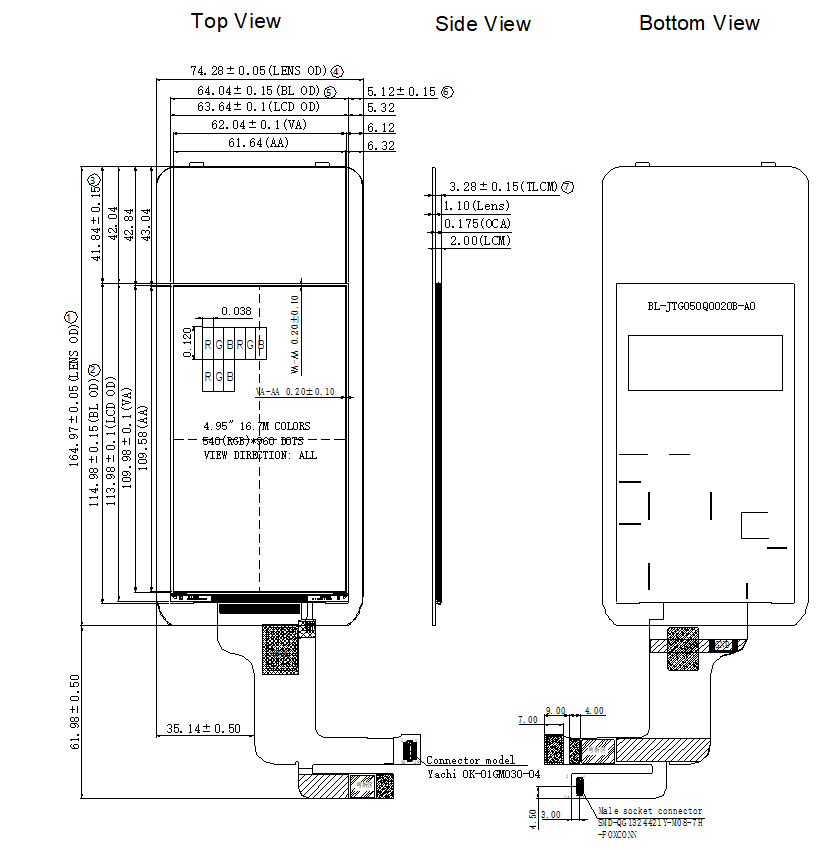

4.95 inch 540*960 TFT Touch Display Module Drawing

Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS

Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS

Capacitive Touchscreen IPS TFT LCD Display 4.95 Inch 540x960 Resolution For POS

Customer Service

1. We provide pre-sales consulting by analyzing project requirements and offering professional, optimized solutions before contract finalization.

2. All inquiries regarding our products or pricing will receive a response within 24 hours.

3. We keep customers informed of production progress and can facilitate factory quality inspections upon request.

4. All LCD displays come with a one-year warranty post-delivery. Defective units will be replaced within the warranty period.

5. Buyers can send technicians to our factory for complimentary training before shipment.

6. We are committed to creating value for our customers. Essential technical or commercial support is available through conference calls, online technical services, or on-site assistance, tailored to meet diverse customer needs.
