3.95 Inch Square LCD Display Panel With 720×720 Resolution 500cd/M2 Brightness
3.95 Inch Square LCD Display Panel With 720×720 Resolution 500cd/M2 Brightness
3.95 Inch Square LCD Display Panel With 720×720 Resolution 500cd/M2 Brightness
3.95 Inch Square LCD Display Panel With 720×720 Resolution 500cd/M2 Brightness
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,MoneyGram,L/C,D/A,D/P
Delivery Time :
1-5 weeks
Model Number :
JT-3.95IPSS720
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
The most competitive price, and the price is negotiable based on order quantity
Key Words :
3.95 Inch Square IPS
Resolution :
720×720
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m² (Typ), 500cd/m² (Typ)
Interface Definition :
MIPI/SPI+RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF/GG
Description
Application
Number of pixels 720*720pixels

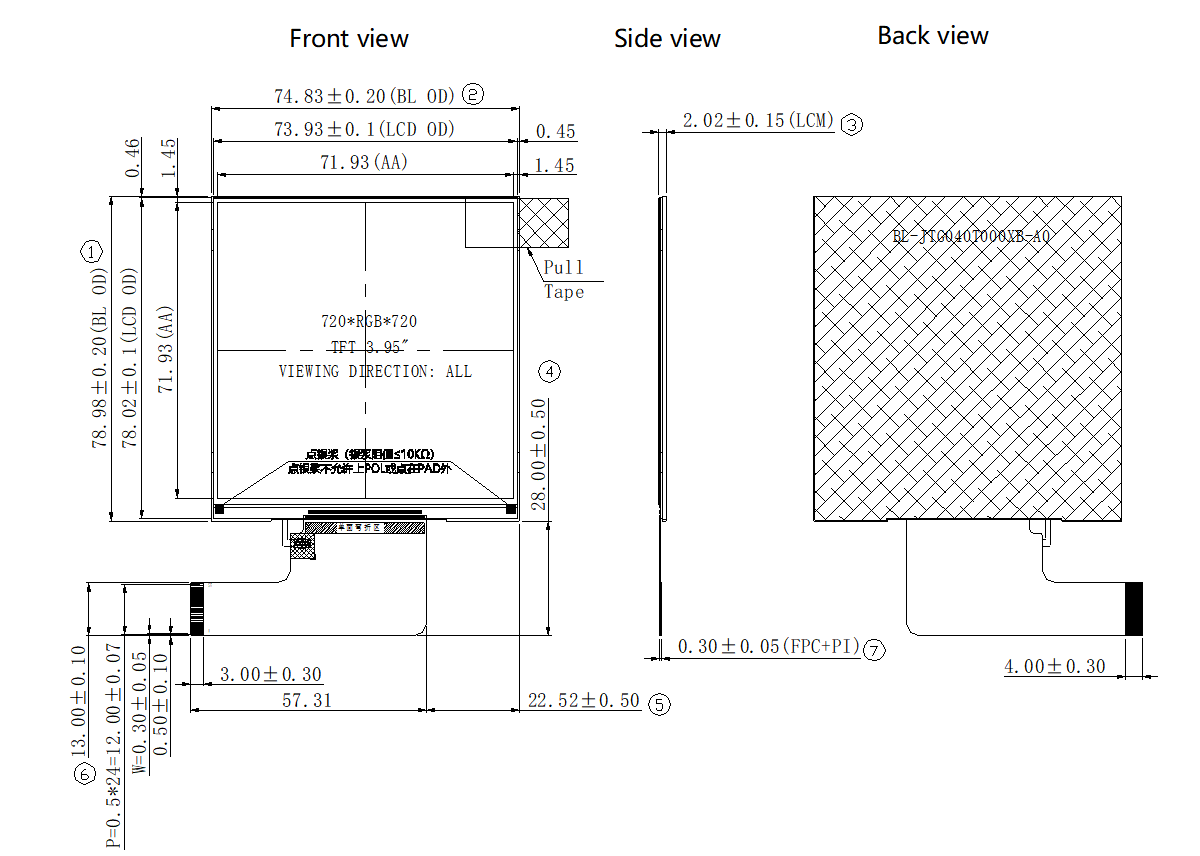

Active Area 71.93*71.93mm
Module Outline 74.83*78.98*2.02mm
Pixel Pitch
Display Mode
Viewing Angle(CR>10) 85/85/85/85(Typ)
Contrast Ratio
NTSC 68%(Typ)
LCM Brightness 250cd/m²(Typ) 500cd/m²(Typ)

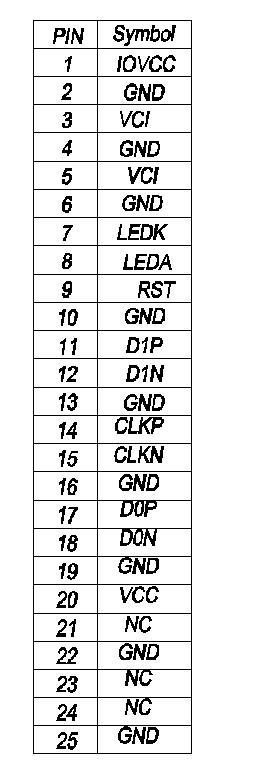

Interface MIPI/SPI+RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
