2.73 Inch Square LCD Panel 320×320 Resolution IPS Full Viewing Angle MIPI RGB Interface
2.73 Inch Square LCD Panel 320×320 Resolution IPS Full Viewing Angle MIPI RGB Interface
2.73 Inch Square LCD Panel 320×320 Resolution IPS Full Viewing Angle MIPI RGB Interface
2.73 Inch Square LCD Panel 320×320 Resolution IPS Full Viewing Angle MIPI RGB Interface
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Model Number :
JT-2.73IPSS
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
2.73 Inch Square IPS
Resolution :
320×320
Display Mode :
IPS Full Viewing Angle
Luminance :
500cd/m² (Typ)
Interface Definition :
MIPI/RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description

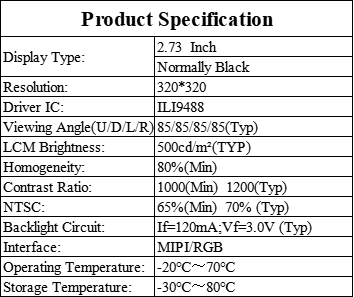

Product Specifications
Specification Value
Number of pixels 320*320 pixels
Active Area 48.96*48.96 mm
Module Outline 53.1*57.0*2.0 mm
Viewing Angle (CR>10) 85/85/85/85 (Typ)
NTSC 70% (Typ)
LCM Brightness 500 cd/m² (Typ) -- Adjustable
Interface MIPI/RGB
Operating Temperature -20~+70 ℃
Storage Temperature -30~+80 ℃

2.73-inch Square TFT Display | 320×320 Pixels | Capacitive Touchscreen | MIPI/RGB Interface

Product Overview

The Jingtai Technology JT-2.73IPSS is a 2.73-inch IPS TFT LCD display offering a high resolution of 320×320 pixels and wide viewing angles. Integrated with an ILI9488 (or equivalent) controller IC, it supports MIPI or RGB interface operation and operates at a typical voltage of 2.8V (Vdd range: 2.6V-3.3V). Designed with an optional capacitive touch panel supporting single or multi-touch, this square-format module delivers a luminance of 300 cd/m² and is suitable for a variety of embedded display applications.

Features

1. Compact High-Resolution Display: 2.73-inch diagonal, 320×320 square pixel array

2. Capacitive Touch Support: Features a projective capacitive touch panel (CTP) with I²C interface

3. High-Speed Interface: Supports MIPI/RGB for efficient data transmission

4. Compact Dimensions:

Module size (without touch): 53.1*57.0*2.0mm

Active area: 48.96*48.96mm

5. Wide Voltage Compatibility: Logic supply voltage range of 2.6V to 3.3V with ILI9488 (or equivalent) controller

6. Extended Temperature Range:

Operating temperature: -20°C to +70°C

Storage temperature: -30°C to +80°C

7. Adjustable Brightness: Standard luminance of 300 cd/m²; landscape orientation and custom brightness available upon request

8. Versatile Applications: Suitable for meters, GPS devices, POS terminals, cash readers, scanners, home automation, conference phones, analyzers, home appliances, and security systems

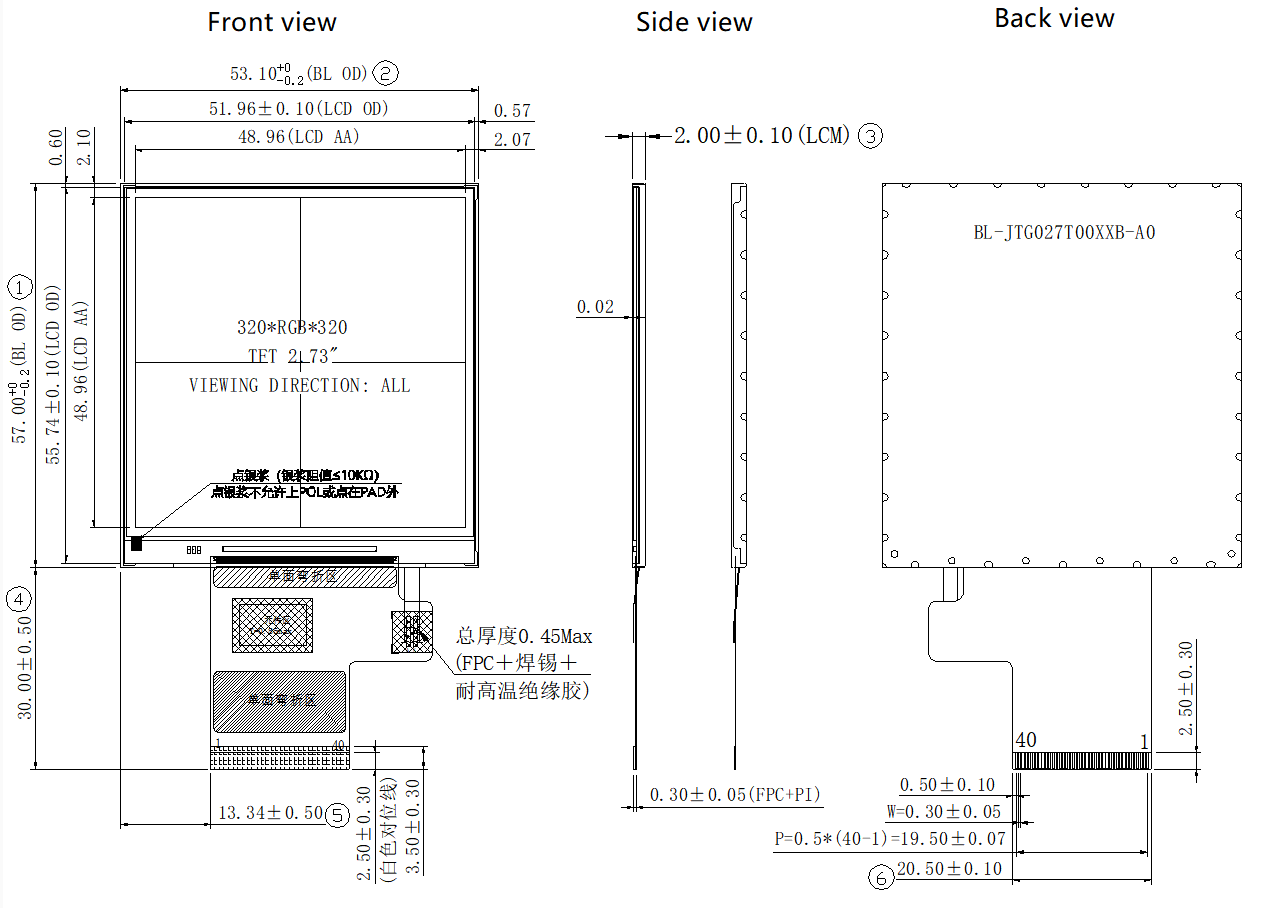

2.73” TFT LCD Display Drawing
