300 Cd/M2 Luminance Square LCD Display 480x480 Resolution 3.4 Inch TFT LCD Display
300 Cd/M2 Luminance Square LCD Display 480x480 Resolution 3.4 Inch TFT LCD Display
300 Cd/M2 Luminance Square LCD Display 480x480 Resolution 3.4 Inch TFT LCD Display
300 Cd/M2 Luminance Square LCD Display 480x480 Resolution 3.4 Inch TFT LCD Display
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,MoneyGram,L/C,D/A,D/P
Delivery Time :
1-5 weeks
Model Number :
JT-3.4IPSS
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
The most competitive price and the price is negotiable based on order quantity
Key Words :
3.4 Inch Square IPS
Resolution :
480*480
Display Mode :
IPS Full Viewing Angle
Luminance :
300 cd/m² (Typ)
Interface Definition :
MIPI/SPI+RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
Application

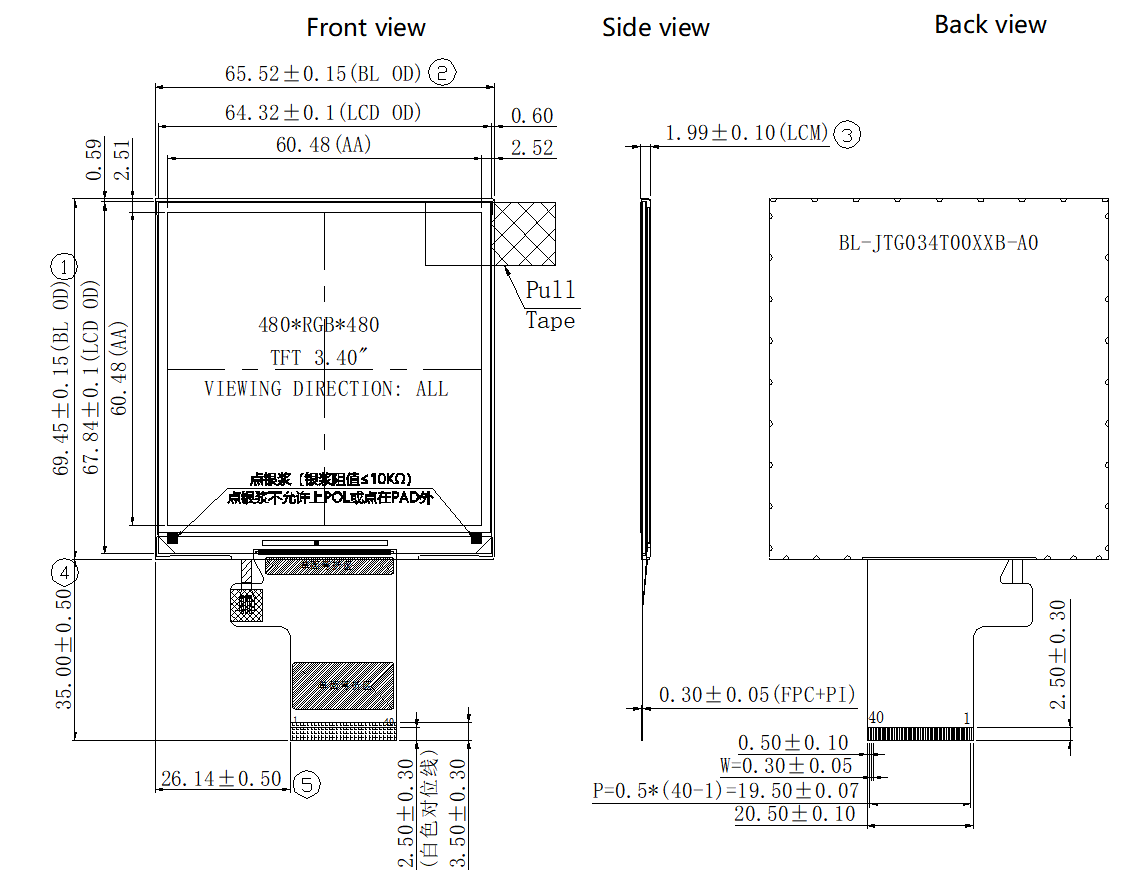

Number of pixels 480*480pixels
Active Area 60.48*60.48mm
Module Outline 65.52*69.45*1.99mm
Pixel Pitch
Display Mode
Viewing Angle(CR>10) 85/85/85/85(Typ)
Contrast Ratio
NTSC 72%(Typ)
LCM Brightness 300cd/m²(Typ) --Adjustable
Interface MIPI/SPI+RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
