1.54 Inch Square LCD Display With 240×240 Resolution 400cd/M2 Luminance
1.54 Inch Square LCD Display With 240×240 Resolution 400cd/M2 Luminance
1.54 Inch Square LCD Display With 240×240 Resolution 400cd/M2 Luminance
1.54 Inch Square LCD Display With 240×240 Resolution 400cd/M2 Luminance
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,MoneyGram,L/C,D/A,D/P
Delivery Time :
1-5 weeks
Model Number :
JT-1.54IPSS
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
The most competitive price and price is negotiable based on order quantity
Key Words :
1.54 Inch Square IPS
Resolution :
240×240
Display Mode :
IPS Full Viewing Angle
Luminance :
400cd/m² (Typ)

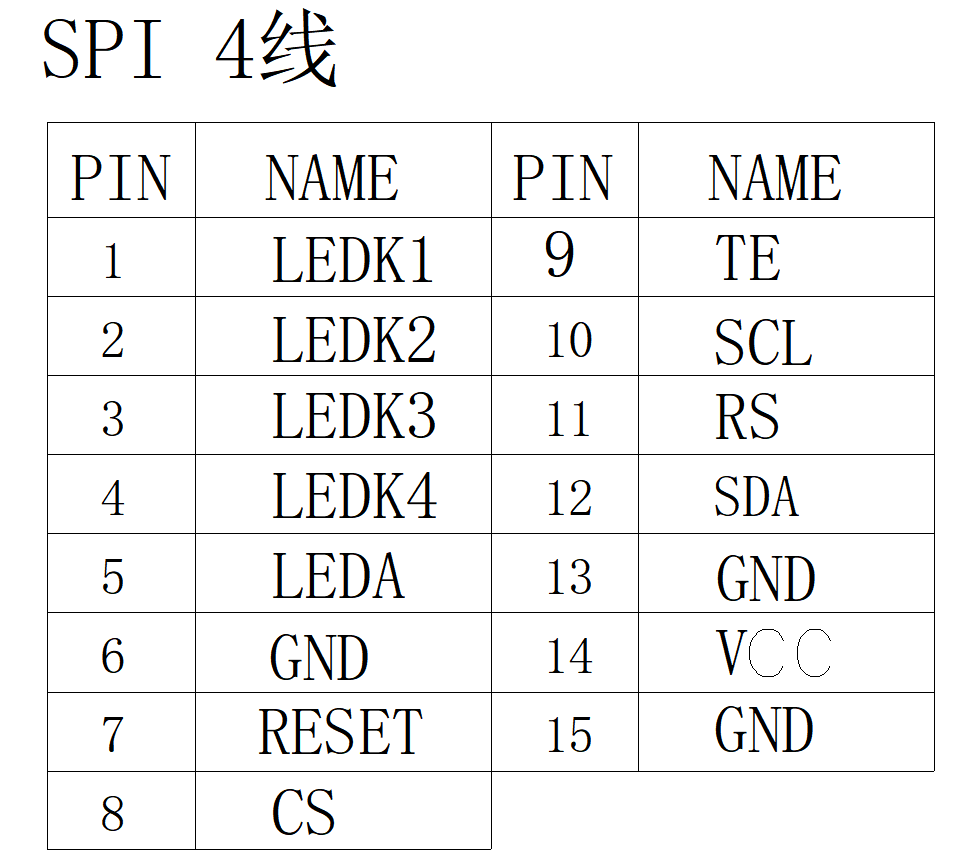

Interface Definition :
MCU/SPI/RGB
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
Application
Number of pixels 240*240pixels
Active Area 27.72*27.72mm

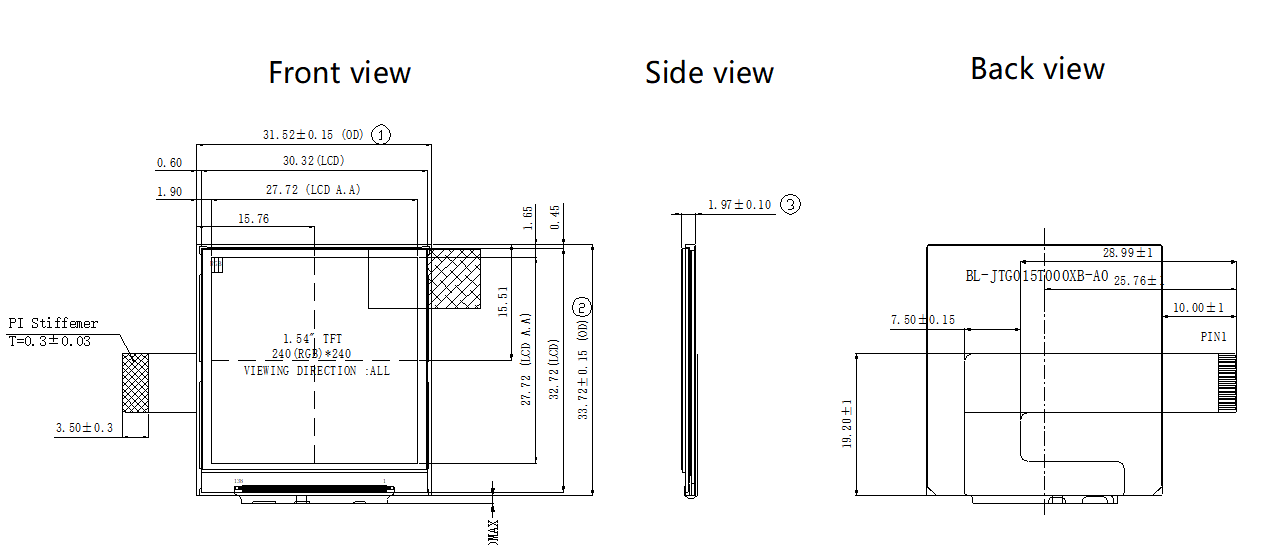

Module Outline 31.52*33.72*1.97mm
Pixel Pitch
Display Mode
Viewing Angle(CR>10) 80/80/80/80(Typ)
Contrast Ratio
NTSC 50%(Typ)
LCM Brightness 400cd/m²(Typ) --Adjustable
Interface MCU/SPI/RGB
Operating Temperature -20~+70℃
Storage Temperature -30~+80℃
