500 Cd/M2 9.0 Inch IPS LCD Display 1024×600 Resolution Two Wheeler TFT Module
500 Cd/M2 9.0 Inch IPS LCD Display 1024×600 Resolution Two Wheeler TFT Module
500 Cd/M2 9.0 Inch IPS LCD Display 1024×600 Resolution Two Wheeler TFT Module
500 Cd/M2 9.0 Inch IPS LCD Display 1024×600 Resolution Two Wheeler TFT Module
500 Cd/M2 9.0 Inch IPS LCD Display 1024×600 Resolution Two Wheeler TFT Module
500 Cd/M2 9.0 Inch IPS LCD Display 1024×600 Resolution Two Wheeler TFT Module
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Model Number :
JT-9.0IPSTWWS
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
The most competitive price and the price is negotiable based on order quantity
Key Words :
9.0 Inch IPS WS
Resolution :
1024 × 600
Display Mode :
IPS Full Viewing Angle
Luminance :
500 cd/m² (Typ), 1000 cd/m² (Typ)
Interface Definition :
RGB/MIPI
Touch Screen :
CTP
CTP Interface :
12C/USB
CTP Structure :
GFF/GG
Description
9.0 inch IPS WS LCD Display
Technical Specifications
Specification Value
Number of pixels 1024 × 600 pixels
Active Area 196.61 × 114.15 mm

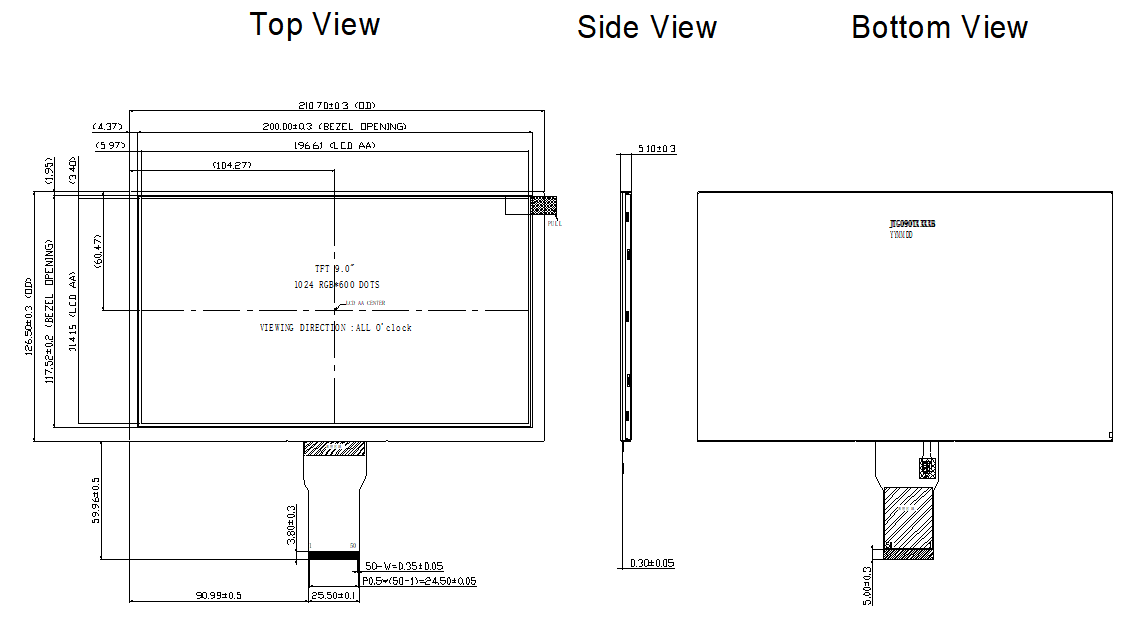

Module Outline 210.70 × 126.5 × 5.1 mm
Viewing Angle (CR>10) 85/85/85/85 (Typ)
NTSC 50% (Typ)
LCM Brightness 500 cd/m² (Typ), 1000 cd/m² (Typ)

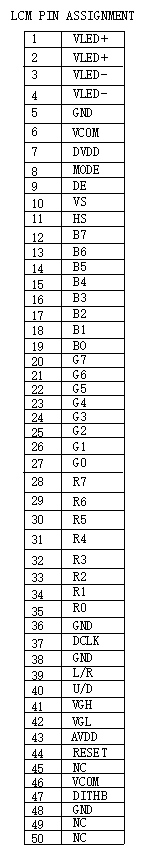

Interface RGB/MIPI
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Key Features
  • High-quality IPS panel with wide viewing angles
  • Available in standard (500 cd/m²) and high brightness (1000 cd/m²) versions
  • Compact module design with slim 5.1mm thickness
  • Supports both RGB and MIPI interfaces
  • Wide operating temperature range for industrial applications
