2.4 Inch Instrument Cluster LCD Screen IPS TFT LCD Display 240x320 Full Viewing Angle
2.4 Inch Instrument Cluster LCD Screen IPS TFT LCD Display 240x320 Full Viewing Angle
2.4 Inch Instrument Cluster LCD Screen IPS TFT LCD Display 240x320 Full Viewing Angle
2.4 Inch Instrument Cluster LCD Screen IPS TFT LCD Display 240x320 Full Viewing Angle
Specifications
Brand Name :
Jingtai
Model Number :
JT-2.4IPSTW
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Supply Ability :
2000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
2.4 Inch IPS TFT
Resolution :
240*320
Display Mode :
IPS Full Viewing Angle
Luminance :
250cd/m² (Typ) 500cd/m² (Typ) 800cd/m² (Typ) 1000cd/m² (Typ)
Interface Definition :
RGB/MCU/SPI
Touch Screen :
CTP
CTP Interface :
12C
CTP Structure :
GF/GFF
Description
2.4 Inch IPS TFT LCD Screen
High-performance 2.4-inch TFT LCD display designed for demanding industrial and automotive applications.
Primary Application
  • E-motorcycle Instrument Cluster (Two-wheeler dash)
Technical Specifications
Number of pixels 240*320 pixels
Active Area 36.72*48.96mm
Module Outline 40.44*57*2.26mm
Aspect Ratio 4:3
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
Contrast Ratio 640MIN, 800(Typ)
NTSC 70% (Typ)
LCM Brightness 250cd/m² (Typ) 500cd/m² (Typ) 800cd/m² (Typ) 1000cd/m² (Typ)
Interface RGB/MCU/SPI
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C

2.4-Inch TFT LCD Display, 240×320 Capacitive Touch Screen Module, 1000 nits IPS TFT LCD

Description

The Jingtai Liquid Crystal Display Technology JT-2.4IPSTW is an IPS-type TFT LCD display with a diagonal size of 2.4 inches. It features a display resolution of 240×320. Thanks to the IPS technology, the product offers an 85-degree viewing angle in all directions.

The external dimensions of the display are 40.44× 57 × 2.26 mm. It uses the ST7789V2-G4-A driver IC and supports an MCU/SPI/RGB interface.

The operating temperature range of this product is –20 °C to +70 °C, meeting the requirements of the vast majority of product applications.

This display is equipped with a capacitive touch panel (CTP), which enhances ease of use and delivers a highly satisfactory user experience.

Maximun Absolute Limit

Item

Symbol

Value

Unit

Power supply voltage for logic

VDD

1.6~3.3

V

Input voltage

Vin

VDD+0.3

V

Operating temperature

Topr

-20 to 70

°C

Storage temperature

Tstg

-30 to 80

°C

LED Backlight specifications

Item

Symbol

MIN

TYP

MAX

UNIT

Test
Condition

Supply Voltage

Vf

3.0

3.2

3.4

V

If=80mA

Supply Current

If

-

80

-

mA

-

Reverse Voltage

Vr

-

-

5

V

-

Power dissipation

Pd

-

-

mW

-

Luminous Intensity for LCM


-

-

800

-

Cd/m2

If=80mA

Uniformity for LCM

-

80

-

-

％

If=80 mA

Backlight Color

White

Optical Characteristics

No.

ITEM

Symbol

Conditions

Specification

Unit

Min

Typ

Max

1

Response Time

Tr+Tf

25℃

-

15

-

Ms

2

Transmittance (With PL)

T(%)

-

-

7.1

-

-

3

Contrast Rate

Cr

θ=0,
Normal viewing angle

-

250

-

-

4

Viewing
Angle

Hor.

θR

CR>10

-

85

-

Deg

θL

-

85

-

Ver.

Θ+

-

85

-

Θ-

-

85

-

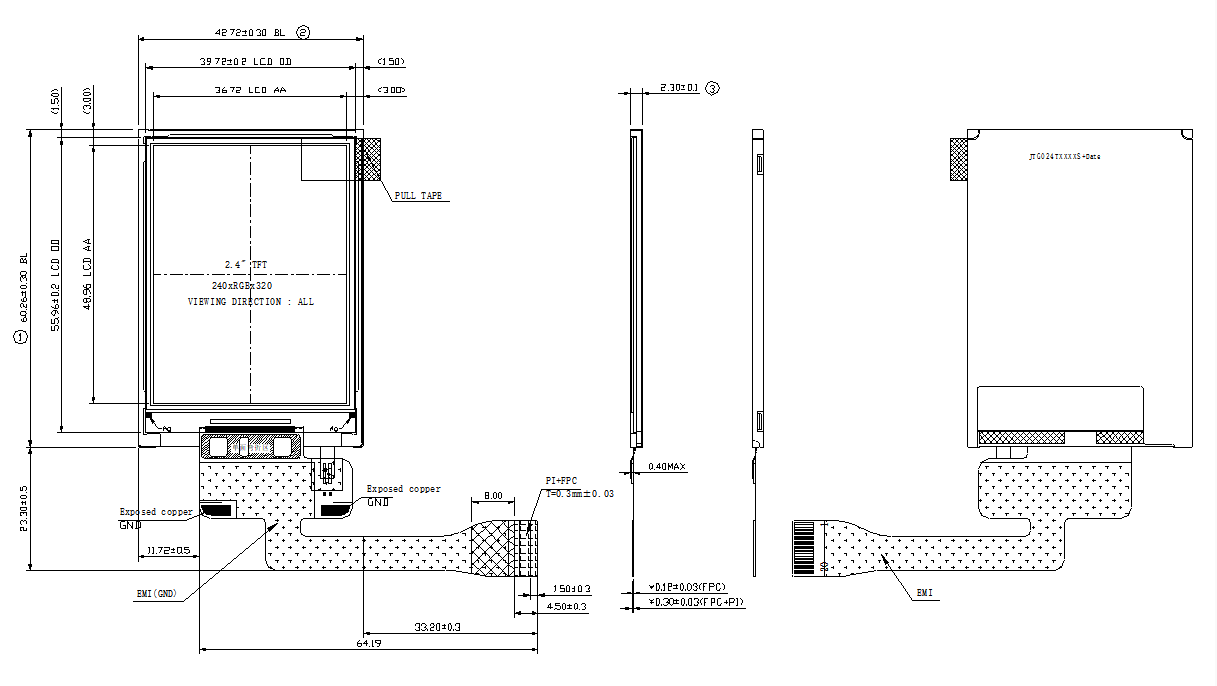

2.4" LCD, 2.4 inch 240*320 MCU/SPI/RGB TFT LCD Drawing
