High-performance 5.7-inch IPS LCD display screen offering excellent visual clarity and wide viewing angles, suitable for various industrial and commercial applications.

• High-quality IPS panel technology for superior color reproduction
• Multiple brightness options for different lighting conditions
• Wide operating temperature range for industrial applications
• Multiple interface options for flexible system integration
• Compact module design with slim profile

640x480 TFT IPS Display Module, RGB Interface TFT IPS Display Module, 5.7-Inch TFT IPS Display Module

About this item JT-5.7IPSTW

Discover the clarity and vibrancy of our 5.7-Inch TFT IPS Display Module, designed for superior visual performance in a compact form factor. This high-quality display module offers a crisp 640x480 resolution, ensuring sharp and detailed images that are perfect for a variety of applications, from industrial control panels to educational tools.

Key Features:

High Resolution: Enjoy clear and detailed visuals with a 640x480 pixel resolution, providing a sharp and vivid display experience.

Bright Display: With a standard brightness of 250 Nits, this display remains visible and clear even in well-lit environments, making it ideal for outdoor use or brightly lit indoor settings.

Wide Viewing Angle: The IPS technology ensures a wide viewing angle, allowing multiple users to view the screen from different angles without any significant loss in image quality.

Interface: Equipped with an RGB/LVDS/MIPI interface, this display module is easy to integrate with a variety of systems and controllers, offering flexibility and compatibility.

Durable Design: Built to last, this display module is designed to withstand the rigors of daily use, making it a reliable choice for long-term deployment.

Technical Specifications:

Display Size: 5.7 inches

Resolution: 640x480 pixels

Brightness: 250 Nits-1000 Nits

Interface: RGB/LVDS/MIPI

Viewing Angle: Wide-angle IPS technology 80/80/80/80

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Ideal Applications:

This 5.7-Inch TFT IPS Display Module is perfect for applications requiring a balance of high resolution, brightness, and durability. Whether you're looking to enhance the display capabilities of your industrial equipment, create an engaging educational setup, or develop a user-friendly interface for your latest project, this display module offers the performance and reliability you need.

Asolute Maximum Ratings

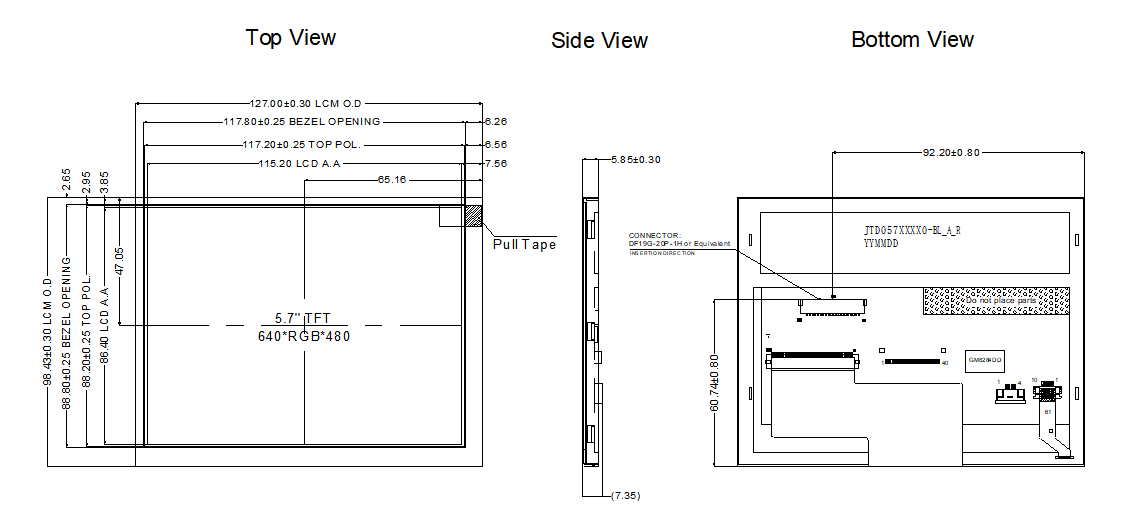

5.7" LCD Landscape, 5.7 inch MIPI/RGB/LVDS 640*480 TFT LCD Drawing

Why Choose Our Display Module?

Quality Assurance: Each module is tested for quality and performance to ensure you receive a product that meets the highest standards.

Customer Support: Our dedicated support team is ready to assist you with any questions or concerns, ensuring a smooth integration and operation of the display module.

Customization Options: Looking for specific customizations? Contact us to discuss how we can tailor this display module to fit your unique requirements.

Upgrade your visual display with our 5.7-Inch TFT IPS Display Module and experience the difference in quality and performance. Order now and take the first step towards enhancing your project with a reliable and high-performance display solution.
