9.0 Inch IPS 2 Wheelers LCD Display Screen 1280x720 Resolution 500cd/M2 Luminance
9.0 Inch IPS 2 Wheelers LCD Display Screen 1280x720 Resolution 500cd/M2 Luminance
9.0 Inch IPS 2 Wheelers LCD Display Screen 1280x720 Resolution 500cd/M2 Luminance
9.0 Inch IPS 2 Wheelers LCD Display Screen 1280x720 Resolution 500cd/M2 Luminance
Specifications
Brand Name :
Jingtai
Place of Origin :
ShenZhen / China
MOQ :
5pcs
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/P,D/A
Delivery Time :
1-5 weeks
Model Number :
JT-9.0IPS
Certification :
ISO9001 / ISO14000
Supply Ability :
2000K pcs per month
Packaging Details :
Standard Exportation Package
Price :
1-20
Key Words :
9.0 Inch IPS TFT
Resolution :
1260*720
Display Mode :
IPS Full Viewing Angle
Luminance :
500cd/m² (Typ) 800cd/m² (Typ)
Interface Definition :
LVDS
Touch Screen :
CTP
CTP Interface :
12C/USB
CTP Structure :
GFF/GG
Description
9.0 inch IPS LCD Display
High-performance 9.0 inch IPS LCD display offering excellent viewing angles and color reproduction.
Technical Specifications
Attribute Value
Number of pixels 1280*720 pixels
Active Area 198.912*111.888mm
Module Outline 208.36*125.10*5.49mm
Display Mode Normally Black
Viewing Angle (CR>10) 85/85/85/85 (Typ)
NTSC 70% (Typ)
Aspect Ratio 16:9
LCM Brightness 500cd/m² (Typ) 800cd/m² (Typ)
Interface LVDS
Operating Temperature -30~+80℃
Storage Temperature -30~+85℃

9-Inch Beauty Device Display Screen, 1280×720 Resolution with Capacitive Touch Panel (CTP)

9-Inch TFT LCD 1280×720 with CTP – Product Introduction

The JT-9.0IPSTW is a high-brightness IPS TFT LCD display with a resolution of 1280×720 pixels. The module measures 208.36 mm (W) × 125.1 mm (H) × 5.49 mm (D), featuring an active area of 198.912 mm × 111.888 mm and a diagonal size of 9 inches. Utilizing TN technology, this TFT module provides a typical aspect ratio of 16:9 and a wide viewing angle of 85/85/85/85 degrees, offering a cost-effective solution while enhancing the visual experience of end products.

In addition, the JT-9.0IPSTW delivers three key performance characteristics: high brightness (800 cd/m²), high contrast ratio (800:1), and anti-glare treatment. These features ensure improved image legibility under complex lighting conditions, elevating the user experience across various usage environments.

The module is equipped with an LVDS interface. The 9-inch series also supports optional interface configurations including LVDS, MIPI, and RGB, tailored to the customer’s MCU requirements. It is widely applied in instrumentation, beauty devices, GPS equipment, POS terminals, card readers, scanners, home automation, video conferencing systems, analyzers, household appliances, and security systems.

Absolute Maximum Ratings

Item

Symbol

 Values

Unit

Remark
Min. Max.

Power voltage

 DVDD -0.3 5.0 V
AVDD -0.5 13.5 V
VGH 13.0 19.0 V
VGL -12.0 -2.0 V
VGH-VGL - 31.0 V

Operation Temperature Storage Temperature

 TOP -20 70 ℃
TST -30 80 ℃
LED Reverse Voltage VR - 1.2 V Each LED Note 2
LED Forward Current IF - 25 mA Each LED

Current Consumption

(GND=AVSS=0V)

Item

Symbol

 Values

Unit

Remark
Min. Typ. Max.

Current for Driver

 IGH - 0.3 1 mA VGH =17.0V
IGL - 0.3 1 mA VGL = -5.0V
IDVDD - 5.5 10 mA VCC =3.3V
IAVDD - 32 50 mA AVDD =10.4V

Backlight Driving Conditions


Item

Symbol

 Values

Unit
Min. Typ. Max.
Voltage for LED backlight VL 8.4 9.3 10.2 V
Current for LED backlight IL 198 220 242 mA
LED life time - 30,000 - - Hr

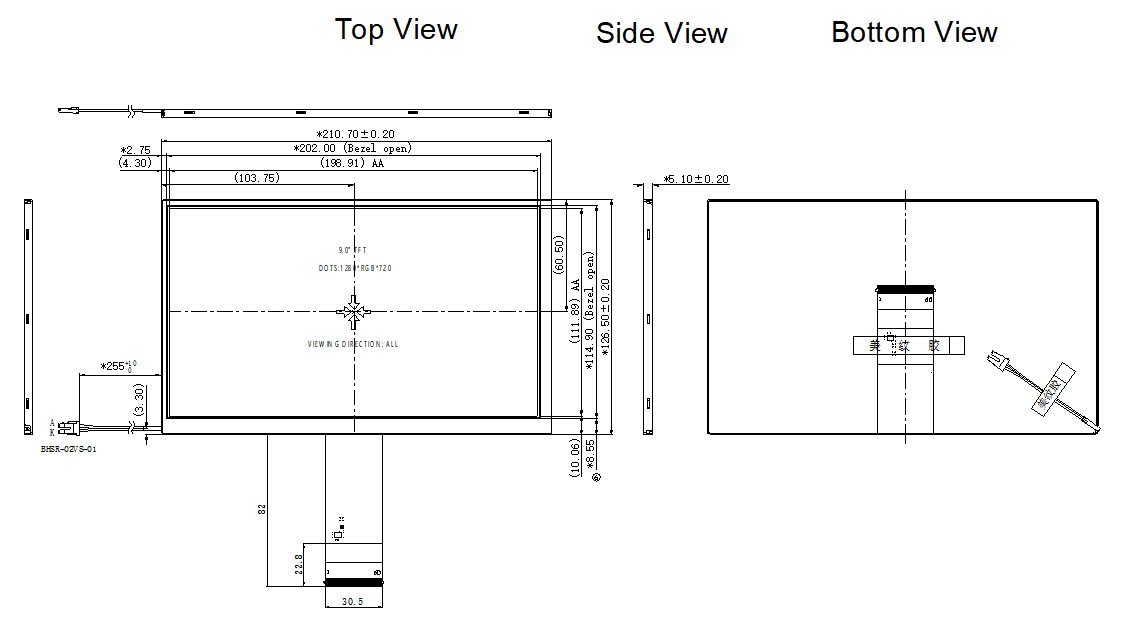

9.0" LCD 1280*720, 9.0 inch LVDS Landscape TFT LCD Drawing
