10.95 Inch IPS Medical TFT LCD Module 1200×1920 MIPI Display
10.95 Inch IPS Medical TFT LCD Module 1200×1920 MIPI Display
10.95 Inch IPS Medical TFT LCD Module 1200×1920 MIPI Display
10.95 Inch IPS Medical TFT LCD Module 1200×1920 MIPI Display
Specifications
Touch Screen :
CTP
Viewing Angle :
80/80/80/80
CTP Interface :
12C/USB
CTP Structure :
GFF/GG
Luminance :
250 cd/m²(Typ) 500 cd/m²(Typ)
Interface Definition :
MIPI
Model Number :
JT-10.95IPSFHDM
Certification :
ISO9001 / ISO14000
Price :
1-20
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Key Words :
10.95 Inch IPS FHD
Brand Name :
Jingtai
Place of Origin :
Shenzhen/China
MOQ :
5pcs
Supply Ability :
2000K Pcs Per Month
Packaging Details :
Standard Exportation Package
Resolution :
1200*1920
Description

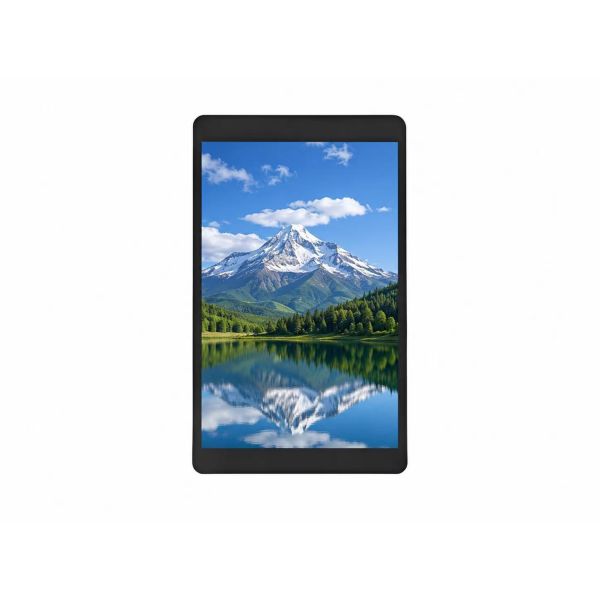

10.95 Inch IPS Medical TFT LCD Module 1200×1920 MIPI Display

Overview

The 10.95 Inch IPS Medical TFT LCD Module features a 1200×1920 high-resolution display designed for modern medical and healthcare equipment. Equipped with IPS technology and a MIPI interface, the module provides stable image performance, wide viewing angles, and clear visual presentation for professional display applications. Its portrait display structure and compact design make it suitable for medical systems requiring efficient space usage and accurate interface display.


Display Features

  • 10.95 inch IPS TFT LCD display with 1200×1920 resolution
  • Wide viewing angle of 80/80/80/80 for consistent image visibility
  • Normally Black display mode improves image depth and display clarity
  • MIPI interface supports stable and efficient signal transmission


Performance & Reliability

  • Contrast ratio up to 1500:1(Typ) for enhanced image detail
  • Brightness up to 500 cd/m²(Typ) supports clear indoor visibility
  • Operating temperature range from -20°C to +60°C for stable daily operation
  • Durable module structure supports long-term system integration


Medical Applications

This display module is suitable for patient monitoring systems, portable medical devices, diagnostic equipment, and healthcare control terminals. The portrait-oriented display layout helps improve information presentation and supports modern medical user interfaces requiring clear data visualization and smooth graphical performance.



Product Specifications

Number Of Pixels

1200*1920pixels

Active Area

238.5*143.1mm

Module Outline

247.1*148.4*1.95mm

Aspect Ratio

5:3

Display Model

Normally Black

Viewing Angle(CR>10)

80/80/80/80

Contrast Ratio

1000(Min) 1500(Typ)

NTSC

56%TYP

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ)

Interface

MIPI

Operating Temperature

-10~+50℃

Storage Temperature

-20~+60℃

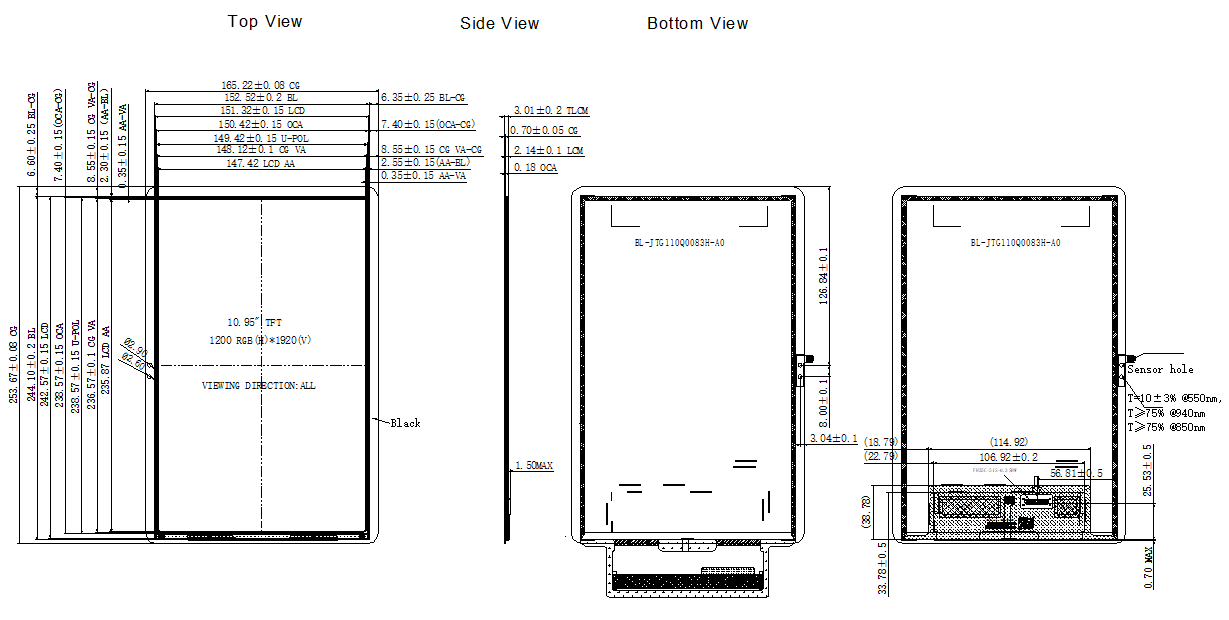

10.95 Inch IPS Medical TFT LCD Module Drawing



10.95 Inch IPS Medical TFT LCD Module 1200×1920 MIPI Display


10.95 Inch IPS Medical TFT LCD Module 1200×1920 MIPI Display10.95 Inch IPS Medical TFT LCD Module 1200×1920 MIPI Display
