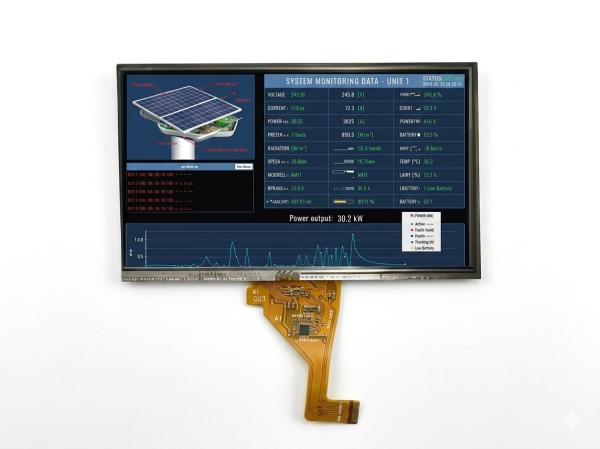

7.0 Inch TN TFT LCD Module 800*480 Multi‑brightness RGB Display For Medical Equipment

Visual Display Performance
This 7‑inch 16:9 TN TFT LCD module adopts normally white display mode, with a typical contrast ratio of 800, which can clearly present medical images, text data and detection indicators. The 51% NTSC color gamut meets the basic color expression requirements of medical scenarios, ensuring stable color restoration for conventional monitoring information. With multi‑grade brightness options from 250 cd/m² to 1000 cd/m², the screen can adapt to different light environments in medical wards and operating rooms, improving information readability for medical staff.

Interface & Structural Compatibility
Equipped with standard RGB interface, the module can achieve good matching with mainstream medical embedded control boards. Mature signal transmission structure ensures stable data output and reduces display flicker or lag during long‑time operation. The compact outline size of 164.899.85.7mm supports embedded installation in limited device space, simplifying equipment assembly and later maintenance work.

Environmental Adaptability
The display module can work stably in the temperature range of -20℃ to +70℃, coping with daily temperature changes in medical environments. The storage temperature range reaches -30℃ to +80℃, providing stable performance guarantee for long‑term transportation and equipment standby. Its 60/70/70/70 viewing angle meets the conventional multi‑angle viewing needs of medical monitoring terminals, suitable for most routine medical display scenarios.

Application Scenarios
• Portable medical monitoring equipment for vital sign data display
• Ward bedside information display terminals
• Conventional medical testing instruments and analysis equipment
• Embedded display modules for small‑scale medical electronic devices

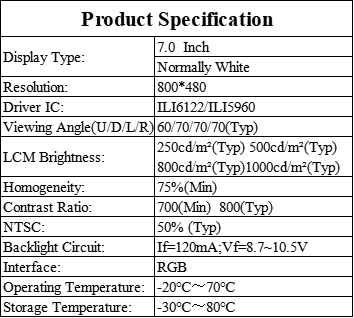

Product Specifications

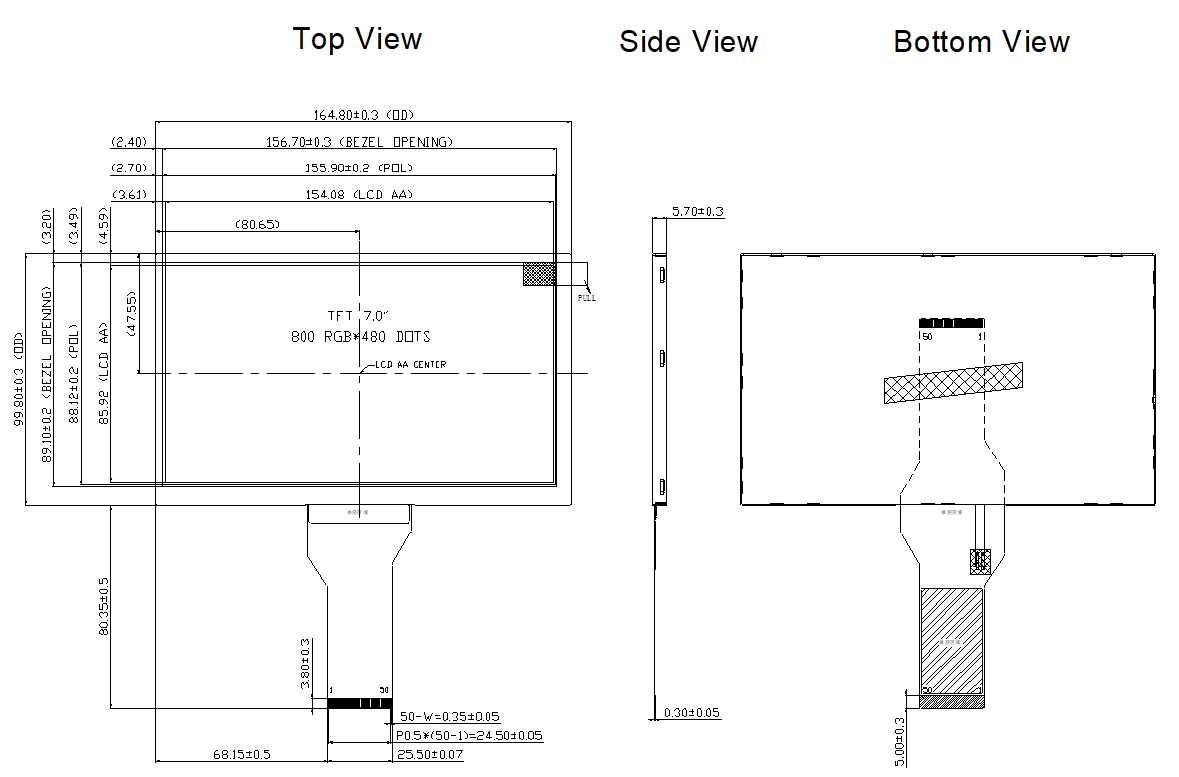

7.0 Inch TN TFT LCD Module Drawing
