6. 95 Inch TFT LCD Module For Medical Devices 600×1024 MIPI High Brightness Display
6. 95 Inch TFT LCD Module For Medical Devices 600×1024 MIPI High Brightness Display
6. 95 Inch TFT LCD Module For Medical Devices 600×1024 MIPI High Brightness Display
6. 95 Inch TFT LCD Module For Medical Devices 600×1024 MIPI High Brightness Display
Specifications
Packaging Details :
Standard Exportation Package
Price :
1-20
Model Number :
JT-6.95IPSWSM
Interface Definition :
MIPI
Brand Name :
Jingtai
Place of Origin :
Shenzhen/China
MOQ :
5pcs
CTP Interface :
12C/USB
Resolution :
600*1024
Display Mode :
IPS Full Viewing Angle
Key Words :
6. 95 Inch IPS WS
Delivery Time :
1-5 weeks
Luminance :
250 cd/m²(Typ) 450 cd/m²(Typ)
CTP Structure :
GFF/GG
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Supply Ability :
2000K Pcs Per Month
Certification :
ISO9001 / ISO14000
Touch Screen :
CTP
Description

6. 95 Inch TFT LCD Module For Medical Devices 600×1024 MIPI High Brightness Display

This 6.95 inch TFT LCD module is designed for medical devices and diagnostic equipment. It features a 600×1024 resolution and MIPI interface, providing stable and clear display performance. The IPS technology ensures wide viewing angles and consistent color, making it suitable for hospital monitors, patient monitoring systems, and other medical display applications. Its compact structure and wide operating temperature range support reliable operation in various medical environments.


Features

  • 6.95 inch IPS TFT LCD display with 600×1024 resolution
  • MIPI interface for efficient and stable signal transmission
  • Wide viewing angle for clear visibility from different positions
  • Normally black display mode for improved contrast and clarity
  • High brightness options suitable for medical environments
  • Compact and lightweight module design for easy integration
  • Wide operating temperature range: -30°C to +80°C


Applications

This TFT LCD module is suitable for hospital patient monitoring systems, medical diagnostic equipment displays, and clinical laboratory instruments. It can also be used in portable medical devices, embedded medical control systems, medical imaging devices, and other healthcare equipment that requires stable display performance.


Why Choose This Module

  • Stable display performance ensures reliability in medical applications
  • IPS technology provides consistent color and wide viewing angles
  • Compact design simplifies integration into medical devices
  • High brightness and contrast improve readability in various lighting conditions
  • Supports customization to meet specific project requirements
  • Wide temperature range ensures stable operation in different medical environments


Product Specifications

Number Of Pixels

600*1024pixels

Active Area

89.28*152.37mm

Module Outline

95*163.3*2.55mm

Aspect Ratio

16:9

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

700(Min) 800(Typ)

NTSC

50%TYP

LCM Brightness

250 cd/m²(Typ) 450 cd/m²(Typ)

Interface

MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

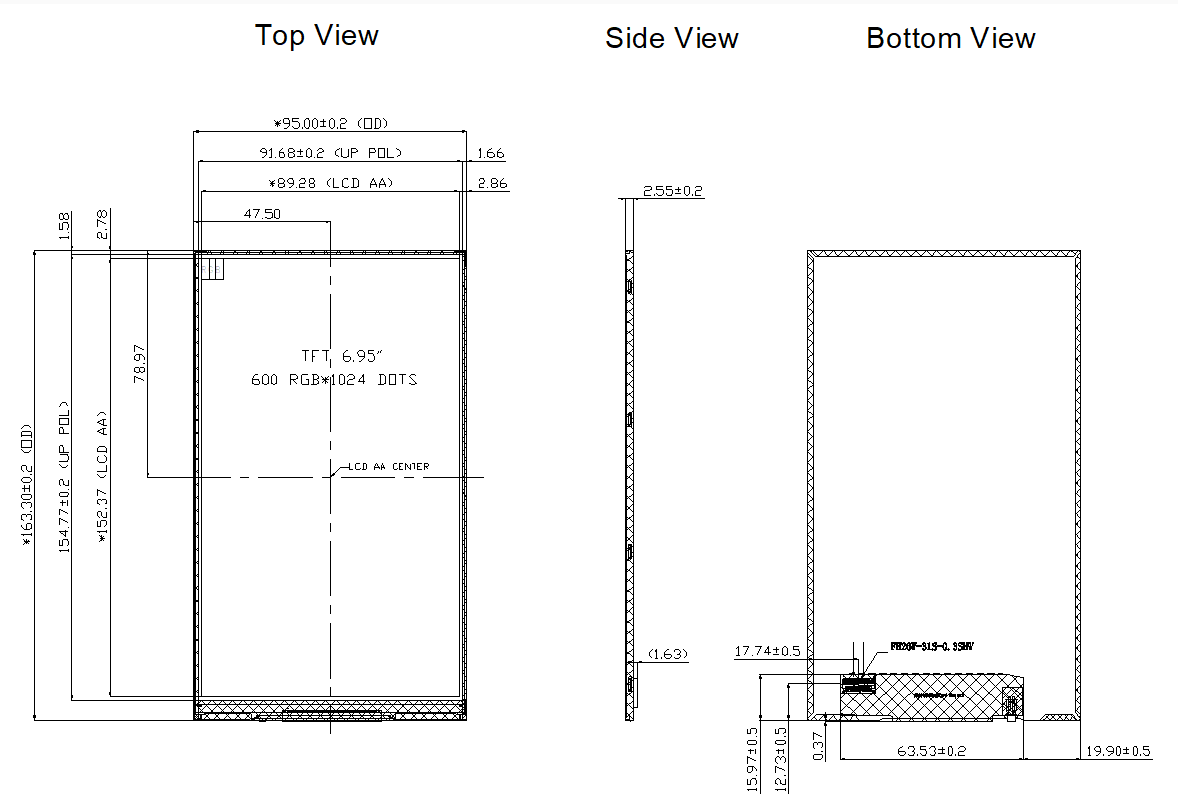

6. 95 Inch TFT LCD Module Drawing For Medical Devices

6. 95 Inch TFT LCD Module For Medical Devices 600×1024 MIPI High Brightness Display


6. 95 Inch TFT LCD Module For Medical Devices 600×1024 MIPI High Brightness Display6. 95 Inch TFT LCD Module For Medical Devices 600×1024 MIPI High Brightness Display
