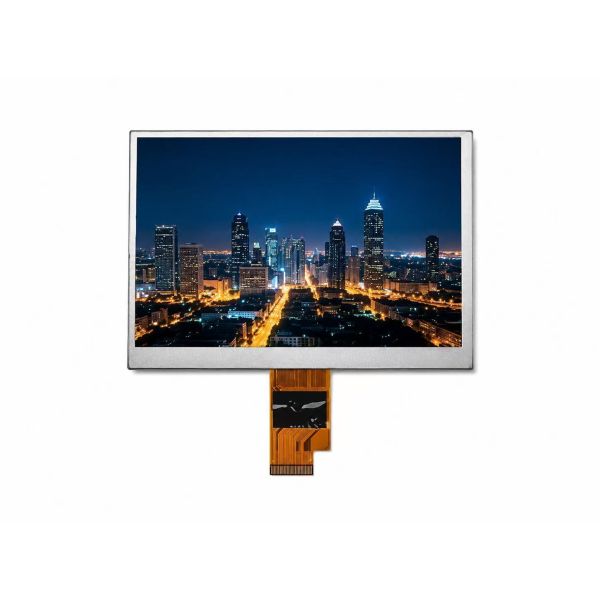

7.0 Inch TN TFT LCD Display Module 1024×600 Medical Display With MIPI Interface
7.0 Inch TN TFT LCD Display Module 1024×600 Medical Display With MIPI Interface
Specifications
CTP Interface :
12C/USB
Luminance :
250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)
Supply Ability :
2000K Pcs Per Month
Place of Origin :
Shenzhen/China
Brand Name :
Jingtai
Payment Terms :
T/T,Western Union,L/C,MoneyGram,D/A,D/P
Delivery Time :
1-5 weeks
Display Mode :
TN
Price :
1-20
Key Words :
7.0 Inch TN WS
Resolution :
1024*600
Interface Definition :
MIPI
Packaging Details :
Standard Exportation Package
Model Number :
JT-7.0TNWSM
Certification :
ISO9001 / ISO14000
MOQ :
5pcs
Touch Screen :
CTP
Description

7.0 Inch TN TFT LCD Display Module 1024×600 Medical Display with MIPI Interface

Stable Display Performance
Crafted for professional medical use, this 7 inch 16:9 TN display delivers steady visual output around the clock. The 1024*600 resolution presents clinical data, test results and graphical content sharply. Matched with proper color gamut and contrast ratio, it ensures clear visibility in various indoor environments, fully meeting the daily working demands of medical staff.


Reliable Connection & Compact Design
This LCD module adopts mainstream MIPI bus, delivering quick signal transmission and strong anti-interference ability to fit most medical control mainboards. Boasting a slim body of 3.45mm, it takes up minimal space inside devices. The standard overall size simplifies installation and structural design, helping clients cut down production and development costs effectively.


Great Adaptability & Viewing Experience
It runs reliably in temperatures ranging from -20℃ to +70℃, suitable for diverse medical working environments. The extended storage temperature range safeguards the product during delivery and long-term standby. Its multi-direction viewing angles enable multiple people to view the screen clearly from different positions, ideal for team work in medical scenarios.


Applicable Fields
• Handheld medical inspection devices
• Digital display terminals in hospital wards
• Laboratory testing and analytical equipment
• Custom embedded screens for home healthcare products

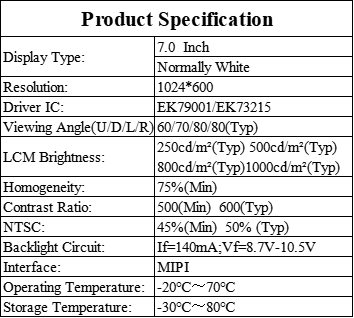

Product Specifications

Number Of Pixels

1024*600pixels

Active Area

154.21*85.92mm

Module Outline

164.9*100*3.45mm

Aspect Ratio

16:9

Display Model

Normally White

Viewing Angle(CR>10)

60/70/80/80

Contrast Ratio

500(Min) 600(Typ)

NTSC

50%TYP

LCM Brightness

250 cd/m²(Typ) 500 cd/m²(Typ) 800 cd/m²(Typ) 1000 cd/m²(Typ)

Interface

MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

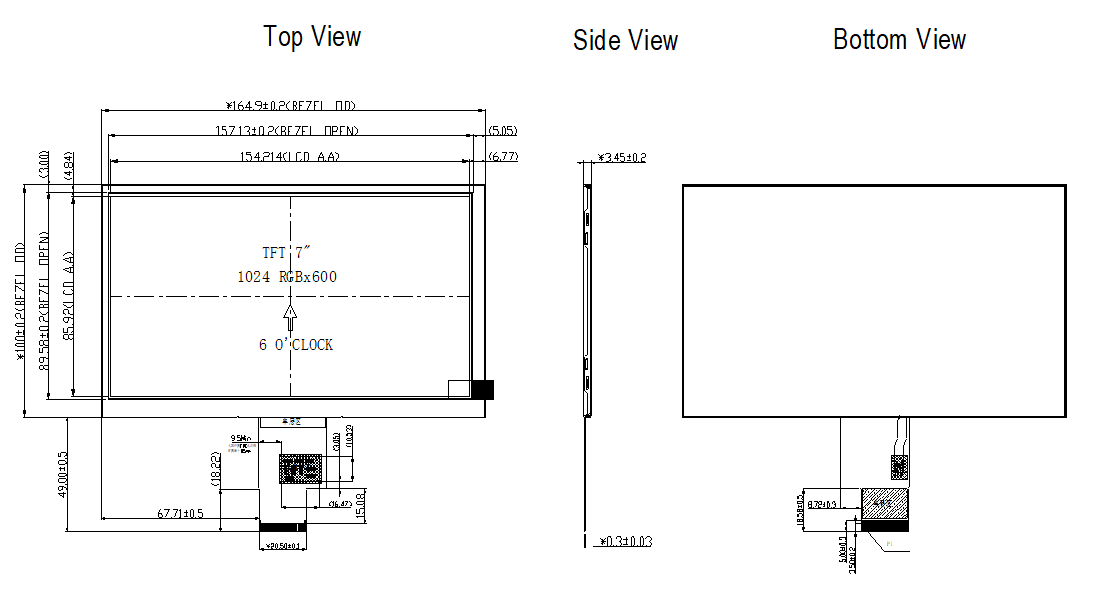

7.0 Inch TN TFT LCD Module Drawing
