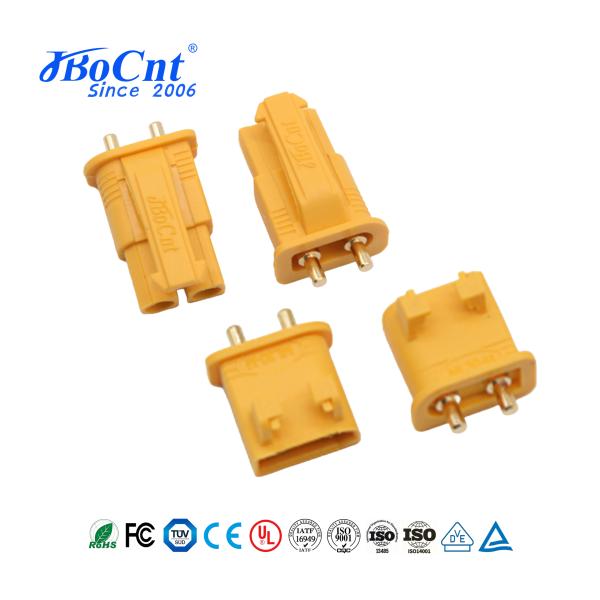

Jbocnt Group TX30L Bullet Plug Cable Connector With Locking Latch RC Battery Charger Connector Device Replacement TX30 Connector Accessories

Product advantages

What is the size?

Male

Female

The advantages and features of the TX30L connector are as follows:

● 1. Current Carrying Capacity

As a connector designed for high-power applications, the TX30L boasts a rated current carrying capacity of 15A and above. It efficiently conducts current, meeting the low-power power needs of power tools, industrial equipment, and new energy devices (such as small aircraft, drones, and lithium-ion batteries for model aircraft), while avoiding the risk of overheating and burns caused by current overload.

● 2. High-Strength Anti-Mistrap Design

The connector body features a yellow plastic shell with a unique latch/boss structure (multiple latch details can be seen in the image). This physical locking mechanism provides "anti-mismating" protection:

Once locked, the latch provides moderate and secure insertion and removal force, preventing loosening after insertion, ensuring a stable connection.

● 3. Industrial-Grade Durability
> Materials and Craftsmanship: The plastic housing is made of high-performance flame-retardant plastic (e.g., UL94V-0 rated), which is heat-resistant and aging-resistant, preventing brittleness even after long-term use. The internal metal terminals (copper alloy/gold-plated) are surface-treated to resist oxidation and corrosion, ensuring excellent conductivity.
> Mechanical Strength: The pluggable structure has been tested for multiple plug-in and pull-out cycles (e.g., over 5,000 times), ensuring long mechanical life and adaptability to industrial scenarios involving frequent plugging and unplugging (e.g., power tool charging and industrial equipment maintenance).
● 4. Electrical Performance Reliability
Low Contact Resistance: The precise plug-in connection between the terminals and the pins results in extremely low contact resistance (typically <5mΩ), reducing power loss and improving power supply efficiency.
High Insulation: The insulation between the plastic housing and the terminals is well-designed, ensuring the withstand voltage (e.g., over 250VAC) and creepage distance meet safety standards, preventing the risk of leakage and breakdown.

● 5. Environmental Adaptability

Designed for harsh industrial and outdoor environments, the TX30L features:

Waterproof and Dustproof: Select models support IP67 waterproofing (specific protection level required), preventing moisture and dust intrusion and causing short circuits.

Wide Temperature and Weather Resistance: Operating over a wide temperature range (e.g., -40°C to +85°C), the connector maintains stable electrical conductivity even in extreme temperatures, making it suitable for complex environments such as outdoor and industrial sites.

6. Safety and Protection: Anti-Electric Shock Design: The plastic housing fully encloses the metal terminals, eliminating exposed conductive parts to prevent accidental electric shock.

Overload Protection: Select models integrate overload and short-circuit protection mechanisms (see product details), automatically shutting off power in the event of an abnormality, ensuring equipment and personnel safety.

The TX30L connector's core advantages are its combination of high current carrying capacity, anti-misinsertion safety, industrial-grade durability, and environmental adaptability. It precisely meets the high-power supply requirements of power tools, industrial equipment, and new energy applications, and is a leading example of a highly reliable and secure connection solution.

(Note: The above is a general industry logic analysis. Specific parameters should be based on the product manual or manufacturer's technical documentation. Different brands/models of TX30L may have different details.)

OUR CUSTOMERS

FAQ

‌1. Q: Are you a factory or a trading company? ‌
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.

‌2. Q: What is the minimum order quantity (MOQ)? ‌
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.

‌3. Q: Can free samples be provided? ‌
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.

‌4. Q: What are the payment methods? ‌
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.

‌5. Q: How long is the delivery cycle? ‌
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.

‌6. Q: What should I do if there are quality problems? ‌
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
