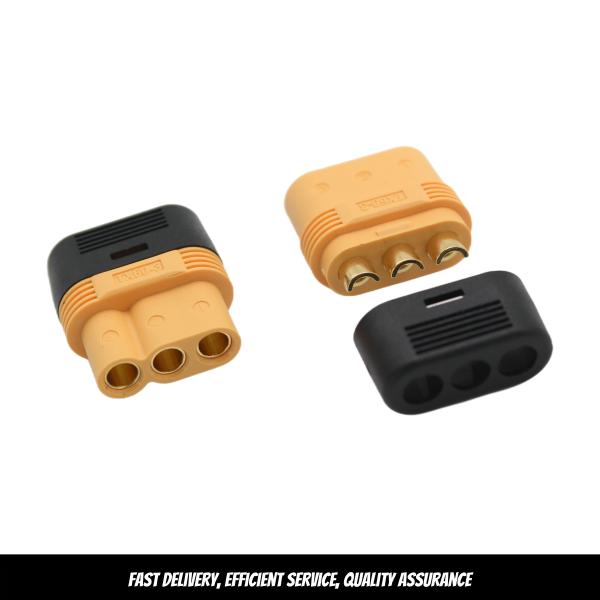

TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector
TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector
TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector
TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector
TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector
TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector
Specifications
Brand Name :
Jbocnt
Model Number :
TX60-3 plug male and female
Certification :
CE、TUV、UL、RoHS
Place of Origin :
Shenzhen, China
MOQ :
500 sets
Price :
Negotiable
Payment Terms :
,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability :
10000/day
Delivery Time :
Sample: 1-3 days; Small order: 3-10 days; Bulk order: 10-18 days
Packaging Details :
High quality export packaging
Name :
Three Pin Connector Male And Female
Hardware materials :
Brass/Gold Plated
Mechanical life :
1000 times
Product weight :
9.80g
Rated current/ instantaneous current :
30A/60A
Operating temperature :
-20°C to 120 °C
Housing Material :
PA66
Wiring range :
12AWG
Recommended welding standards :
480℃/4S
Description

Jbocnt Group High Quality Power Battery TX60-3 Plug Male And Female 3-Pin Connector With Sheath Suitable For Brushless Motor Drone Lithium Battery Model Aircraft Connector


Product advantages


☑ Compact structure, high space utilization
☑ Adopt optimized structure, enhance heat dissipation
☑ Easy to install and disassemble
☑ Low resistance, high conductivity, reduce energy loss


Product Introduction


This product adopts new design standards, has low impedance and excellent conductivity, is small in size and widely used. It has good current carrying capacity and reliable connection performance, and is often used to connect battery packs and electronic devices, especially in remote control models, drones, electric bicycles and other fields


Product Performance


TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector

TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector


TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector


What is the size?


TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector




OUR CUSTOMERS


TX60-3 Plug Three Pin Connector Male And Female For Lithium Battery Model Aircraft Connector


FAQ


1＞. Q: Can you help to design?

A: Yes, we are an ODM / OEM company, beyond we have been specializing in wire harness & Cable assembly since 2010.

2＞. Q: When will you start to help design?

A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.

3＞. Q: What if quality issues occur when customer discover?

A: Our quality and engineer team will positively respond for the quality issues with 72 hours, as we are intend to make long-stand strategy with customer and the value is to provide better service.

4＞. Q: Do you have any standard products to cut down customers lead time for prototype and tooling cost?

A: Yes, we have developed over 600 sets of molds and some of them can be used for customer directly. Besides, we specialize in wire harness over 10 years with more than 5000 products
