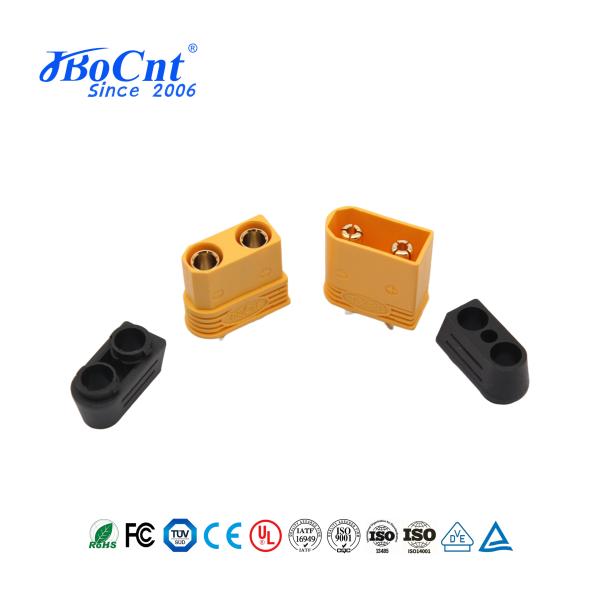

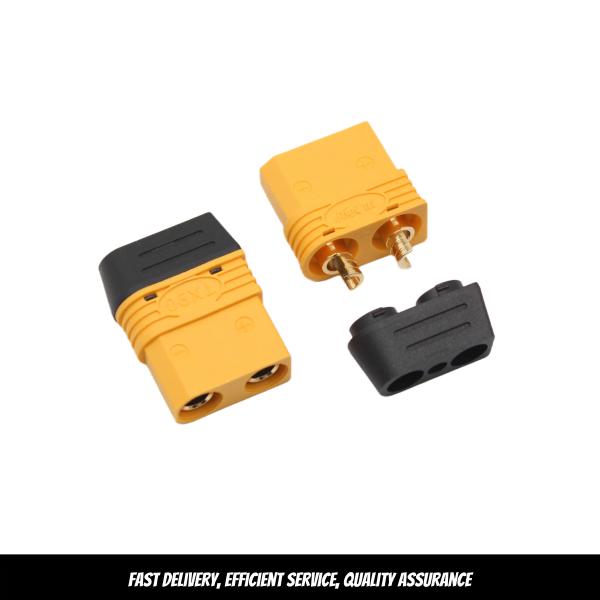

Jbocnt Group TX90 Injection Molding PCB Panel Mount Connector Model Aircraft Plug Male And Female Connector Suitable For Brushless Motor Drone Lithium Battery Model Aircraft Connector

Product advantages

What is the size?

Male

Female

As a high-current electrical connection solution, the TX90 connector offers advantages and features in terms of electrical performance, safety, reliability, applicability, and installation and maintenance:

●1. Outstanding Current Carrying Capacity

The TX90 is a high-current rated connector, typically supporting currents of 40A and above (depending on product design and standards), far exceeding the capabilities of standard low-current connectors. This meets the power supply needs of high-power loads such as electric vehicles, energy storage devices, and industrial motors, while avoiding the risks of overload and overheating associated with low-current connectors.

●2. Anti-Mistakable Insertion and Identification
Color coding: Positive (yellow) and negative (black) polarity are color-coded for quick polarity identification, reducing the likelihood of wiring errors.

Structural Anti-Mistakable Insertion: The male and female connectors' mating structures (e.g., protrusion/groove matching) are precisely matched to prevent reverse polarity or incorrect insertion, ensuring physical circuit safety.

●3. Waterproof and dustproof, highly adaptable to harsh environments

Adopting a waterproof sealing design (e.g., O-rings and injection-molded waterproof structure), it meets IP67/IP68 protection levels and can operate stably in extreme outdoor/industrial environments such as rain, snow, humidity, and dust, preventing water intrusion and short circuits, as well as dust intrusion and oxidation.

●4. High-temperature resistance and material reliability

Material heat resistance: The insulating housing is primarily made of high-temperature, flame-retardant plastics (e.g., PA and PBT), and the metal terminals are copper-plated with nickel or silver (low resistance and oxidation resistance), ensuring stable insulation and conductivity even in high temperatures (e.g., charging/high-current heating).

Long-term stability: The metal contacts are plated for corrosion and wear resistance, maintaining low contact resistance even after repeated plugging and unplugging, reducing heat loss.

●5. Operational convenience and reliability

Quick plugging and unplugging: No tools are required; plugging and unplugging can be performed manually, significantly improving assembly and maintenance efficiency (e.g., electric vehicle battery replacement and equipment repair). Anti-loosening design: After plugging in, the connector locks in place with snaps and threads to prevent loosening caused by vibration and jolts, ensuring a stable connection.
●6. Multi-scenario adaptability
Strong compatibility: Widely used in applications with high current and environmental requirements, such as electric vehicles (lithium battery packs), energy storage equipment, industrial power supplies, and power tools, it is a universal connection solution for high-current scenarios.
Standardized design: Some TX90 connectors adhere to industry-standard dimensions and performance standards, enabling interoperability with similar products, reducing system compatibility risks.

These advantages make it the preferred choice for high-current, high-reliability, and harsh-environment scenarios, balancing the demands of high current transmission with safety and stability.

OUR CUSTOMERS

FAQ

‌1. Q: Are you a factory or a trading company? ‌
A: We are a connector manufacturer with 19 years of experience. We also hold ISO9001, CE, UL and other global certifications and support on-site factory inspections.

‌2. Q: What is the minimum order quantity (MOQ)? ‌
A: The MOQ of standard products is 500 pieces. Customized products need to be evaluated based on the process. Some products support 100 trial orders.

‌3. Q: Can free samples be provided? ‌
A: 1-2 free samples can be provided, but the customer needs to bear the international shipping costs; when there are many sample categories, the sample fee can be fully refunded after placing an order.

‌4. Q: What are the payment methods? ‌
A: Support T/T (30% advance payment + 70% see the copy of the bill of lading), LC, Paypal (small orders), specific details can be negotiated.

‌5. Q: How long is the delivery cycle? ‌
Answer: 15-20 days for conventional products, 25-30 days for customized products (including sample confirmation time), and an additional 10% fee is required for expedited orders.

‌6. Q: What should I do if there are quality problems? ‌
Answer: We provide a 12-month warranty. You can apply for return or reissue with the test report within 7 days after receiving the goods. Please consult the engineer for specific questions
