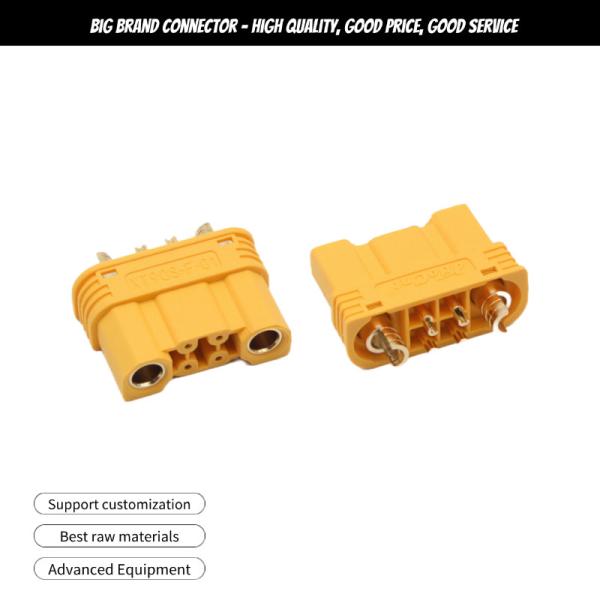

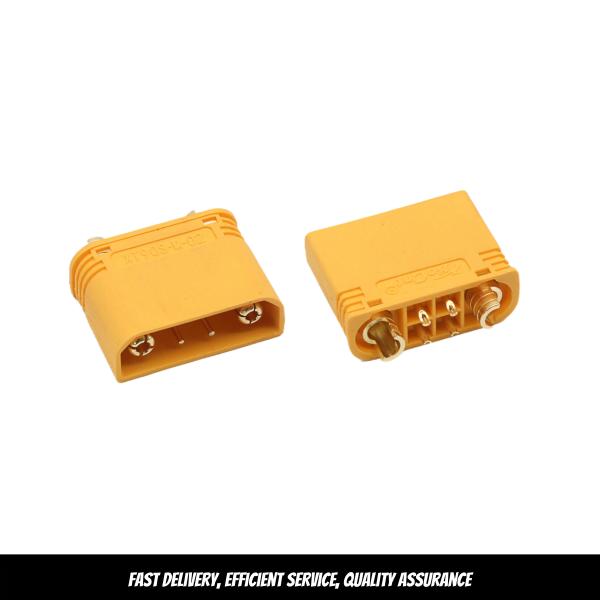

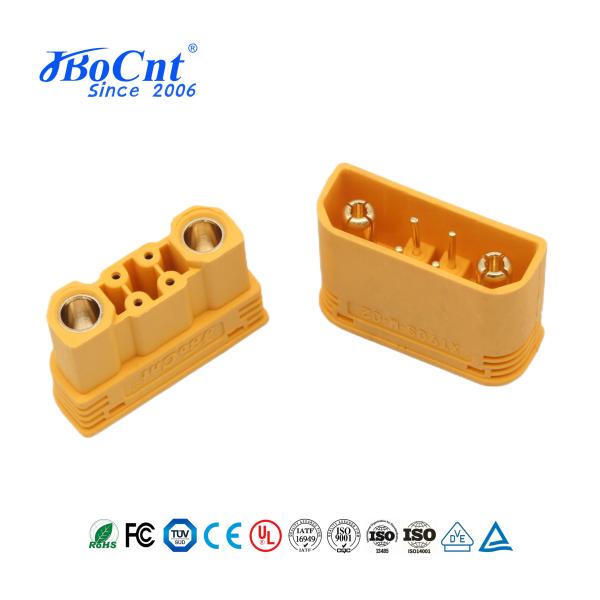

XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor
XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor
XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor
XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor
XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor
XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor
Specifications
Brand Name :
Jbocnt
Model Number :
XT90S
Certification :
CE , TUV , UL , RoHS
Place of Origin :
Shenzhen, China
MOQ :
500 sets
Price :
Negotiable
Payment Terms :
,T/T,Western Union,D/P,D/A,L/C,MoneyGram
Supply Ability :
10000/day
Delivery Time :
Sample: 1-3 days; Small order: 3-10 days; Bulk order: 10-18 days
Packaging Details :
High quality export packaging
Name :
PCB Panel Mount Connector
Hardware materials :
Brass / Gold Plated
Product weight :
8.70g
Mechanical life :
1000 times
Operating Temperature :
-20°C to 120 °C
Rated current/ instantaneous current :
40A/80A
Housing Material :
PA66
Wiring range :
10AWG
Recommended welding standards :
480℃/4S
Description

Jbocnt Group XT90S PCB panel mount connector model aircraft plug male and female connector suitable for brushless motor drone lithium battery model aircraft connector


Product advantages


☑ Compact structure, high space utilization
☑ Adopt optimized structure, enhance heat dissipation
☑ Easy to install and disassemble
☑ Low resistance, high conductivity, reduce energy loss
☑ Insert a variety of auditory and visual feedback
☑ Adapt to vibration, temperature changes and humid environments


XT90S RC Drone Model Aircraft Power Supply Battery Connector Adapter, 2+4 Plugs with Signal Pin Shielding, Male and Female Connectors
- For RC Drone Model Power Connection

Connector Introduction

- Contact Resistance: Main Copper Plate 0.4 ohms, Signal Pin 2 ohms
- Rated Current: Main Copper Plate 30A, Signal Pin 5A
- Rated Voltage: DC 500V
- Instantaneous Current: 60A
- Flame Rating: UL94VO
- Recommended Cycles: 1000 Times
- Operating Temperature: -20°C to 120°C

- XT90S Material:
The plastic components are PA66 V0 flame retardant, and the copper components are gold-plated copper. These authentic materials offer excellent corrosion resistance and low electrical resistance, enabling the XT90S high-current hybrid connector to operate more efficiently.

- XT90S Usage:
The XT90S is a practical lithium-ion battery integrated plug.

Applications of the xt90S:
It can be used in lithium-ion batteries, controllers, motors, battery protection panels, solar street lights, landscape lights, electric vehicles, energy storage devices, charging stations, and other applications requiring high current connections.


What is the size?


Male


XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor


Female


XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor



OUR CUSTOMERS


XT90S PCB Panel Mount Connector , Aircraft Plug Male And Female Connector For Brushless Motor


FAQ


‌

FAQ

Q1: Are you a factory or a trading company? What is the minimum order quantity?
Yes, we are trading company,have authorized agents for multiple brands direct salesand have some inventory items. You can order 1 piece for testing.


Q2: ls it possible to get a sample?
We offer sample when you pay sample fee.


Q3: How much for the shipping cost?
According to your quantity and country. We are check the freight for you.
and choosebest shipping way.


Q4: How long time can iget my package?
Usaually, the ready time is 3-5 days, the shipping time is 3-7 days


Q5: Can you provide OEM&ODM services ?
Of course, including software, packaging, product logos, etc. For more details, pleaseconsult customer service,


Q6: How do you ensure the quality of products?
Our products comply with the 1S09001 quality system and CE/FCC/ROHS standardsAll of our products undergo strict quality control inspections during the productionprocess. Especially for exported products, a 72 hour aging test is required to ensurethat there are no issues before shipment.


Q7:How do you arrange the transportation?
lf the sample order is recommended to be shipped by express delivery (7-10 days) orair freight (10-15 days), and if mass production is recommended, sea freight is morefavorable.Please consult customer service for more details!


Any other question, please feel free to contact us. Thanks
