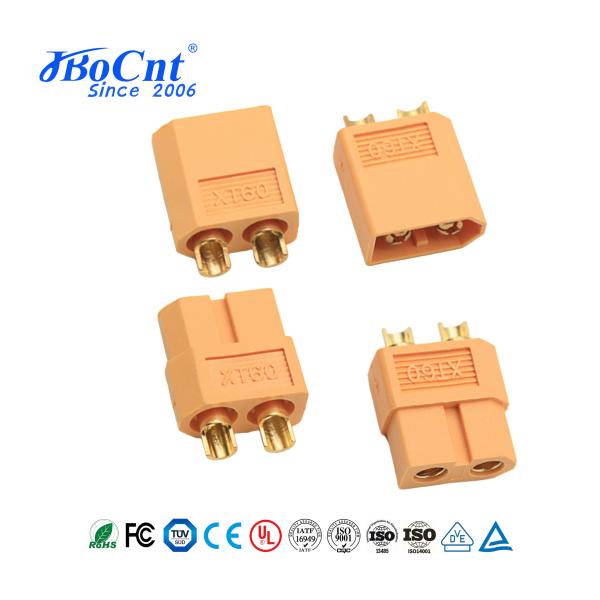

Jbocnt Group Gold Plated XT60 Connector Male Female Bullet Type Aircraft Model Plug With Anti-Spark For Car Batteries

Product advantages

Dimensional drawings (if the image is too small, please refresh the page again)

M

F

The XT60 connector is a high-current power connection component widely used in applications such as model aircraft and drones. Its core advantages and selling points can be analyzed from the perspectives of performance, safety, reliability, and convenience:

1. High current carrying capacity, suitable for high-power applications

The XT60 connector utilizes large-diameter metal contacts, with a typical rated current of up to 30A (in actual use, some high-quality products can carry higher currents at a reasonable temperature rise), enabling efficient transmission of high-power energy. It is a key component for ensuring power supply for devices with large-capacity batteries and high-thrust motors, such as large drones and professional model aircraft.

2. Reverse polarity protection and electric shock protection for maximum safety
Reverse polarity protection: The metal contacts of the plug and socket are positioned and shaped to match the "one positive, one negative" logic, physically preventing reverse insertion, eliminating the risk of short circuits and device damage. Insulation Protection: The housing is constructed of high-temperature-resistant, high-strength insulating materials (such as PBT engineering plastics), ensuring that metal contacts are completely enclosed, preventing exposed contacts from electric shock and significantly reducing safety hazards during operation.
3. Durable and Reliable, Withstanding Harsh Environments
Vibration/Shock Resistance: The connector's snap-on design and optimized metal contact welding process maintain a stable connection in environments subject to high-frequency vibration and shock, such as drone flights and model aircraft competitions, preventing loosening and power outages.
High and Low Temperature Resistance: The insulation material and metal contacts feature strong temperature resistance (e.g., a wide temperature range of -40°C to 120°C), ensuring operation in extreme cold and heat, making them suitable for outdoor use and high altitudes.
4. Convenient Assembly and Disassembly for Improved Work Efficiency
Quick Plug and Unplug: The snap-on design requires no tools, allowing for easy finger insertion and removal, significantly reducing equipment assembly and maintenance time and costs, while improving operational efficiency. Anti-oxidation and Anti-Poor Contact: High-quality XT60 connectors utilize gold and silver plating processes on their metal contacts to effectively reduce oxide buildup, ensuring stable contact resistance over long-term use and minimizing the risk of power outages.
5. Industrial-grade universal standards and strong ecological compatibility

The XT60 is a highly versatile, standardized connector for model aircraft. Its interfaces enable "plug-and-play" integration across different brands of equipment (such as batteries, motors, and receivers), lowering the barrier to device compatibility and facilitating subsequent upgrades and modifications.

6. Optimized size and weight for lightweighting

Compared to larger connectors (such as the XT90), the XT60 offers a more compact and lighter size while maintaining current-carrying capacity. This makes it ideal for lightweight devices (such as small drones and micro-model aircraft), achieving a balance between power transmission efficiency and device weight.

These advantages make the XT60 connector the preferred power connection for high-current applications like model aircraft and drones, offering a balanced combination of performance, safety, and convenience, making it a recognized industry-leading, cost-effective solution.

OUR CUSTOMERS

FAQ

Q: What should I provide for a custom order?
A:
1. Contact us.
2. Please send us your specifications (including connector part number and cable size, AWG, length, and color).
3. We will produce samples for the buyer to check quality and test.
4. Sign the purchase order.
5. Payment and production.
6. Shipment.
