Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Specifications
Brand Name :
TATUSK
Model Number :
TTSK-TDZ-2C
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
5-8 Work days
Packaging Details :
Packing: aviation transportation plastic box;
Description
Fixed Omnidirectional 8km Range Navigation Spoofing Anti-UAV System
Full-Band GPS/BDS/GLONASS/Galileo Decoy System for comprehensive drone defense
Product Overview
The TTSK-YX-D110 Fixed Omnidirectional Navigation Decoy Device is a high-performance anti-drone system designed to simulate satellite navigation signals identical to those generated by real in-orbit GNSS satellites.
By transmitting customized navigation decoy signals, the device spoofs the drone's position, velocity, and timing, enabling full-range control and forced flight trajectory manipulation.
Key Capabilities
Misleading drones into flying along false coordinates
Forcing drones to land, retreat, or follow preset routes
Creating virtual no-fly zones for sensitive areas
Protecting airports, borders, energy facilities, and critical infrastructure
Technical Specifications
Performance Index
ParameterSpecificationNotes
Number of Navigation Signal Frequencies13More available upon request
Time Synchronization Accuracy≥30 ns--
Effective Decoy Distance≥8 kmDepends on environment
Decoy Response Time≤10 s--
Decoy Angle360° horizontal, 0-90° verticalAll-direction coverage
Number of Simultaneous TargetsUnlimitedFull swarm support
Power Adjustment Steps1 dBFine control capability
Cold Start Time≤60 s--
Mechanical Parameters
ParameterSpecification
Size342mm * 245mm * 397mm
Weight≤20 kg
Electrical Characteristics
ParameterSpecification
Input VoltageAC 110-300V
Standby Power Consumption≤100 W
Environmental Adaptability
ParameterSpecification
Operating Temperature-40°C ~ +70°C
Storage Temperature-50°C ~ +80°C
Protection GradeIP65
Supported Navigation Signals
Supports all global navigation systems: GPS, BDS, GLONASS, Galileo, QZSS, IRNSS
Frequency BandCenter Frequency (MHz)Bandwidth (MHz)
BDS B1I1561.0984.092
BDS B2I1207.144.092
BDS B3I1268.5220.46
BDS B1C1575.424.092
GPS L11575.422.046
GPS L21227.62.046
GPS L51176.4520.46
GLONASS G116028.897
GLONASS G212467.147
GLONASS G31202.02520.46
Galileo E11575.4214.322
Galileo E5a1176.4520.46
Galileo E61278.7510.23
Interfaces & Indicators
Interface Description
InterfaceTypeFunction
1.5GN-FemaleTransmit 1.5GHz decoy signal
1.2GN-FemaleTransmit 1.2GHz decoy signal
GNSSN-FemaleReceive satellite signals
PWRWaterproof 3-coreAC120-305V power input
NETRJ45Network control / firmware upgrade
FAN12-core waterproofCooling system
FAN22-core waterproofCooling system
Indicator Lights
LabelColorFunction
STAGreenDevice status monitoring
TX-ACTGreenTransmission activity status
Product Composition
Fixed outdoor host system
Multi-band GNSS spoofing channels
Integrated satellite time-synchronization receiver
High-gain external antennas (1.2 GHz / 1.5 GHz)
Cooling system & onboard monitoring
Rugged aluminum alloy enclosure (IP65 rated)
Advanced Features
360° omnidirectional & long-range drone defense
Anti-swarm defense for multiple drones simultaneously
Customizable drone motion pattern simulation
Adjustable GNSS channel delay for optimal performance
Integrated GNSS receiver synchronized with satellite time
Full self-diagnosis, alarm reporting, and system monitoring
Adjustable output power for controlled defense radius
Third-party system integration and secondary development support
Multi-device networking and hierarchical management
24/7 unattended operation with radar and monitoring system linkage

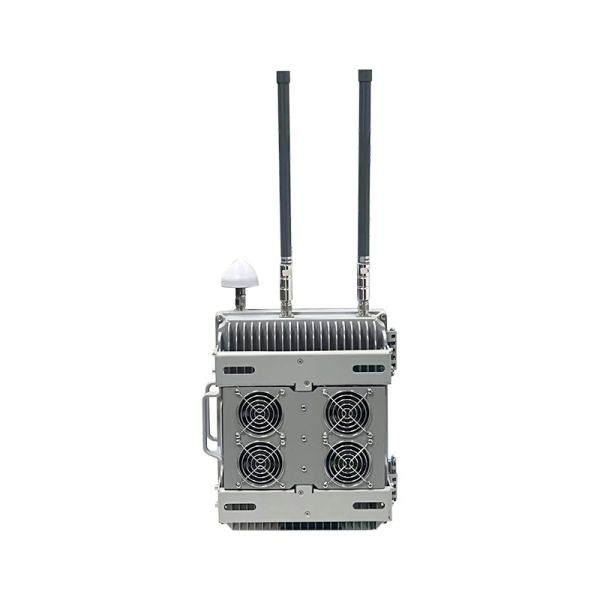

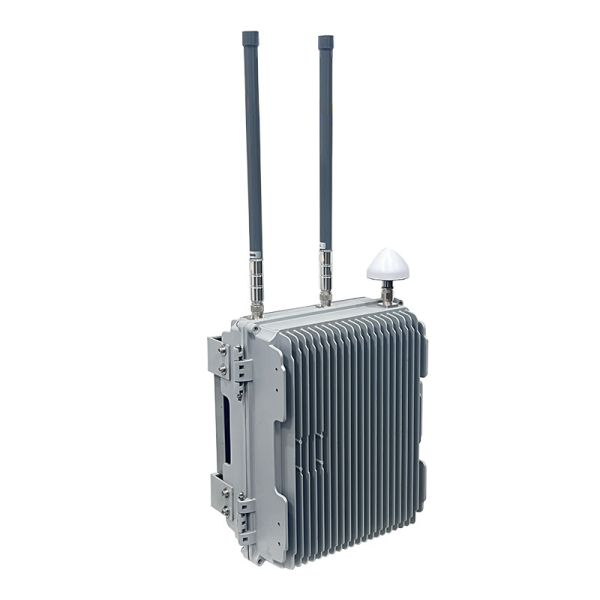

Product Images
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo DecoyFixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Manufacturing Excellence
Fixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo DecoyFixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo DecoyFixed Omnidirectional 8km Range Anti-UAV System with Full-Band GPS/BDS/GLONASS/Galileo Decoy
Frequently Asked Questions
How long is the production lead time?
Production lead time varies by product and order quantity, typically 7-15 days after deposit receipt. Contact us for accurate timing based on your specific order.
Can I customize the product?
Yes, power output and frequency bands can be customized according to your specific requirements. Please contact us with your detailed needs.
What is your payment term?
We accept T/T (Telegraphic Transfer) and PayPal. Standard terms are 30% deposit with 70% balance due before shipment.
How do you ensure product quality?
We maintain strict quality control through raw material inspection, in-production checks, and final quality verification before shipment.
What shipping methods are available?
Multiple options including sea freight, air freight, and express courier (DHL, FedEx, UPS). We recommend the most suitable method based on your order quantity and destination.
Can I track my order?
Yes, we provide tracking numbers upon shipment for monitoring through carrier websites.
Do you provide after-sales service?
Yes, comprehensive after-sales support including technical assistance and warranty services. Contact our customer service team for any order-related issues.
