Portable 13 Omni Antennas Drone Suppressor 750W 10KM Detection Range Anti Drone Jammer
Portable 13 Omni Antennas Drone Suppressor 750W 10KM Detection Range Anti Drone Jammer
Specifications
Brand Name :
TTSK
Model Number :
TTSK-TDZ-2C
Place of Origin :
China
MOQ :
1
Price :
60000
Payment Terms :
T/T
Supply Ability :
5000
Delivery Time :
5-8Work days
Packaging Details :
Packing: aviation transportation plastic box
Description
Portable 13 Omni Antennas Drone Suppressor with 750W Power Consumption and 10KM Detection Range Anti-Drone Jammer
Jamming Frequency Bands: 845MHz, 915MHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
Product Description
Portable UAV Countermeasure Equipment with 433Mhz/700Mhz/900Mhz/1.2Ghz/1.5Ghz/2.4hmz/5.2Ghz/5.8Ghz frequency coverage. Features Detector3KM Full-Band Backpack Anti Drone Jammer Anti-UAV Device: Portable 2-in-1 Detection & Jammer compatible with 2.4G, 5.2G, 5.8G (2400/5200/5800MHz) UAV FPV.
Portable 13 Omni Antennas Drone Suppressor 750W 10KM Detection Range Anti Drone Jammer
Specifications
Detection Performance
Item Specification
Detection Frequency 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Detection Range ≥10 km (line-of-sight, low EMI environment)
Coverage The horizontal detection angle can reach 360°
Vertical detection range -90°～90°
Alert Mode Sound and light
Response Time 3s
False Alarm Rate ≤1 time/12h
Jamming Performance
Item Specification
Fixed Jamming Bands 800MHZ,900MHZ,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz
Jamming Distance ≥3 km (line-of-sight, 0.1W signal source, for DJI Mavic 3 with jamming ratio 2:1)
Response Time ≤5s
Navigation Spoofing Performance
Item Specification
Working Frequency GPS L1 / GLONASS R1 / BDS B1 / GALILEO E1
Effective Distance ≥3 km
Response Time ≤3s
Coverage 360°
Spoofing Direction Selectable
Additional Specifications
  • Output power: DC28V 50Hz
  • Power consumption: 750W
  • Power supply: AC90-260V, DC24-28V
  • Main engine weight: 31Kg (Manpack 10KG, Antenna 1.5KG, Control Box 0.3KG)
  • Size: 520mm*width 465mm*height 275mm
  • With omni antenna 13 pcs
  • Jammer Module Number: 13
  • Cooling System: Systematic Smart Cooling System
  • Jamming Source: Noise Technology
  • Humidity: 30%-95%
  • Running temperature: -20℃ to +60℃
  • Inside battery working 1.5h: 24V,25AH
  • Battery charger: 5A (Open the external switch to charge, automatically manage the charging current, full automatically disconnect)
  • Jamming Range: 0-3KM
  • External Remote control Panel: shows the battery voltage, can switch on/off each band

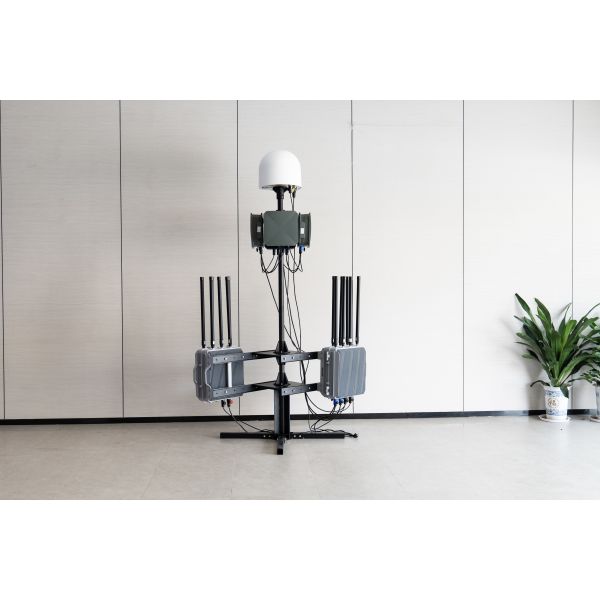

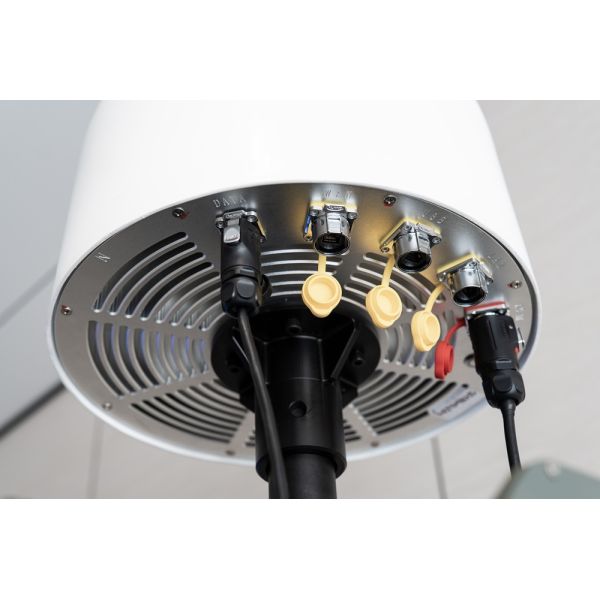

Product Images

Portable 13 Omni Antennas Drone Suppressor 750W 10KM Detection Range Anti Drone Jammer

Portable 13 Omni Antennas Drone Suppressor 750W 10KM Detection Range Anti Drone Jammer

Portable 13 Omni Antennas Drone Suppressor 750W 10KM Detection Range Anti Drone Jammer

Company Profile
Portable 13 Omni Antennas Drone Suppressor 750W 10KM Detection Range Anti Drone Jammer
Tatusky Technology Co., Ltd. focuses on the integration and deployment of comprehensive low-altitude airspace defense solutions. Centered on rapid deployment, agile coordination, and efficient threat mitigation, our product lines are designed for complex scenarios such as urban security, sensitive site protection, and event safety.
With capabilities including UAV identification, multi-target tracking, RF jamming, and GNSS spoofing, our systems support multi-platform collaboration and remote management. Tatusky aims to be a global driver of innovation in urban airspace security technology.
Frequently Asked Questions
1. How long is the production lead time?
The production lead time varies depending on the product and order quantity. Generally, it takes around 7-15 days after receiving the deposit. Please contact us for more accurate information based on your order.
2. Can I customize the product?
Yes, power and frequency band can be customized according to your needs. Please contact us with your specific requirements.
3. What is your payment term?
We accept various payment methods, including T/T (Telegraphic Transfer), PayPal. Payment terms are typically 30% deposit and 70% balance before shipment.
4. How do you ensure product quality?
We have a strict quality control process, including raw material inspection, in-production checks, and final quality inspections before shipment.
5. What shipping methods are available?
We offer multiple shipping options, including sea freight, air freight, and express courier (DHL, FedEx, UPS, etc.). We will recommend the most suitable method based on your order quantity and destination.
6. Can I track my order?
Yes, we will provide you with a tracking number once your order is shipped. You can use this number to track your order through the carrier's website.
7. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical assistance and warranty services. Please contact our customer service team for any issues related to your order.
