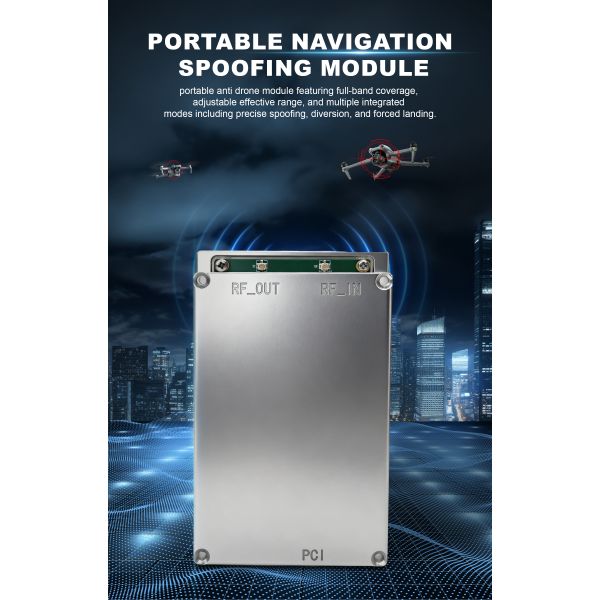

4-6 Channel Signal Source Navigation Spoofing Module
Advanced GPS/BDS/GLONASS/Galileo Anti-FPV & Long-Range Security Protection System
Product Overview
This portable navigation spoofing module is engineered for counter-UAS applications across multiple sectors including petroleum and petrochemicals, electric power, law enforcement, and defense industries. Featuring a compact, lightweight design with straightforward operation and reliable performance, it enables rapid integration for end-users.
Key Capabilities
  • Supports reception and simulated transmission of common signal frequencies from GPS, BDS, GLONASS, and Galileo navigation systems
  • Built-in GNSS band amplifier with single-frequency output power ≥ 5 dBm
  • Synchronizes with on-orbit satellite time and ephemeris while automatically blocking co-frequency interference
  • Capable of spoofing UAVs dependent on satellite navigation for forced landing, directional guidance, take-off prohibition, and GNSS interference
  • Supports external buttons and command control for multiple functional modes
  • Compatible with external direction-finding module for UAV orientation detection and guidance
  • Features external indicator lights for clear operating status visibility
Technical Specifications
Signal Output Performance:

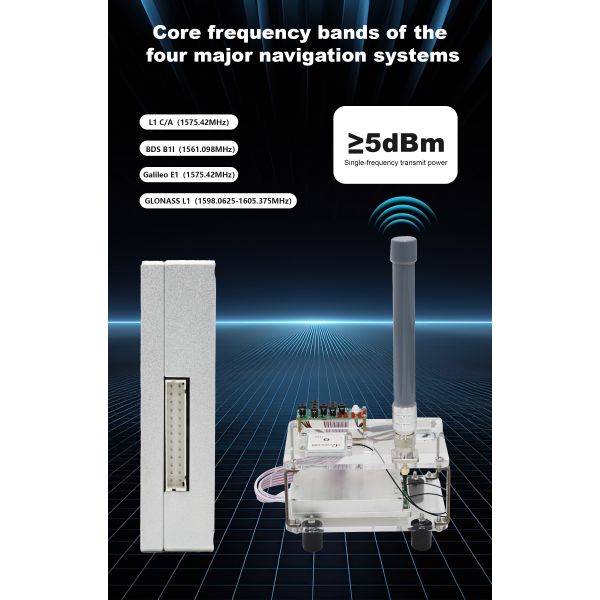

NO. Satellite System Frequency Band Center Frequency (MHz) Max Transmission Power
1 BDS B1I 1561.098 ≥5dBm
2 GPS L1 C/A 1575.42 ≥5dBm
3 GLONASS L1 1598.0625-1605.375 ≥5dBm
4 GALILEO E1 1575.42 ≥5dBm
Additional Performance Parameters:
  • Navigation signal reception frequencies: BDS-B1, GPS-L1, GLONASS-L1, Galileo-E1
  • Power adjustment range: 80dB
  • Maximum effective distance: 2km (environment and UAV model dependent)
  • Startup time: 30s
  • Satellite signal synchronization time: 150s
  • Continuous operating time: ≥24 hours
Interface Definition
  • Signal reception port: SMA – receives GNSS signals
  • Signal transmission port: SMA – transmits spoofing signals
  • Power and control interface: HC-PHD-2×13AW including power input, direction-finding module interface, external functional button interface, external indicator light interface, and network port
Environmental Adaptability
  • Operating temperature: -30℃ to +70℃ (compliant with GJB1621.7A-2006 standard)
  • Storage temperature: -40℃ to +80℃ (compliant with GJB1621.7A-2006 standard)
Product Images
4-6 Channel Signal Source Navigation Spoofing System with GPS/BDS/GLONASS/Galileo Support and 2km Effective Anti-FPV Device
4-6 Channel Signal Source Navigation Spoofing System with GPS/BDS/GLONASS/Galileo Support and 2km Effective Anti-FPV Device
4-6 Channel Signal Source Navigation Spoofing System with GPS/BDS/GLONASS/Galileo Support and 2km Effective Anti-FPV Device
4-6 Channel Signal Source Navigation Spoofing System with GPS/BDS/GLONASS/Galileo Support and 2km Effective Anti-FPV Device
4-6 Channel Signal Source Navigation Spoofing System with GPS/BDS/GLONASS/Galileo Support and 2km Effective Anti-FPV Device
Manufacturing Excellence
4-6 Channel Signal Source Navigation Spoofing System with GPS/BDS/GLONASS/Galileo Support and 2km Effective Anti-FPV Device
4-6 Channel Signal Source Navigation Spoofing System with GPS/BDS/GLONASS/Galileo Support and 2km Effective Anti-FPV Device
4-6 Channel Signal Source Navigation Spoofing System with GPS/BDS/GLONASS/Galileo Support and 2km Effective Anti-FPV Device
Frequently Asked Questions
How long is the production lead time?
Production lead time varies by product and order quantity, typically 7-15 days after deposit receipt. Contact us for accurate timing based on your specific order.
Can I customize the product?
Yes, power output and frequency bands can be customized according to your specific requirements. Please contact us with your detailed needs.
What is your payment term?
We accept T/T (Telegraphic Transfer) and PayPal. Standard terms are 30% deposit with 70% balance due before shipment.
How do you ensure product quality?
We maintain strict quality control through raw material inspection, in-production checks, and final quality verification before shipment.
What shipping methods are available?
Multiple options including sea freight, air freight, and express courier (DHL, FedEx, UPS). We recommend the most suitable method based on your order quantity and destination.
Can I track my order?
Yes, we provide tracking numbers upon shipment for monitoring through carrier websites.
Do you provide after-sales service?
Yes, comprehensive after-sales support including technical assistance and warranty services. Contact our customer service team for any order-related issues.
