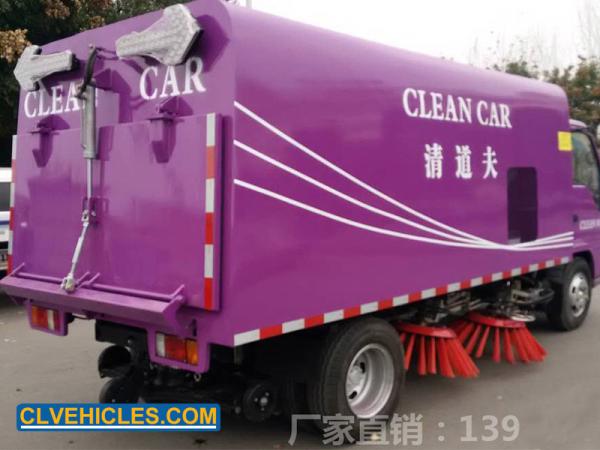

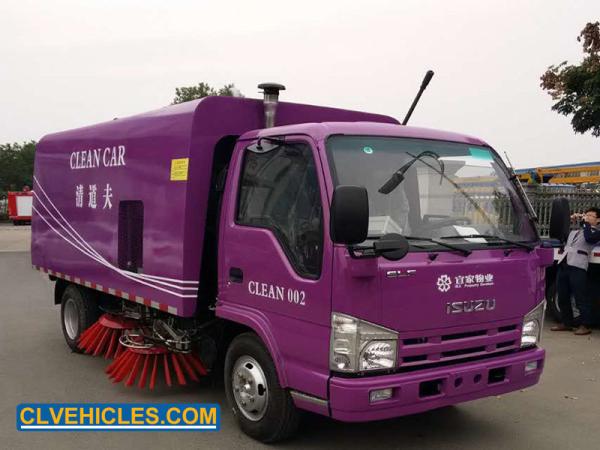

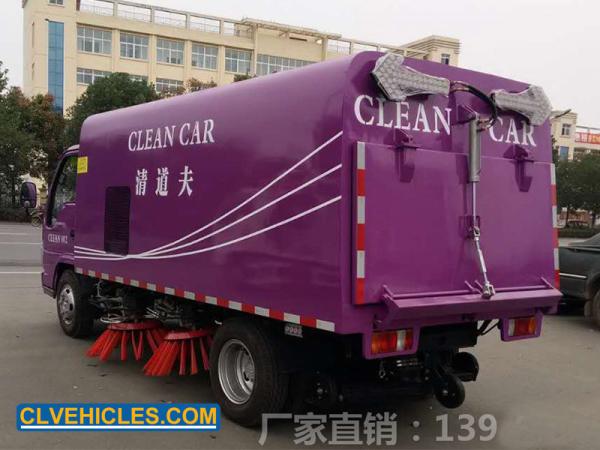

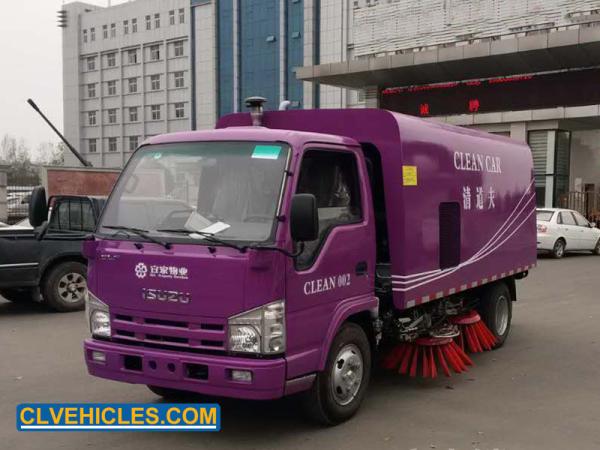

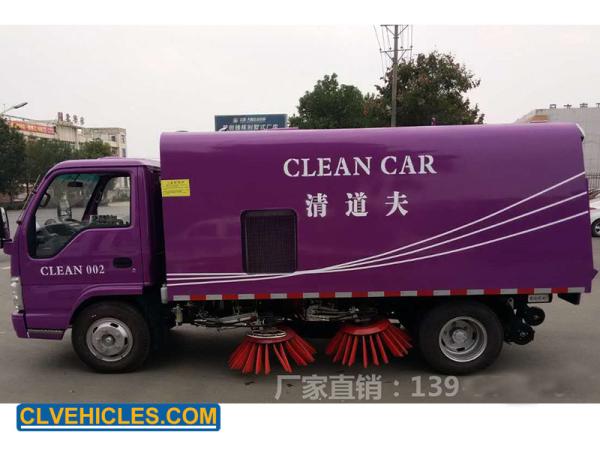

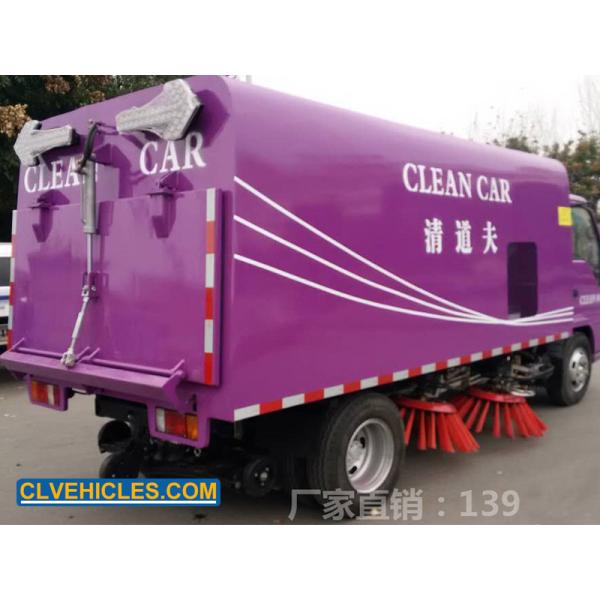

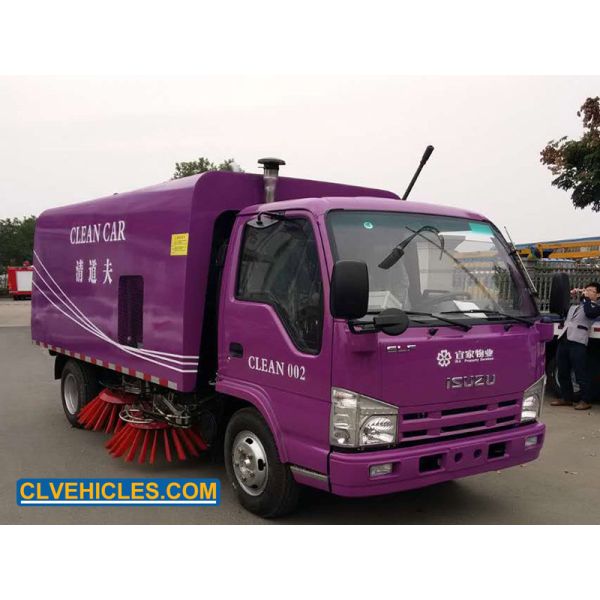

Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Specifications
Brand Name :
ISUZU
Model Number :
CL5051GSSL1
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 29200- USD 35200/ UNIT
Delivery Time :
45-60 work days
Fuel :
Diesel
Payload :
5t
Use :
Burnishing
Cleaning Process :
Cold Water Cleaning
Brushes :
4sets
Cleaning Width :
2.4 to 4.2m
Tire :
10.00r20
Working Speed :
6km/H
Material :
Carbon Steel
Volume :
2000L Water Tank
Size :
5995X2450X3250mm
HS Code :
8705909990
Warranty :
12 Month
Type :
Sweep and Suck Type
Transmission Type :
Manual
Emission Standard :
Euro 4
Customization :
Available | Customized Request
Description

ISUZU ELF 2000L Water Tank with 3000L Sewage Dusty Tank Road Sweeper Truck

Product Description

This road sweeper truck with function sweeping road and water sprinkling cleaning road.
The structure design with two sweepers in the middle and nozzle at the back ensure wide sweeping width and high efficiency. in addition, it helps to facilitate sweeper installation and nozzle adjustment and maintenance. the nozzle has a short elevation in front and a large ground clearance, ensuring ease of passage for the vehicle.

Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank

Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank

Product Parameters

Vehicle performance and parameters
Item Parameter Unit
Working Performance Max sweep width 3.2 m
Sweep speed 3-20 km/h
Max sweep capacity 60000 m2/h
Max inhalation of granularity ≥110 mm
Angle of unloading ≥45 .
Volume of water tank 3000 L
Volume of garbage tank 6000 L
Driving Performance Max speed 95 km/h
Max gradeability 30 %
Braking distance ≤10 m
Min turning diameter ≤13.6 m
Quality Parameter Curb weight 5100 kg
GVW 7300 kg
Dimension Parameter Overall dimensions 6830×2220×2450 mm
Wheelbase 3815 mm
Track front 1680 mm
Track rear 1640 mm
Front suspension 1155 mm
Rear suspension 1860 mm
Approach angle 17 .
Departure angle 25 .
Minimum Ground Clearance 200 mm

Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
Diesel ISUZU Road Sweeper Truck 2000L Water Tank 3000L Sewage Dusty Tank
FAQ
1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
2.What about quality ?

Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.

our company truck pass ISO,3C,ASME certification.
3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
