ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank
ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank
ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank
ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank
ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank
ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank
Specifications
Brand Name :
ISUZU
Model Number :
CL5071GSSL1
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 33200- USD 37200/ UNIT
Delivery Time :
45-60 work days
Cleaning Process :
Cold Water Cleaning
Condition :
New
Truck :
Vacuum Sweeper Truck
Gvw :
8275kg
Truck Name :
Street Sweeping Truck
Product :
Road Cleaning Truck
Tire :
7.50r16
Dimensions :
6700*2290*2500 mm
Transport Package :
Nude Packing, Polished with Wax, Roro or Bulk Ship
Specification :
2500L water tank and 5000L garbage tank
Supply Ability :
200units/Month
Type :
Dry-type
Transmission Type :
Manual
Fuel :
Diesel
Customization :
Available | Customized Request
Description

ISUZU N-Series 130hp Light Duty 6000L Street Cleaning Truck Road Sweeper

Product Description

Road sweeper truck is also called street sweeper truck, street cleaning truck, road sweeper vehicle.
it combine the function of road sweeping, garbage collection and garbage transportation , is new type
efficient sanitation special cleaning vehicle.
It is made of chassis, vice engine, air blower, electromagnetic valve, dust tank, water tank, sucker,
sweeper brush,spraying water system, hydraulic system, electric control system, etc.

It is mainly used to sweep the road garbage of street, highway,dock, station, square,cement mill,

electric power plant, etc.

Product Parameters
Vehicle performance and parameters
Item Parameter Unit
Working Performance Max sweep width 3.2 m
Sweep speed 3-20 km/h
Max sweep capacity 60000 m2/h
Max inhalation of granularity ≥110 mm
Angle of unloading ≥45 .
Volume of water tank 3000 L
Volume of garbage tank 6000 L
Driving Performance Max speed 95 km/h
Max gradeability 30 %
Braking distance ≤10 m
Min turning diameter ≤13.6 m
Quality Parameter Curb weight 5100 kg
GVW 7300 kg
Dimension Parameter Overall dimensions 6830×2220×2450 mm
Wheelbase 3815 mm
Track front 1680 mm
Track rear 1640 mm
Front suspension 1155 mm
Rear suspension 1860 mm
Approach angle 17 .
Departure angle 25 .
Minimum Ground Clearance 200 mm

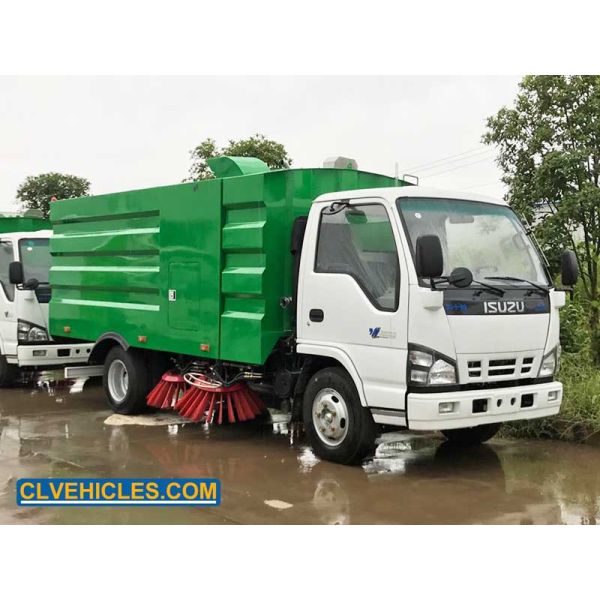

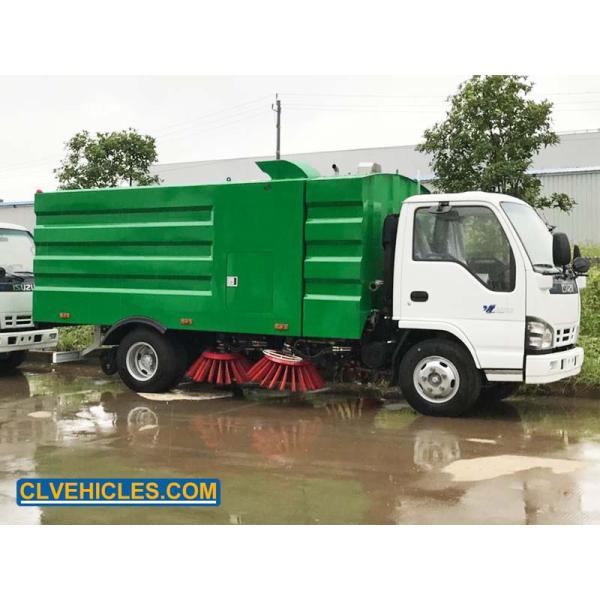

Product Images
ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank

ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank

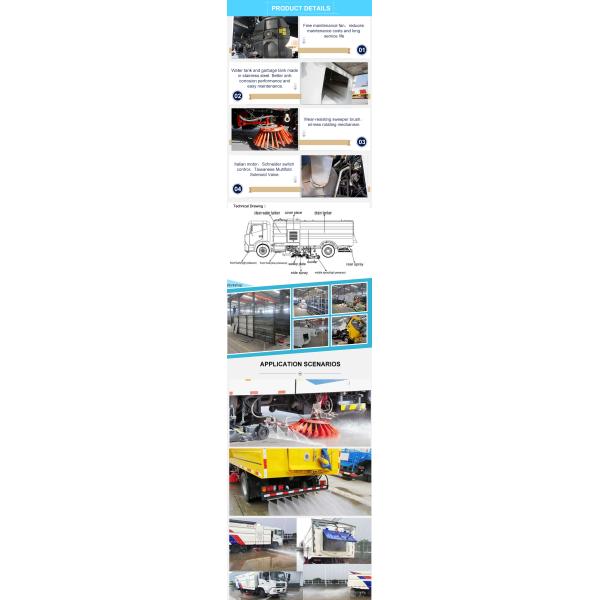

Product Details

ISUZU N Series Truck Road Sweeper 2500L Water Tank And 5000L Garbage Tank
