ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
Specifications
Brand Name :
ISUZU
Model Number :
CL5111GSXS5
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 54200- USD 64200/ UNIT
Delivery Time :
45-60 work days
Fuel :
Diesel
Payload :
15t
Use :
Burnishing
Cleaning Process :
Cold Water Cleaning
Condition :
New
Control Type :
Electronic Control
Auxiliary Engine :
Diesel Type
Flushing Type :
High Pressure Jetting
Colour :
Customer′s Requirement
Others :
Suction Divice with Automatic Avoidance Function
Usage :
Road Sweeping and Jetting Cleaning
Sweeping Speed :
3-20km/H
Sweeping Width :
Max 3.5 Meters
Tank :
Clean Water Tank and Dirty Tank
Driving Side :
Left/Right Hand Driving
Sweeper :
Front Long Sweeper
Tank Material :
Carbon Steel
Product Name :
Road Sweeper Truck, Road Jetting Truck
Specification :
9000mm*2500mm*2670mm
HS Code :
8705909990
Type :
Sweep and Suck Type
Customization :
Available | Customized Request
Description

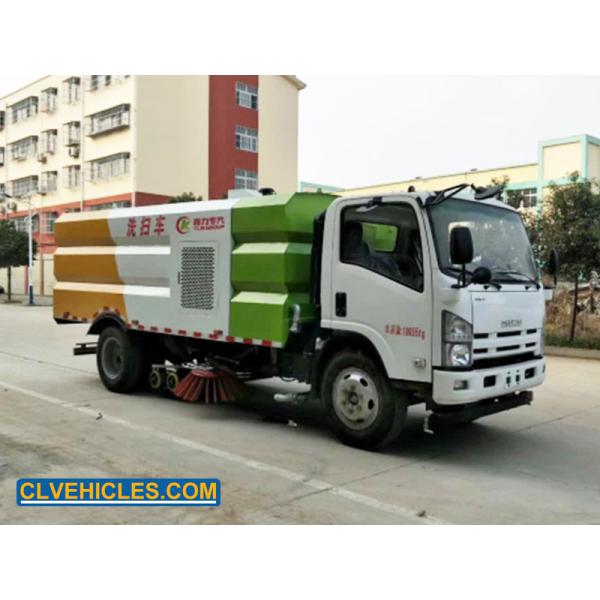

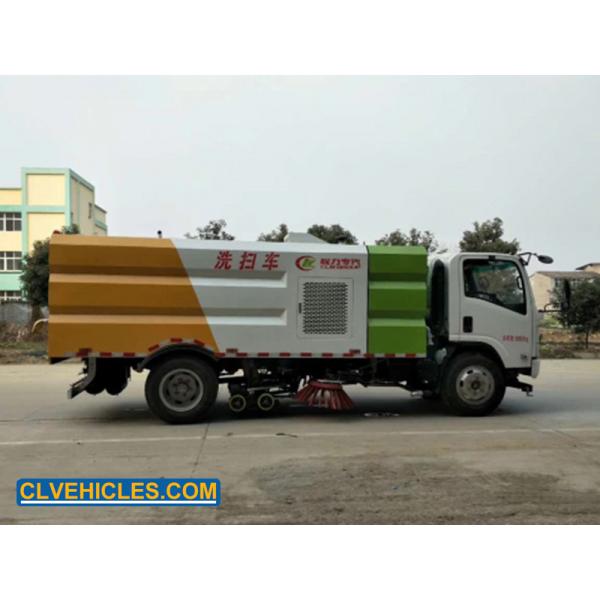

ISUZU ELF 6 Wheels 190HP Road Washing Truck 10cbm Vacuum Truck Sweeper

Product Description


What is a street sweeper truck?

A sweeper truck is a truck with brushes underneath for sweeping surfaces and gutters. They're often referred to as street sweepers or street cleaners, road sweeper, vacuum sweeper, etc, but they don't just clean streets. These versatile vehicles can be used in a number of ways. Any area that is paved can be cleaned with one of these trucks. They clean all manner of waste off of city streets, typically late at night or early in the morning, and they make street cleaning much more time-efficient than it used to be.

Different types of Street Sweeper

According to different Fuctions of the Sweeper Truck, we mainly can divide them into three types:

1. Vacuum Suction Truck, which has no sweepers but is with a long suction divice in the middle and two vice suction divices at side. This truck normally be used in the places where have heavy dust like ement factory, coal depot, seaports, etc.

2. Street Sweeper Truck, which is with a long suction divices in the middle and two sweepers at both sides. This type Truck can be used in streets where has little dust and garbages on the road could be easily cleaned.

3. Jetting Sweeper Truck, which has three fuctions: High pressure water jetting, Sweeping and Suction. This type truck not only has the sweeping and suction, but also can high pressure jetting garbages sticked on the ground. High Pressure Water Jetting Sweeper Truck makes road the cleanest.


ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck

ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck

Road Sweeper Truck Upper-Body Specification
Vice Generator
Brand CUMMINS
Rated power (hp) 170
High pressure cleaning
Cleaning speed (km/h) 3-20
Cleaning width(m) 3.5
Cleaning pressure (Mpa) 12
Pump flow(L/MIN) 115
Suction sweep operation
Cleaning efficiency ≥95%
The maximum diameter of the suction body(mm) 110
Suction sweep width(m) 3
Maximum cleaning power (m²/h) 60000
Butterfly dish brush overhang dimension(mm) ≥400
Working speed (km/h) 3-20
Water tank body
Rated capacity (m³) 5
Material Stainless steel
Thickness 4mm
Other Configuration Overflow or low level alarm device
Garbage tank body
Rated capacity (m³) 5
Material Stainless steel
Thickness 4mm
Other Configuration Overflow or low level alarm device
Discharge door opening angle ≥45º
Hydraulic system
Model Open, electrical control
The main element Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve
Pressure (mpa) 16
Hydraulic oil tank capacity (l) 60
Hydraulic oil temperature (ºC) 60
Electrical system
Model DC24V
voltage 12V
Battery 12V
High pressure water system
Type Piston pump
Model German PF36
Pressure (Mpa) 10
Rotating speed (r/min) 1150
Valve type Pilot pressure valve
Pressure for valve (Mpa) 7
Nozzle type High pressure cleaning
Water filter Strainer
Sprinkle system
The main elements Electric diaphragm pump, water filters, nozzles, etc.
Sweeper disk device
Number 2 pieces
Model Center two sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function
Diameter (mm) 850
Speed High :110 medium: 80 ,low :50
Angel Forward 4-6º roll 4-7º
Sucker device
Model Double suction port, hydraulically controlled, spring suspension.
Diameter (mm) 200

ELF ISUZU Road Sweeper Truck 6 Wheels 190HP 10cbm Vacuum Sweeper Truck
