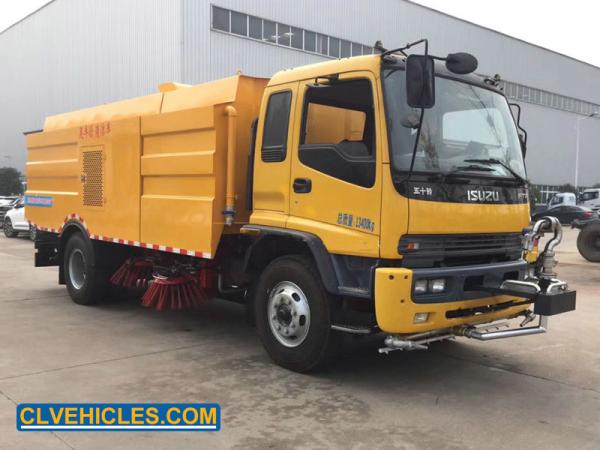

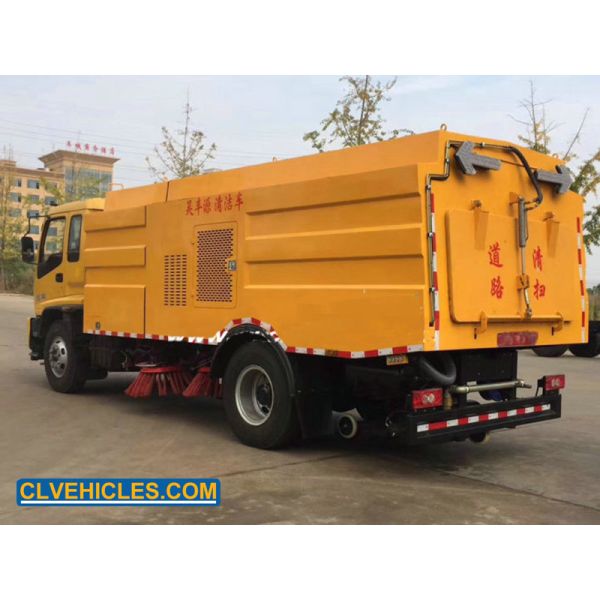

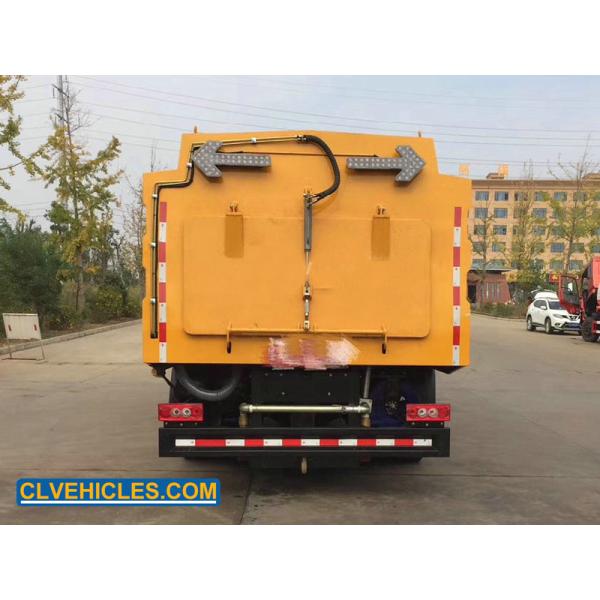

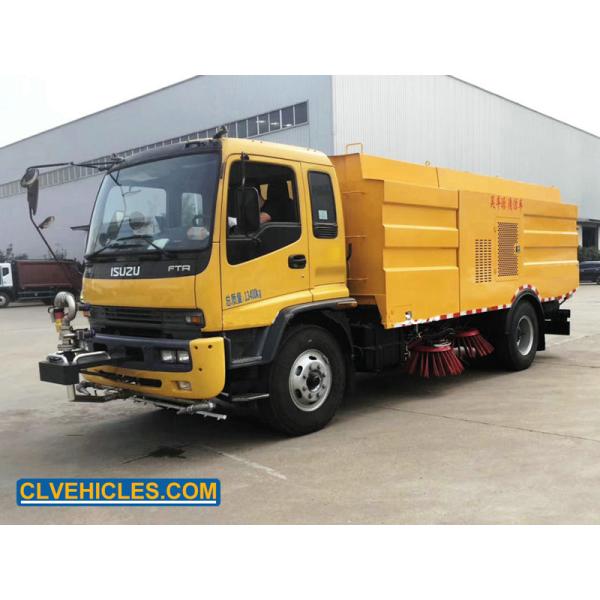

ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
Specifications
Brand Name :
ISUZU
Model Number :
CL5161GSSL1
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 61200- USD 64200/ UNIT
Delivery Time :
45-60 work days
Fuel :
Diesel
Payload :
10t
Use :
Burnishing
Cleaning Process :
Cold Water Cleaning
Cleaning Width :
2.4 to 4.2m
Tire :
10.00r20
Product Name :
Road Sweeper Truck
Working Speed :
6km/H
Material :
Carbon Steel
Size :
8995X2450X3250mm
Transport Package :
Bulk
Specification :
10000l
HS Code :
8705909990
Type :
Sweep and Suck Type
Customization :
Available | Customized Request
Description

ISUZU FTR 205hp 4000L Water Tank 8000L Waste Tank Road Sweeper Truck

Product Description

This road sweeper truck with function sweeping road and water sprinkling cleaning road.
The structure design with two sweepers in the middle and nozzle at the back ensure wide sweeping width and high efficiency. in addition, it helps to facilitate sweeper installation and nozzle adjustment and maintenance. the nozzle has a short elevation in front and a large ground clearance, ensuring ease of passage for the vehicle.
Vehicle performance and parameters
Item Parameter Unit
Working Performance Max sweep width 3.5 m
Sweep speed 3-20 km/h
Max sweep capacity 70000 m2/h
Max inhalation of granularity ≥120 mm
Angle of unloading ≥45 .
Volume of water tank 5000 L
Volume of garbage tank 7000 L
Driving Performance Max speed 95 km/h
Max gradeability 30 %
Braking distance ≤10 m
Min turning diameter ≤13.6 m
Quality Parameter Curb weight 9800 kg
GVW 16000 kg
Dimension Parameter Overall dimensions 8090×2470×3050 mm
Wheelbase 4700 mm
Track front 1680 mm
Track rear 1640 mm
Front suspension 1430 mm
Rear suspension 1960 mm
Approach angle 20 .
Departure angle 12 .
Minimum Ground Clearance 240 mm

Main parts and parameters
Chassis Chassis model ISUZU FTR
Engine model 4HK1-TC50
Engine power 150kw/ 205hp
Clutch system Single disc, dry type, diaphragm spring clutch
Gearbox MLD/ 6speed + 1reverse
Driving axle 6.3T/13T
Tire 10.00R20
Vice-fan Engine Brand B140-33
Rated power 102kw/ 140hp
Fuel type Diesel, share with chassis fuel tank
Draught Fan Type High pressure centrifugal specialized draught fan
Rated speed 2600—2900r/min
Actuator type Drive by vice-fan engine through transmission shaft, automatic clutch, narrow V type belt transmission
Hydraulic System Type Open type and electrohydraulic control system
Main part Gear pump, cycloid motor, hydro cylinder, magnetic valve, hydraulic hand pump
Hydraulic relief pressure 16Mpa
Hydraulic oil tank 60L
Spray Watering Main part Electric water pump, water filtration system, spray nozzle, water tank
Electric System Composition Made of chassis electric system and vice-fan engine with other work operating system
System voltage 24V
Battery model 12-80A.H
Sweeping Device Type Four sweeping devices between two axle in the middle, symmetric distribution on both side, drive by hydraulic motor, three speed level control, independent control
Diameter 950mm
Rotate speed Three level: 110r/min 80r/min 60r/min
Dip angle Forerake 4o—6o , Out incline 4o—7o
Suction Nozzle Type U-shaped , Free to move
Diameter 200mm
Ground clearance in working 5—10mm
Accessories

LED arrows lamp

Schneider Control switch

Draught fan(maintenance-free)

Manual pump emergency system

CCTV camera and monitor system

Hand wash and hose reel.

ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank

ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank

ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank

ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
ISUZU FTR 205hp Truck Mounted Street Sweeper 4000L Water Tank 8000L Waste Tank
FAQ
1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
2.What about quality ?

Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.

our company truck pass ISO,3C,ASME certification.
3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.

~If you have any question or optional require, please feel free to chat me at below
THANKS FOR REFERENCE
