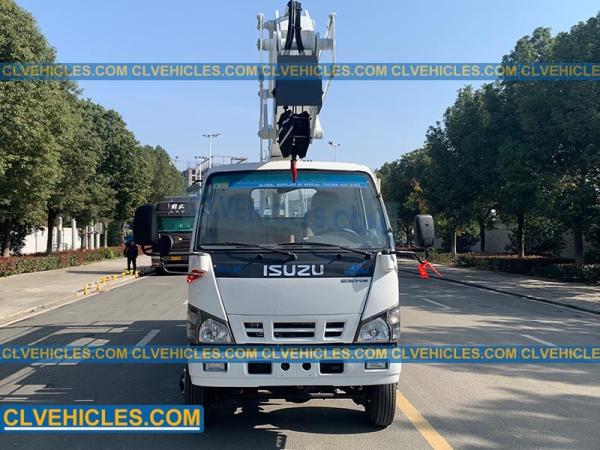

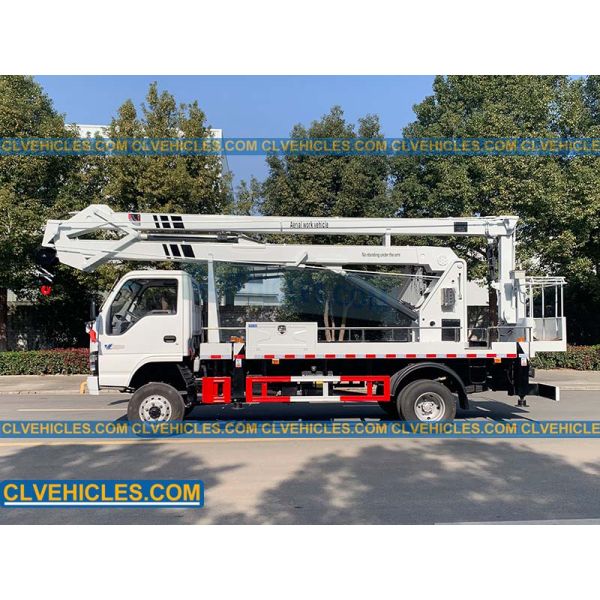

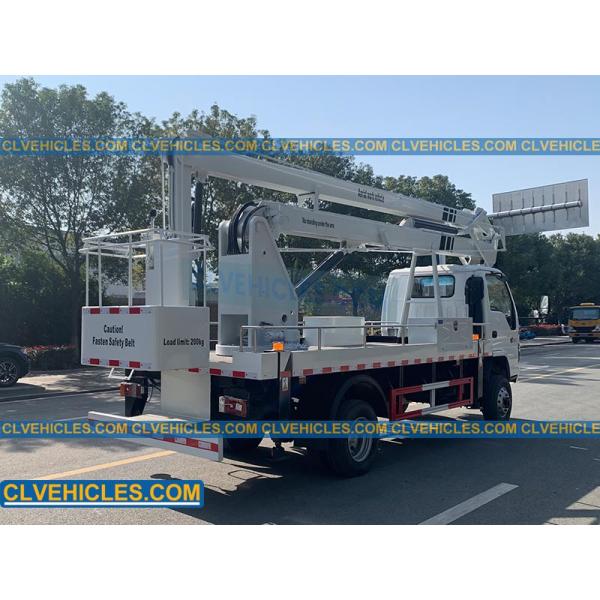

ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck
Specifications
Brand Name :
ISUZU
Model Number :
CL5071GKZY9
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 39100- USD 42200/ UNIT
Delivery Time :
45-60 work days
Fuel :
Diesel
Transmission Type :
Manual
Drive Wheel :
4x4
Condition :
New
Supporting Leg :
Hydraulic
Working Height :
18m
Bucket Size :
1200*600*1100
Warrany :
1 Year
Bucket Loading :
200kg
Driving Type :
Left Hand Driving or Right Hand Driving
Boom Type :
Telescopic
Color :
Custimized
Product :
Aerial Lift Bucket Trucks
Chassis Brand :
Dongfeng Foton Forland HOWO FAW
Transport Package :
Nude, by Roro Ship, Bulk Ship or Frame Container
Specification :
5990*1980*2900mm
Description

ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck

Product Description

-About Aerial Platform Truck:

Our unique design operation system of three-section telescopic boom could help the worker stable operation in the air.
The main purposes are: maintaining, installing, cleaning, camera shooting, ship bulding, chemical industry, electric power, pruning and streetlight changing etc. in the air from 8m to 24m height.

-Characteristics:

1. The boom is made of high-strength steel plate HQ60/5mm welded and formed, and the outriggers are made of low-alloy Q345 profile, with no welds around, beautiful appearance, strong force and high strength;
2. The cylinder drive chain drives the telescopic arm to expand and contract synchronously, which is stable and reliable;
3. H-shaped outriggers have good stability, the outriggers can be operated at the same time or individually, and the operation is flexible and can adapt to a variety of working conditions;
4. The turntable rotates in two directions at 360°, and adopts an advanced worm and worm integrated closed reduction mechanism; (with self-lubricating and self-locking functions)
5. Automatic control by controller, with display screen, set protection mode to limit amplitude, safe and reliable;
6. Two-position operation of getting off the car and the hanging basket, electro-hydraulic proportional speed regulation;
7. Getting off and getting on is interlocked, the operation is safe and reliable;
8. The hanging basket adopts advanced static hydraulic automatic leveling, which is more stable and reliable;
9. There are engine start and stop switches for getting off the car and the hanging basket, which is easy to operate and save fuel;

ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck

ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck

ISUZU 600P N-series 4x4 AWD 18 Meters Aerial Work Platform Truck

Product Parameters

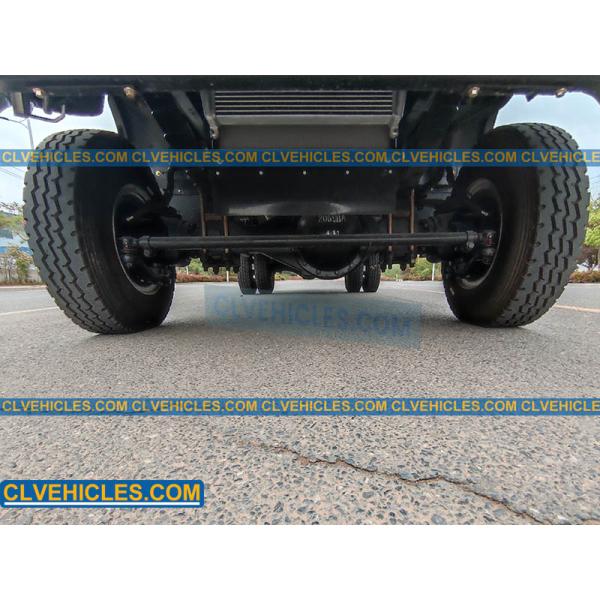

Chassis Specification
Truck model CLW5078JGKIS18
Cab ISUZU 600P single row of seats cab, with air-conditional andUSB connector radio.
Driving Type 4*2 Left hand driving
Max Speed (km/h) 95
Overall dimension (mm) Appro. 6400*1980*3100
GVW (kg) Appro. 5800
Mass in working order( kg) Appro. 5485
Wheelbase (mm) 3815
Tire 700R16
Clutch Single-plate dry diaphragm spring clutch
Steering Hydraulic steering with power assistance
Gear box MSB 5-speed
Bridge Front axle 2.5T
Rear axle 4.8T
Engine Model 4KH1CN5HS
Fuel Type Diesel fuel
Emission Standard Europe V
Type Water-cooled four-stroke, supercharged inter-cooling
Exhaust (ml) 2999
Max output power/rotate speed (hp /rpm ) 130/3400
Max torque/rotate speed (N.m/rpm) 220/1700
BrakingSystem Service Brake Oil brake
Park Brake Spring energy
Electric system 24v
Special Function
Working height (m) 18
Max working radius (m) 9
Boom type Two sections folding working boom
Rated loading in the bucket(kg) 200
Bucket size (mm) 1300*1000*1000
Rotating speed (r/min) 0-2
Rotationangle 360°
Supporting leg four sets hydraulic legs
Span of supporting legs Horizontal 3500mm
longitudinal 4000mm
Boomcontrol mode

1.Bucket control

2.Manual operation
Supporting legs Four hydraulic supporting legs with manual operation
