Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Specifications
Brand Name :
ISUZU
Model Number :
CL5071GKZY5
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Payment Terms :
USD 36900- USD 42200/ UNIT
Delivery Time :
45-60 work days
Transmission Type :
Manual
Condition :
New
Supporting Leg :
Hydraulic
Hook Loading :
1000kg
Control Mode :
Hydraulic or Electronic
Bucket Size :
1200*600*1100mm
Boom Type :
Folading or Telescopic
Rotating Speed :
0-2 R/Min
Bucket Loading :
200kg
Rotation Angle :
360
Working Radius :
4-15m
Working Height :
6-22m
Transport Package :
Nude Packing with Wax
Specification :
6990*2100*2500
Description

Product Description

Hydraulic Aerial Cage 14M Telescopic Boom Aerial Working Truck High Altitude Platform Truck
Product Parameters
Vehicle Description
Vehicle model Platform Truck Overall dimensions (mm) 7640×1990×3150
GVW (kg) Appro×6800 Operational height (m) 16
Mass in working order (kg) Appro×5185 Max. Speed (km/h) 95
Chassis Description
Cab Crew cab with A/C
Allowable person in cab 5
Wheel base (mm) 3360
Number of axles 2
Axle Front axle 2000
Rear axle 4800
Operation control system Power steering
Braking system Oil brake
Transmission 5-speed MSB
Tire specification 7.00R16
Tire quantity 6+1
Engine Description
Engine manufacture ISUZU Engines
Engine model 4KH1CN5HD
Emission standard Euro 5
Up-parts Description
Bucket
Max. working height 16m
Max. working radius (m) 7
Working height at max. radius (m) 9
Working radius at max. height (m) 2
Rated loading (kg) 200
Type Three section , articulated
Rotation Angle 360
Thickness of boom plate 4mm

Max. rising angle of upper

and lower boom

 70/70
Max. rising angle of small boom 90
Outrigger
Type H
Vertical Breadth (mm) 3300
Horizontal Breadth (mm) 3380
Adjustment Adjusted separately
Hook
Max. Lifting height (m) 8.4
Max. Lifting Weight (kg) 1000
Product Images

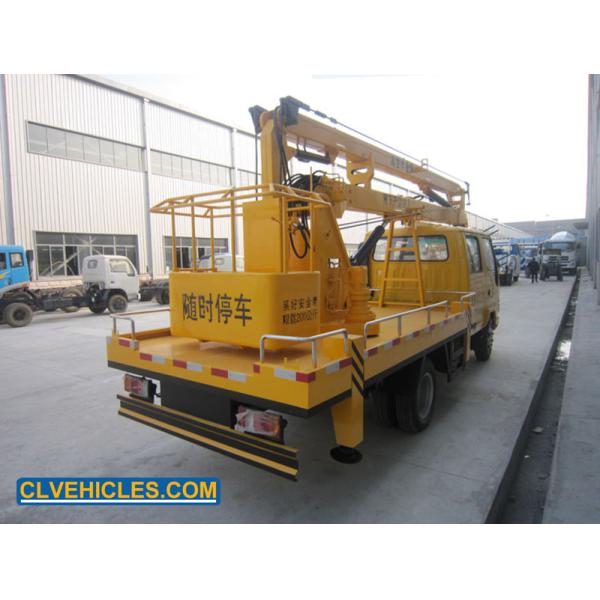

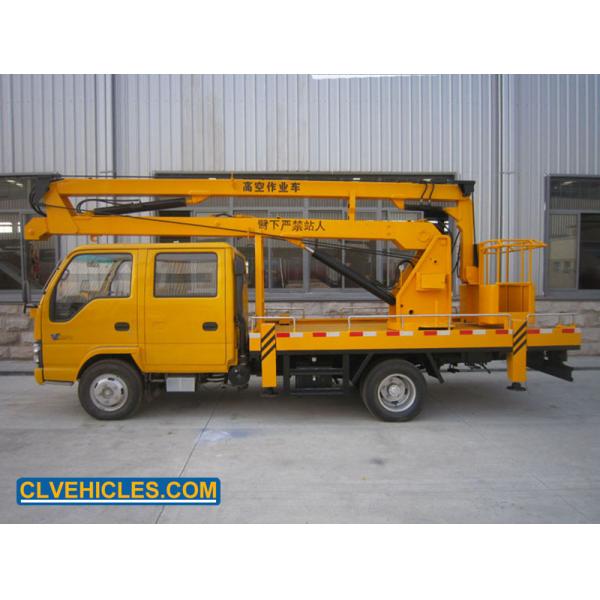

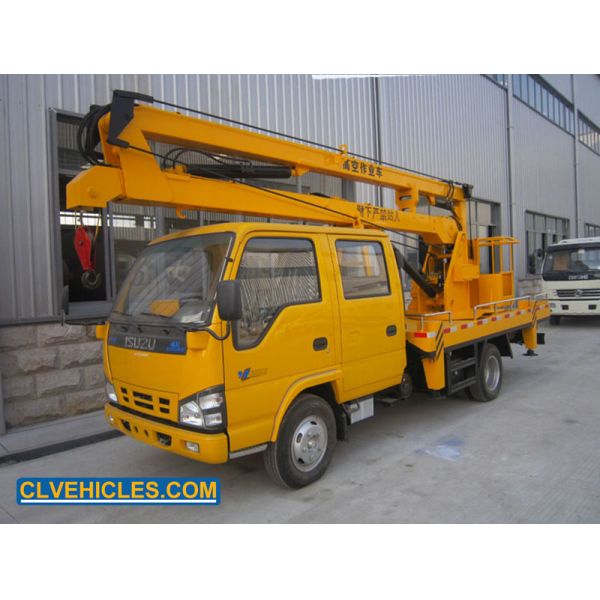

Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
Product Details

Hydraulic Aerial Cage High Altitude Truck 14M Telescopic Boom 4×2
