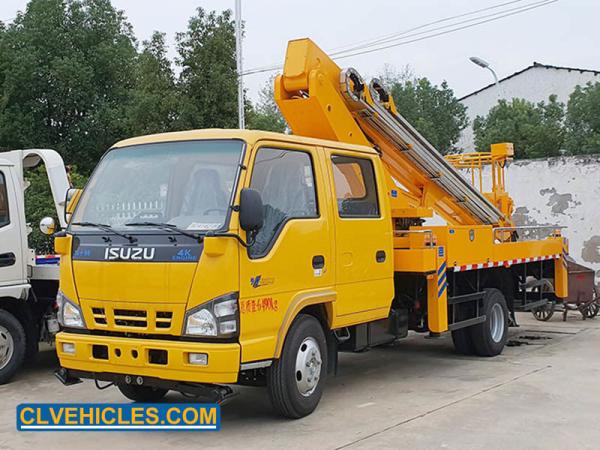

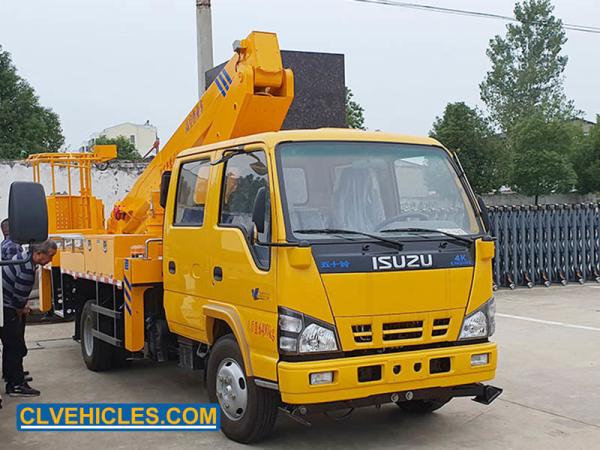

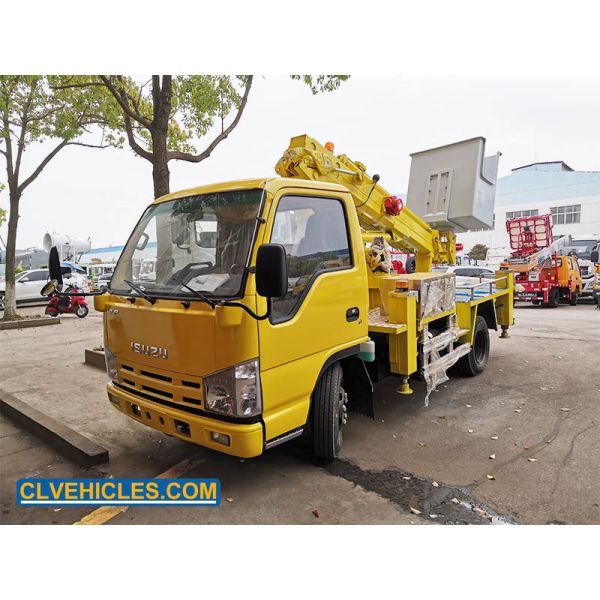

ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab
ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab
ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab
ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab
ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab
ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab
Specifications
Brand Name :
ISUZU
Model Number :
CL5071GKZY1
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 50200- USD 55200/ UNIT
Delivery Time :
45-60 work days
Payload :
200kg
Fuel :
Diesel
Transmission Type :
Manual
Drive Wheel :
4x2
Condition :
New
Supporting Leg :
Hydraulic
Working Height :
14m
Bucket Size :
1200*600*1100
Warrany :
1 Year
Bucket Loading :
200kg
Boom Type :
Telescopic
Color :
Custimized
Product :
Aerial Lift Bucket Trucks
Specification :
5990*1980*2900mm
HS Code :
8705909990
After-sales Service :
with After Sales Service
Description

ISUZU N-series Crew Cab 16m Telescopic Boom Aerial Bucket Truck

Product Description

-About Aerial Platform Truck:

Our unique design operation system of three-section telescopic boom could help the worker stable operation in the air.
The main purposes are: maintaining, installing, cleaning, camera shooting, ship bulding, chemical industry, electric power, pruning and streetlight changing etc. in the air from 8m to 24m height.

-Characteristics:

1. The boom is made of high-strength steel plate HQ60/5mm welded and formed, and the outriggers are made of low-alloy Q345 profile, with no welds around, beautiful appearance, strong force and high strength;
2. The cylinder drive chain drives the telescopic arm to expand and contract synchronously, which is stable and reliable;
3. H-shaped outriggers have good stability, the outriggers can be operated at the same time or individually, and the operation is flexible and can adapt to a variety of working conditions;
4. The turntable rotates in two directions at 360°, and adopts an advanced worm and worm integrated closed reduction mechanism; (with self-lubricating and self-locking functions)
5. Automatic control by controller, with display screen, set protection mode to limit amplitude, safe and reliable;
6. Two-position operation of getting off the car and the hanging basket, electro-hydraulic proportional speed regulation;
7. Getting off and getting on is interlocked, the operation is safe and reliable;
8. The hanging basket adopts advanced static hydraulic automatic leveling, which is more stable and reliable;
9. There are engine start and stop switches for getting off the car and the hanging basket, which is easy to operate and save fuel;

ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab

ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab

Product Parameters

Vehicle Description
Vehicle model Platform Truck Overall dimensions(mm) 7385×1980×3140
GVW (kg) Appro×7000 Operational height (m) 18
Mass in working order (kg) Appro×6165 Max. Speed (km/h) 95
Chassis Description
Cab Double row cab with A/C
Wheel base (mm) 3815
Number of axles 2
Axle Front axle 2000
Rear axle 4800
Traction system

4x2
Operation control system Power steering
Braking system Oil brake
Transmission 5-speed MSB
Tire specification 7.00R16
Engine Description
Engine manufacture ISUZU Engines
Engine model 4KH1CN5HD
Emission standard Euro 5
Up-parts Description
Bucket
Max. working highe (m) 16m
Max. working radius (m)

8
Rated loading (kg)

200
Size (mm)

1100*600*1200
Type Insulation type

Boom
Type Three section , Telescopic
Rotation Angle

360
Rotation speed (r/min)

0-2
Boom Control mode

1.Bucket control

2.Manual operation

Outrigger
Type

H
Vertical Breadth (mm)

4000
Horizontal Breadth (mm)

4000
Adjustment Adjusted separately

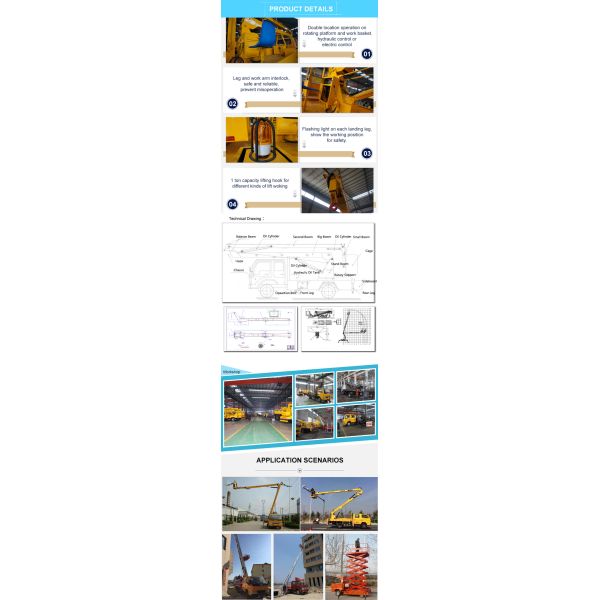

Product Details

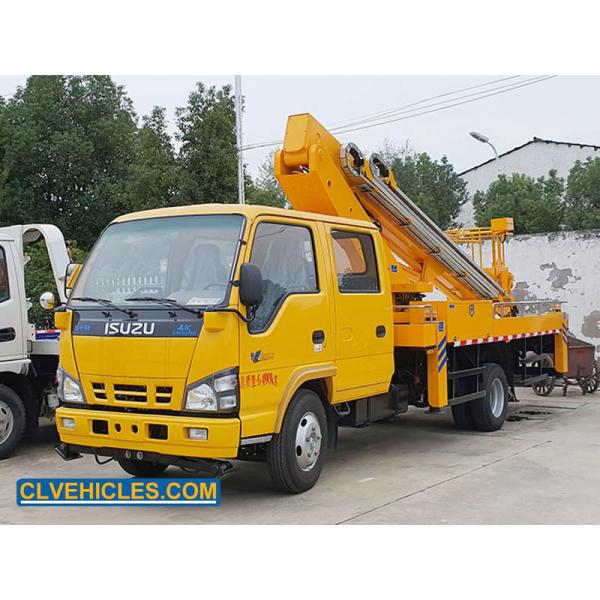

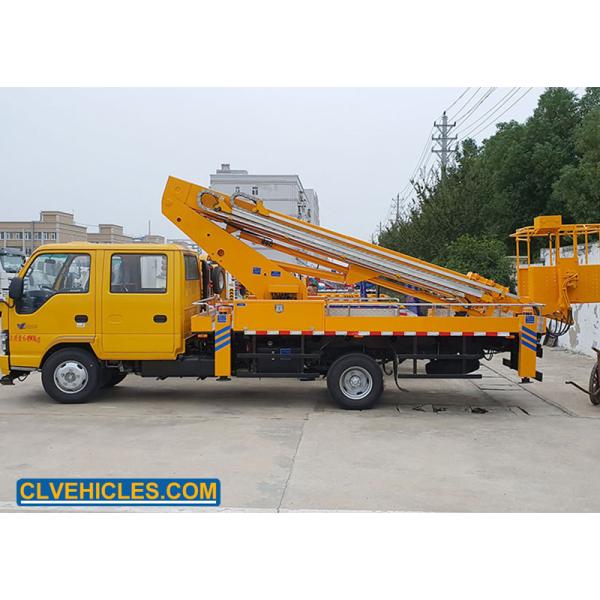

ISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew CabISUZU N Series Truck Mounted Bucket Lift 16m Telescopic Boom with Crew Cab
