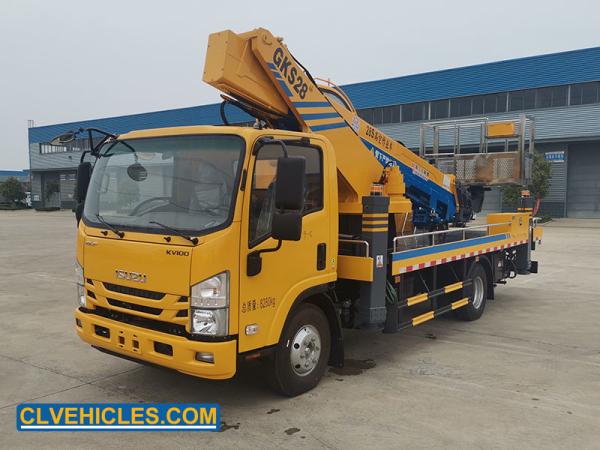

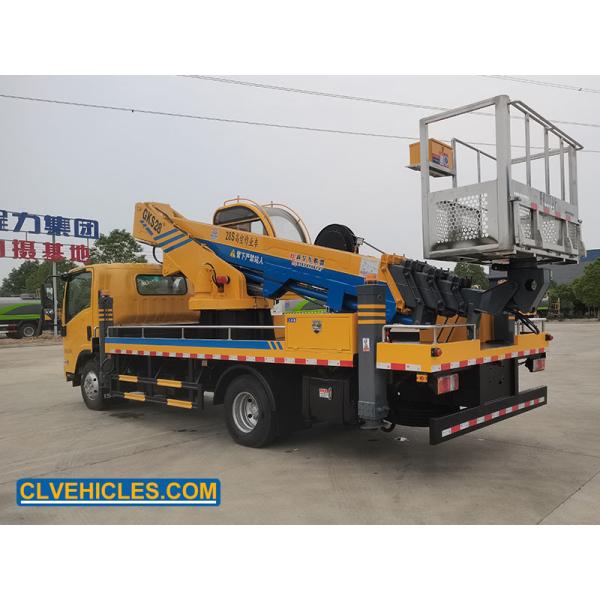

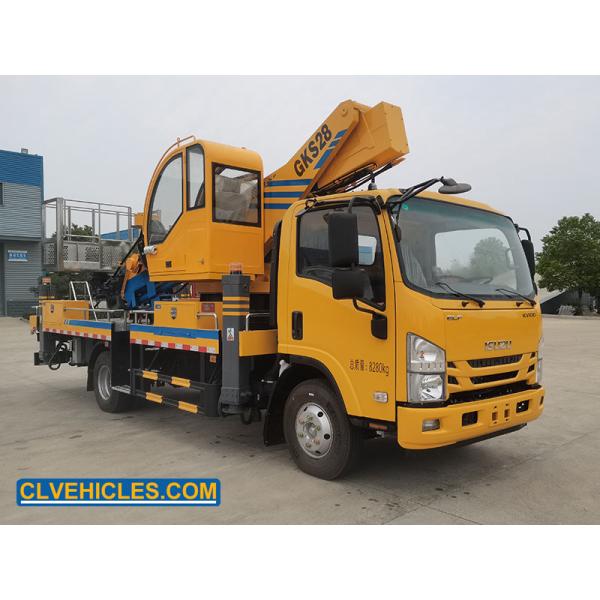

ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
ISUZU ELF KV100 28m Aerial Platform Truck Manlift Truck
Specifications
Brand Name :
ISUZU
Model Number :
CL5082GKZY1
Certification :
CGC，ISO9001:2015，TUV SUD，PV，CNAS，
Place of Origin :
China
MOQ :
1 UNIT
Price :
USD 71300- USD 82200/ UNIT
Delivery Time :
45-60 work days
Fuel :
Diesel
Transmission Type :
Manual
Condition :
New
Supporting Leg :
Hydraulic
Control Mode :
Hydraulic or Electronic
Bucket Size :
1200*600*1100mm
Boom Type :
Folading or Telescopic
Bucket Loading :
200kg
Rotation Angle :
360
Working Radius :
4-15m
Working Height :
6-28m
Specification :
6990*2100*2500
Description

28m ISUZU Aerial Platform Truck Truck Mounted Aerial Work Platform

Product Parameters
Vehicle Description
Vehicle model Platform Truck Overall dimensions (mm) 8060×2300×3200
GVW (kg) Appro×11000 Operational height (m) 26
Mass in working order (kg) Appro×6815 Max. Speed (km/h) 95
Chassis Description
Chassis Brand ISUZU ELF
Cab Single cab with A/C
Allowable person in cab

3
Wheel base (mm) 3815
Front/Rear track base (mm) 1504/1425
Front/Rear overhang (mm) 1015/2470
Number of axles 2
Axle Front axle (kg) 4000
Rear axle (kg) 7000
Traction system

4*2
Operation control system Power steering
Braking system Air brake
Transmission 6-speed
Tire specification 235/75R17.5
Tire quantity

6+1
Engine Description
Engine manufacture ISUZU Engines
Engine model 4HK1-TC51
Emission standard Euro 5
Exhaust/output

5193ml/141kw
Horse power

190
Up-parts Description
Working condition
Max. working height (m) 2
Height of platform above ground (m)

24.3
Max. working radius (m)

13
Working radius at max. height (m)

2
Working height at max. radius (m)

6
Gear pump displacement (ml/r)

32
Working pressure (Mpa)

20
Control type

1. Manual operation in two positions

2. Wireless remote operation
Type Insulating type
Rated loading (kg)

200
Adjusting balance mode Hydrostatic Leveling System
Safety belt 1 set
Rotation Angle 360° Hydraulic
Lighting system For night work
Type Front V type / Rear H type
Quantity 4 PCS
Adjustment Adjusted separately or interconnected
Hydraulic lock Two-way hydraulic lock for four legs
Strobe light on rear landing legs Two yellow lights
Main structure
Material High quality carbon steel and profiles, with slip-proof decorative steel plates
Tool box Mould stamping door with stainless steel door lock
Fencing Stainless steel tube
Steps With steps on drivers’ side
Guard railing High quality cold bending carbon steel profile; High strength
Wheel casing Injection mold molding, beautiful, high strength
Rotary table
Supporting Boom Low alloy steel plate welding
Slewing bearing Single row of four - point contact ball belt outer teeth
Reduction gears Planetary gear type
Motor Axial piston motor
Security configuration
Automatic interlock device for get on and off Prevent the risk of misoperation
Hand-operated emergency pump When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state
Emergency stop device for working platform Used for emergency stop operation and restricted boom operation
Automatically limit work range When the working range reaches the specified value, the dangerous direction is automatically restricted.
Leakage protection device Equipped with leakage protector to ensure the safety of power supply and power tools
