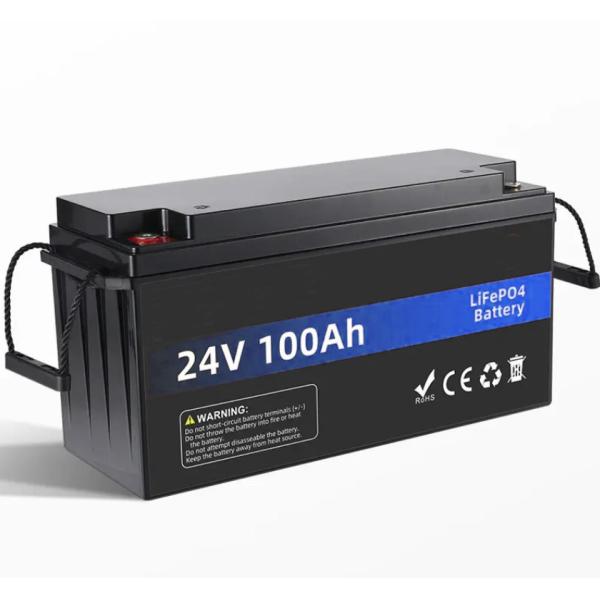

24V 100Ah Deep Cycle LiFePO4 Lithium Ion Battery Pack for Solar System
24V 100Ah Deep Cycle LiFePO4 Lithium Ion Battery Pack for Solar System
Specifications
Capacity :
100Ah
Height :
≤220mm
Length :
≤520mm
Voltage :
24V
Operating Temperature :
﹣10℃～+60℃
Brand Name :
FBATTERY
Model Number :
24V100Ah
Certification :
CE,ROHS,UN38.3
Place of Origin :
Wuhan,China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T in advance
Supply Ability :
10000PCS/30Days
Delivery Time :
20 work days
Packaging Details :
blister card packing,Carton
Width :
≤238mm
Description
Deep Cycle LiFePO4 24V 100Ah Lithium Ion Battery Pack
High-quality lithium energy storage battery using long-working-life LiFePO4 cells and high-performance BMS to protect and manage the battery system. Offers wider usage and longer lifespan than traditional batteries.
Product Assembly Components
Part No. Part Name Description Quantity
1 Cell 27175200/3.2V105Ah 8
2 BMS Charging 100A, Discharging 100A 1
3 Wiring M8 200A Red & Black Pole 2
Technical Specifications
Typical Capacity 100Ah (0.2C discharge after full charge)
Minimum Capacity 98Ah (0.2C discharge after full charge)
Nominal Voltage 24V
Charge Voltage 29.2V±0.05V
Impedance 80mΩ (Max)
Charging Mode C.C/C.V.
Standard Charging Charging Current 20Ah
Fast Charging Charging Current 50Ah
Standard Charging Time 6.5 Hours
Fast Charging Time 2.6 Hours
Weight Approx 20Kg
Operating Temperature Charging: 0℃~45℃
Discharge: -10℃~+60℃
Storage Temperature -10℃-40℃ (Recommend 25±5℃)
Storage capacity should be 40%~50% full charge capacity
Appearance Without scratch, distortion, contamination and leakage
Overcharge Voltage 3.75±0.05V (Single Cell Monitoring)
Over Discharge Cut Off Voltage 2.2V±0.1V (Single Cell Monitoring)
Over Current 350-450A (Instantaneous Current)
Short Circuit External Short-circuit Protection (Self-recovery after Disconnection)
Operating Consumption Current 50uA (MAX)
NTC Resistor /
ESD Test ±4KV
Discharge Current ≤60A
Factory Voltage 12.8-13.6V
24V 100Ah Deep Cycle LiFePO4 Lithium Ion Battery Pack for Solar System
Applications
Toys, Home Appliances, Golf Carts, Electric Forklifts, Solar Energy Storage Systems, Electric Forklifts, RV Systems and more.
Battery Quality Features
  • Support OEM & ODM services
  • Higher energy density, more stable performance, greater power, and excellent 3% self-discharge rate
  • Built-in BMS (Battery Management System) prevents overcharging, over-discharging, over-current and short-circuiting
  • Built-in high/low temperature cut-off function for enhanced safety
  • Performs 6000+ cycles with design life over 10 years
