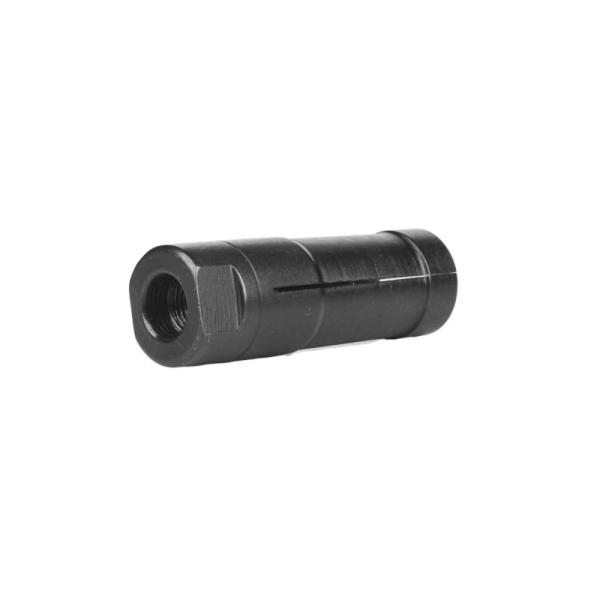

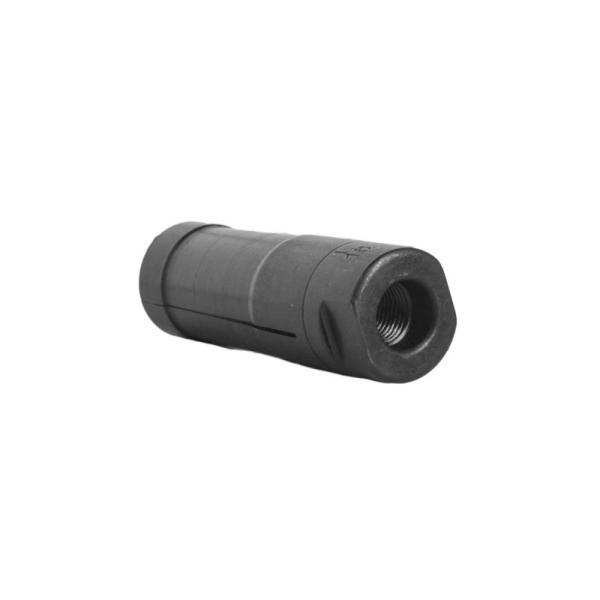

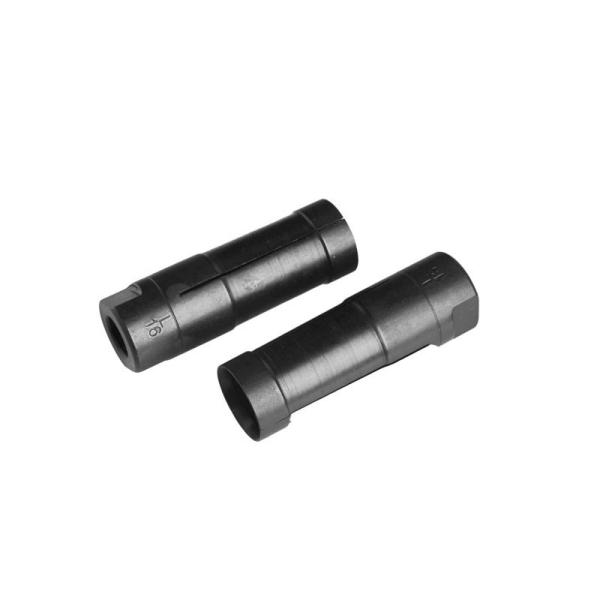

LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine
Specifications
Machines :
STAR, CITIZEN, TSUGAMI, NOMURA,TORNOS
Thread Gauge :
M4*0.7/ M4*0.5/ M5*0.8/ M6*0.75/ M7*0.75/ M8*1.0/ M9*1.0/ M10*1.0/ M17*1.0/ M25*1.5
Material :
Spring Steel
Application :
CNC Lathe
Brand :
LENS/ IEMCA/ TKURA/ PRO
Length :
45mm~98mm
Place of Origin :
Shenzhen.China
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

Swiss Lathe LENS Barfeed Collet M10P1.0 Standard Clamping Sleeve For Lathe Machine

Product Description:

LNS Finger Chuck/ Barfeed Collet

LENS Barfeed Swiss Lathe Collets M10P1.0 Standard Clamping Sleeve For Lathe Machine

Model ID OD L Tooth Gauge No.
4# 0.8~4.0mm 5mm 98mm M4P0.7 1
4-7# 0.8~4.0mm 7mm 98mm M4P0.7 2
4-7# 4.1~6.0mm 7mm 98mm M4P0.7 2
4-7# 2.0~5.5mm 7mm 98mm M4P0.7 2
4# 0.8~4.0mm 5mm 28mm M4P0.7 3
4-7# 1.5~6.0mm 7mm 28mm M4P0.7 4
7# 1.3~6.0mm 7mm 50mm M4P0.7 5
7# 1.3~6.5mm 8mm 50mm M4P0.7 5
7# 6.6~7.0mm 9mm 50mm M4P0.7 5
8.5# 1.5~7.8mm 9.5mm 45mm M5P0.8 6
8.5# 7.9~8.5mm 10mm 45mm M5P0.8 6
8.5# 3.0~10.5mm 12mm 45mm M5P0.8 7
8.5# 10.8~11.0mm 13mm 45mm M5P0.8 8
8.5# 11.5~12.0mm 14mm 45mm M5P0.8 8
8.5# 12.5~13.0mm 15mm 45mm M5P0.8 8
8.5# 13.5mm 15.5mm 45mm M5P0.8 8
20# 2.5~13.0mm 15mm 60mm M9P1.0 9
20# 11.5~15.1mm 18mm 60mm M9P1.0 10
20# 15.2~16.0mm 19mm 60mm M9P1.0 10
20# 16.5~18.0mm 20mm 60mm M9P1.0 10
20# 18.5~19.0mm 22mm 60mm M9P1.0 11
20# 19.5~21.0mm 24mm 60mm M9P1.0 11
20# 21.5~22.0mm 25mm 60mm M9P1.0 11
XT326 18.0~19.5mm 22mm 60mm M9P1.0 12
XT326 20.0~21.0mm 23mm 60mm M9P1.0 12
XT326 21.5~23.0mm 26mm 60mm M9P1.0 12
XT326 24.0~26.0mm 28mm 60mm M9P1.0 12
SN20# 3.0~18.0mm 20mm 60mm M10P1.0 13
SN25# 16.5~23.0mm 25mm 60mm M10P1.0 14
SN27# 16.5~25.0mm 27mm 60mm M10P1.0 14
SN32# 23.5~28.0mm 32mm 60mm M17P1.0 15
