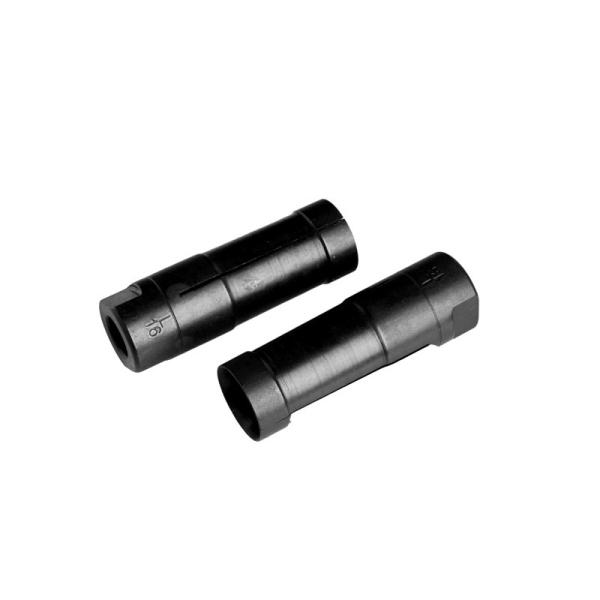

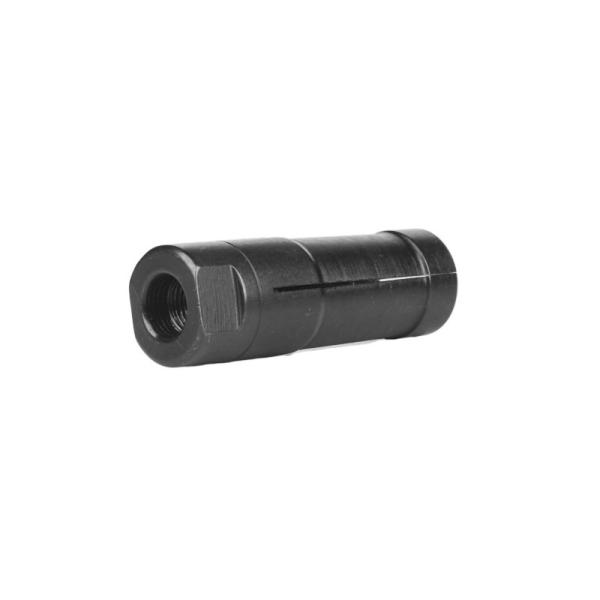

Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine
Specifications
Brand Name :
Inrover
Place of Origin :
China
Certification :
ISO
MOQ :
1pc
Packaging Details :
Plastic bags+ Export carton
Delivery Time :
3-7 days
Payment Terms :
T/T
Thread Gauge :
M4*0.7/ M4*0.5/ M5*0.8/ M6*0.75/ M7*0.75/ M8*1.0/ M9*1.0/ M10*1.0/ M17*1.0/ M25*1.5
Brand :
LENS/ IEMCA/ TKURA
Material :
Spring Steel
Application :
CNC Lathe Machine
Machines :
STAR, CITIZEN, TSUGAMI, NOMURA,TORNOS, Etc
Length :
37mm~98mm
Description

Standard Swiss-Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine

Product Description:

Swiss Lathe Bar Feeder Collets

Bar feeder collets are used on Automatic barfeeders made by Fedek, Iemca, Barload, Tornos etc.,

these bar feeders are mainly used on Swiss type CNC machines for feeding the rods.

The Barfeeder chuck (or) Finger Chuck is used to hold the end of the Raw material bar and rotates with it.

The rod is just pushed into the already crimped Barfeeder collet, and it holds the rods under spring tension.

Therefore, the mechanical springing quality is very important in the Bar feeder collets.

Technical Parameters:

Standard Swiss Style Lathe Bar Feeder Collets M7*0.75 For CNC Lathe Machine

Model Thread G Length (mm) D Clamping Diameter No.
4#-5 M4*0.7 98mm 5mm 0.8-4mm 1
5# M4*0.5 37mm 5mm 2-4mm 2
4#-7 M4*0.7 98mm 7mm 0.8-6mm 3
7.5# M5*0.8 40mm 7.5mm 2-6mm 4
10# M6*0.75 42mm 10mm 1.5-8.5mm 5
12# M7*0.75 42mm 12mm 1.5-10.5mm 6
15# M8*1.0 42mm 15mm 2-13mm 7
16# M8*1.0 42mm 16mm 12-14mm 8
20# M10*1.0 60mm 20mm 3-18mm 9

All above are standard in stock.

Applications:

Bar feeder collets are used on Automatic barfeeders made by Fedek, Iemca, Barload, Tornos etc.,

Customization:

Swiss Lathe Collets - Customized Solutions by Inrover
1. Provide drawing or sample to us
2. We will check drawing and sample to confirm production
3. Lead time: 7-15 days
