M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length
Specifications
Brand Name :
Inrover
Certification :
ISO
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Delivery Time :
3-7 days
Packaging Details :
Plastic bags+ Export carton
Thread Gauge :
M4*0.7/ M4*0.5/ M5*0.8/ M6*0.75/ M7*0.75/ M8*1.0/ M9*1.0/ M10*1.0/ M17*1.0/ M25*1.5
Brand :
LENS/ IEMCA/ TKURA
Material :
Spring Steel
Application :
CNC Lathe Machine
Machines :
STAR, CITIZEN, TSUGAMI, NOMURA,TORNOS, Etc
Length :
60mm~80mm
Description

M10*1.0 Right Thread Bar Feeder Collet Supplier China Leading Manufacturer

Product Description:

Swiss Lathe Bar Feeder Collets

Bar feeder collets are used on Automatic barfeeders made by Fedek, Iemca, Barload, Tornos etc.,

these bar feeders are mainly used on Swiss type CNC machines for feeding the rods.

The Barfeeder chuck (or) Finger Chuck is used to hold the end of the Raw material bar and rotates with it.

The rod is just pushed into the already crimped Barfeeder collet, and it holds the rods under spring tension.

Therefore, the mechanical springing quality is very important in the Bar feeder collets.

Technical Parameters:

M10*1.0 Right Thread Bar Feeder Collet 60mm~80mm Length

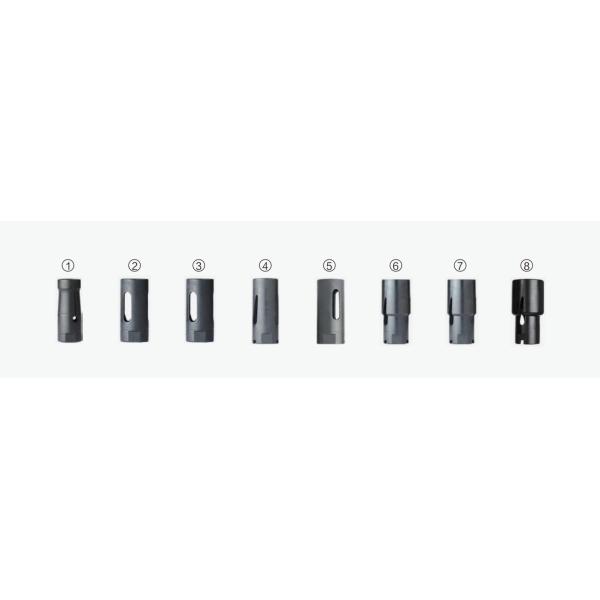

Model Thread G Length (mm) D Clamping Diameter No.
#23 M10*1.0 60mm 23mm 16-21mm 1
#25 M10*1.0 60mm 25mm 16.5-22mm 2
#27 M10*1.0 60mm 27mm 16.5-23mm 3
#32 M25*1.5 80mm 32mm 4-30mm 4
#35 M25*1.5 80mm 35mm 28.5-32mm 5
#37 M25*1.5 80mm 37mm 31-34mm 6
#38 M25*1.5 80mm 38mm 31-35mm 7
#40 M25*1.5 80mm 40mm 21-36.5mm 8

All above are standard in stock.

Applications:

Bar feeder collets are used on Automatic barfeeders made by Fedek, Iemca, Barload, Tornos etc.,

Customization:

Swiss Lathe Collets - Customized Solutions by Inrover
1. Provide drawing or sample to us
2. We will check drawing and sample to confirm production
3. Lead time: 7-15 days
