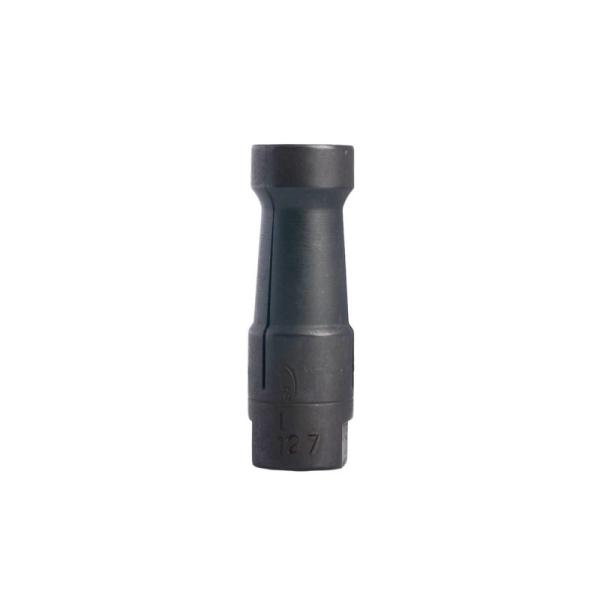

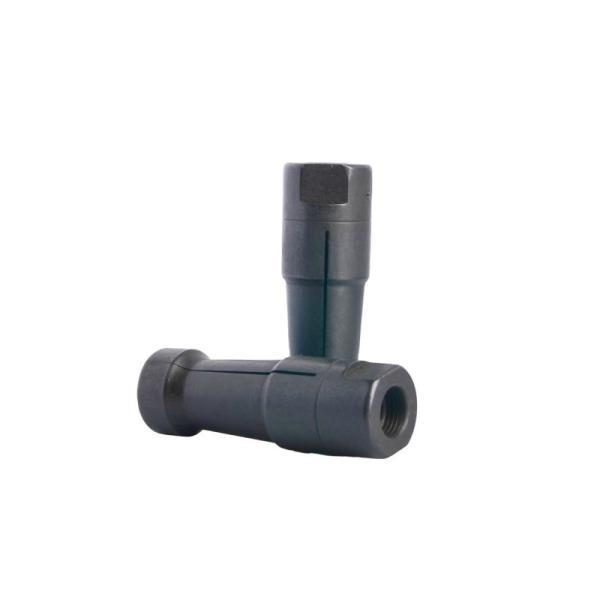

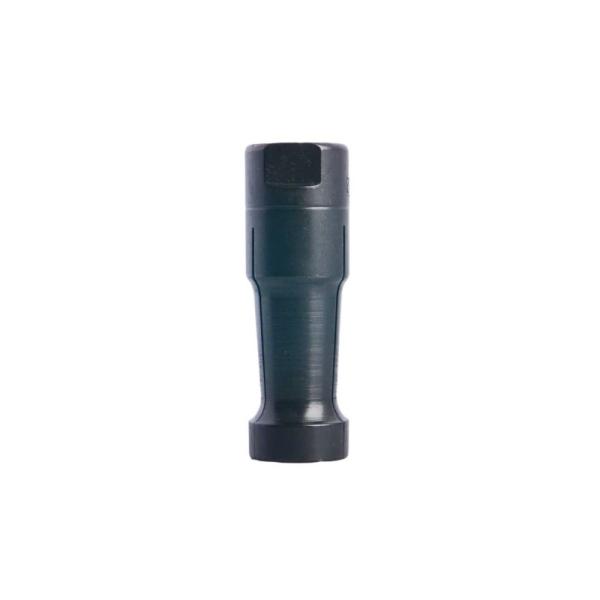

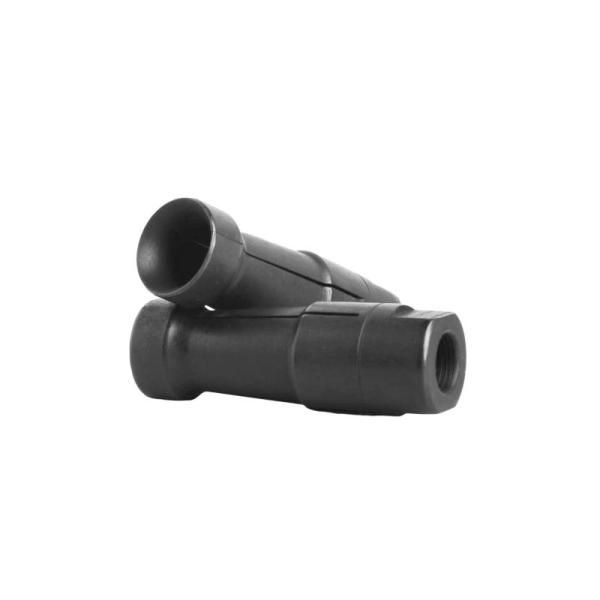

High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
High Performance Spring Lathe Finger Chuck M9×P1.0 For CNC Lathe
Specifications
Place of Origin :
Shenzhen.China
Machines :
STAR, CITIZEN, TSUGAMI, NOMURA,TORNOS
Thread Gauge :
M4*0.7/ M4*0.5/ M5*0.8/ M6*0.75/ M7*0.75/ M8*1.0/ M9*1.0/ M10*1.0/ M17*1.0/ M25*1.5
Material :
Spring Steel
Application :
CNC Lathe
Brand :
LENS/ IEMCA/ TKURA/ PRO
Length :
45mm~98mm
Brand Name :
Inrover
Certification :
ISO9001
MOQ :
5pcs
Price :
Please contact supplier
Packaging Details :
plastic box+cartons
Delivery Time :
7-10 days
Payment Terms :
T/T
Supply Ability :
30000/Month
Description

High-Performance Spring Lathe Finger Chuck M9*P1.0

Product Description:

LNS Finger Chuck/ Barfeed Collet

Model ID OD L Tooth Gauge No.
4# 0.8~4.0mm 5mm 98mm M4P0.7 1
4-7# 0.8~4.0mm 7mm 98mm M4P0.7 2
4-7# 4.1~6.0mm 7mm 98mm M4P0.7 2
4-7# 2.0~5.5mm 7mm 98mm M4P0.7 2
4# 0.8~4.0mm 5mm 28mm M4P0.7 3
4-7# 1.5~6.0mm 7mm 28mm M4P0.7 4
7# 1.3~6.0mm 7mm 50mm M4P0.7 5
7# 1.3~6.5mm 8mm 50mm M4P0.7 5
7# 6.6~7.0mm 9mm 50mm M4P0.7 5
8.5# 1.5~7.8mm 9.5mm 45mm M5P0.8 6
8.5# 7.9~8.5mm 10mm 45mm M5P0.8 6
8.5# 3.0~10.5mm 12mm 45mm M5P0.8 7
8.5# 10.8~11.0mm 13mm 45mm M5P0.8 8
8.5# 11.5~12.0mm 14mm 45mm M5P0.8 8
8.5# 12.5~13.0mm 15mm 45mm M5P0.8 8
8.5# 13.5mm 15.5mm 45mm M5P0.8 8
20# 2.5~13.0mm 15mm 60mm M9P1.0 9
20# 11.5~15.1mm 18mm 60mm M9P1.0 10
20# 15.2~16.0mm 19mm 60mm M9P1.0 10
20# 16.5~18.0mm 20mm 60mm M9P1.0 10
20# 18.5~19.0mm 22mm 60mm M9P1.0 11
20# 19.5~21.0mm 24mm 60mm M9P1.0 11
20# 21.5~22.0mm 25mm 60mm M9P1.0 11
XT326 18.0~19.5mm 22mm 60mm M9P1.0 12
XT326 20.0~21.0mm 23mm 60mm M9P1.0 12
XT326 21.5~23.0mm 26mm 60mm M9P1.0 12
XT326 24.0~26.0mm 28mm 60mm M9P1.0 12
SN20# 3.0~18.0mm 20mm 60mm M10P1.0 13
SN25# 16.5~23.0mm 25mm 60mm M10P1.0 14
SN27# 16.5~25.0mm 27mm 60mm M10P1.0 14
SN32# 23.5~28.0mm 32mm 60mm M17P1.0 15
