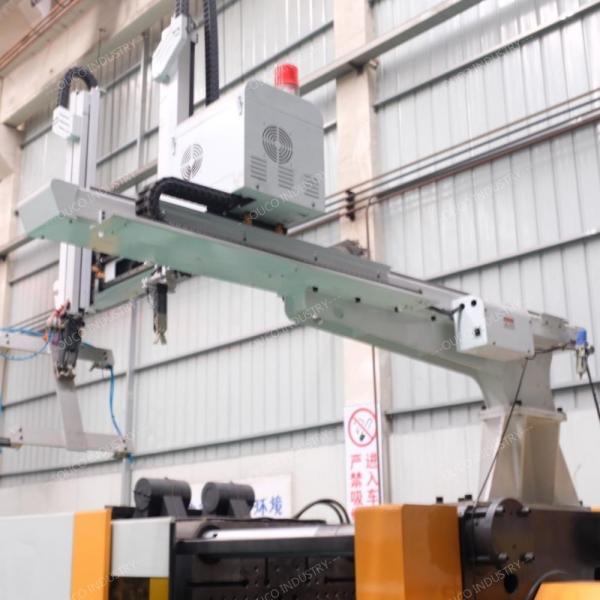

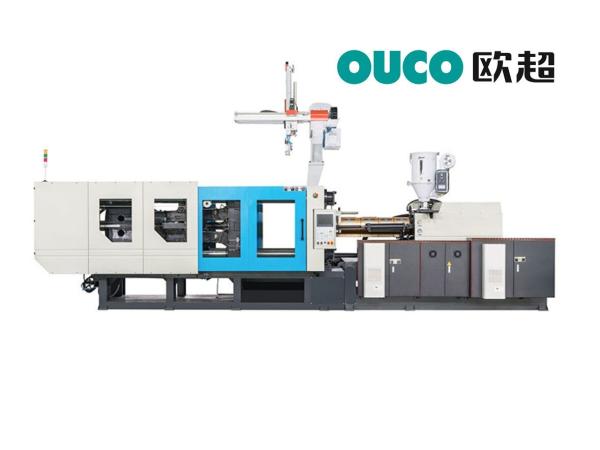

TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm
Specifications
Brand Name :
OUCO
Model Number :
OUCO-200T
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2500 Set/Sets per Year
Delivery Time :
35 work days
Product Name :
200 T China Injection Moulding Machine with Robot Arm
Automatic :
Yes
Opening Stroke: :
Horizontal
Certification: :
ISO9001:2008,CE,TUV
Power :
42-72kW
Machinery Test Report: :
Provided
Injection Rate :
165mm/s
Description

210 T China Injection Moulding Machine with Robot Arm
Essential details:

Condition:New Style:Horizontal

Clamping Force:1122KN Type:Preform Injection

Injection Rate:675-1008cm3 Injection Weight:2926-4372g

Power: 42-72kW Certification: ISO9001:2008,CE,TUV

After-sales Service Provided:
Engineers available to service machinery overseas

Name: two platen Injection Plastic Machine

Product name: Injection Plastic Machine

Plastic Type: Thermoplastic Automatic:Yes

CWI-2100S Ⅲ
机型 2100S Ⅲ
合模装置 锁模力 Kn Clamping Force 21000
拉杆间距 mm Space Between Tie-bars 1800×1600
开模最大开距 mm Clamping Stroke 3700
最大模具 mm Mould Thickness Max 1700
最小模具 mm Mould Thickness Min 800
模板尺寸 mm Size of Platen 2620×2420
顶出长度 mm Ejector Stroke 400
顶出力 Kn Ejector Force 406
顶针数 Ejector Quantily 33
注塑装置 射胶配置 Injection Equipment 18000I 30000I
螺杆直径 mm Screw Diameter 130 140 150 150 160 170
螺杆长径比 Screw L/D ratio 22.6 21 19.6 22.4 21 19.8
理论射胶容积 cm3 Shot Size 8821 10231 11744 15890 18080 20410
实际射胶量 (PS)g Shot Weight 8027 9310 10687 14619 16634 18777
oz 286.3 332.0 381.0 515.9 586.9 662.6
射胶压力 MP Injection Pressure 203 175 152 193 176 150
注射速率 mm/s Injection Rate 1034.0 1513.0 1737.0 1364.0 1533.0 1753.0
射胶速度 cm3/s Injection Speed 98 77
螺杆转速 g/s Screw Speed 10~166 10~100
塑化能力 rpm Plasticising Capacity 143.0 152.0 166.0 160.0 184.0 205.0
电力及其他 油箱容积 L Oil Tank Capacity 2000
电热功率 Kw Heater Power 100 120
电热区数 L Team Control zone 5+1
系统压力 MPa System Pressure Max 16
油泵输量 L/min Pump Output 1000
电机功率 Kw Servo Power 50+50+50+50+7.5
机器净重 ton Machine Weight 110
机器尺寸(长×宽×高) mm Machine Dimension 14500×4200×3530

Two platen Injection Plastic Machine

Two platen design, super open stroke.

Electrical clamp fast movement driven by servo motor and ball screw spindle, shorter cycle time, more precise.

High stiffness platen support, bigger mold weight capacity.

Pressure build- up in 4 cylinder synchronously, more even clamp force, longer service life.

Fast mold change, shorter tie- bar, easy to add additional device of tie- bar puller.

Less moving compoment, less lubrication point, less maintenance cost.

Excellence KEBA controller, touch screen, easy operation, stable and reliable.

TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm

TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm

TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm

TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm

Main Features

BL DK two platen machine, develop by German expert team, with European advanced technology, focus on automotive

and home appliances, offering high precision and high stability injection molding solutions for customers.

OUCO center clamping structure

100% clamping force use.

Less possibility of flash, save flash trim work.

Save 2% - 5% material.

Offer good protection to mould, platens and tie bars.

Opening stroke 10 - 20% longer.

Traditional structure

With heavy clamping force waste, only 80 - 85% efficiency.

Moving platen with obvious deformation, cause flashes, wsaste of material and labor of trim the flashes.

Our Service
TUV Horizontal 200 Ton Injection Molding Machine With Robot Arm

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
